Power Capacitors
1 Series · 17 Models

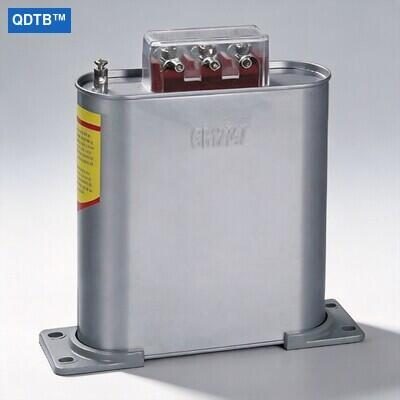

Product Images
Images are for illustration purposes only
Power Capacitors Overview
Self-healing power capacitors provide power factor correction by offsetting the reactive power drawn by motors, transformers, and other inductive loads. QDTB units use metallized film technology rated 0.40-1.0 kV from 1 kVar to 50 kVar at 50/60 Hz. The BSMJ series (PP film, oil-immersed) and BCMJ series self-heal on dielectric breakdown, improving safety and service life while reducing losses, improving efficiency, and avoiding utility power factor penalties.
Instant Selection & Quote Calculator
Select your specifications to get an estimated price instantly.
More options(5)
Certification
Reference prices are for estimation only and do not constitute a formal offer.
3 · Get this quote
We will reply with your latest quote instantly.
Related Engineering Calculators
Free sizing and pricing tools for this product category.
Application Scenarios
Power Factor Correction
Compensates reactive power to avoid utility penalties and improve efficiency.
Industrial Plants
Local compensation for motors, transformers and welding equipment.
Commercial Buildings
Keeps power factor within utility requirements for large facilities.
Distribution Substations
Bulk reactive compensation on LV distribution networks.
Motor Compensation
Individual or group correction to reduce line current and losses.
Renewable Energy
Reactive support for solar and wind installations.
Technical Advantages
Self-Healing
Metalized film technology self-repairs dielectric breakdown for safety and longevity.
Low Loss
Low dielectric losses keep running costs down.
Built-In Safety
Internal discharge resistors and over-pressure protection.
Long Service Life
Robust construction rated for years of continuous operation.
FAQ - Power Capacitors
What is power factor correction?
How do I choose the kvar rating?
Are power capacitors safe?
What is the minimum order quantity (MOQ) for Power Capacitors?
What is the delivery time for Power Capacitors?
Which standards and certifications do your Power Capacitors comply with?
Related Product Categories
Dry Type Transformers
Dry-type transformers are essential components in modern ele
Oil Immersed Transformers
Oil-immersed transformers are the workhorse of power distrib
Special Isolation Control Transformers
Isolation and control transformers provide galvanic separati
Amorphous Alloy Transformers
Amorphous alloy transformers are the lowest-loss choice for
Box Type Substations
Box-type substations, also known as prefabricated substation
Reactors
Reactors are inductive components that shape power quality b
Cable Branch Boxes
Cable branch boxes are sealed distribution points that split
Ring Main Units
Ring main units (RMUs) are compact, sealed switchgear that f
High Voltage Switchgear
High-voltage switchgear performs switching, protection, and
Low Voltage Switchgear
Low-voltage switchgear and motor control centers (MCCs) deli
Single Phase Transformers
Single-phase control transformers provide galvanic isolation
Three Phase Transformers
Three-phase dry-type transformers step down, isolate, or ada
Voltage Regulators
Automatic voltage regulators (stabilizers) keep output volta
Variable Transformers
Variable auto-transformers deliver continuous, stepless AC v
Inverters
Pure sine wave inverters convert DC battery power (12 V/24 V
Dc Power Supplies
Switching DC power supplies convert AC mains into regulated
Battery Chargers
Intelligent battery chargers restore and maintain lead-acid
Motor Starters
Motor starters control three-phase motor energization with r
Ups
Online double-conversion UPS systems continuously regenerate
Solar Pv Modules
Solar PV modules convert sunlight into direct current and ar
String Inverters
String grid-tie inverters turn the DC output of PV modules i
Hybrid Inverters
Hybrid solar inverters combine a grid-tie inverter and a bat
Energy Storage Batteries
Energy storage batteries store surplus solar or off-peak pow
Pcs Energy Storage
Power conversion systems (PCS) are the bidirectional heart o
Battery Management Systems
The battery management system is the safety and intelligence
Ess Fire Suppression
Fire suppression for energy storage must act in the seconds
Pv Mounting Structures
Mounting structures hold the array to the roof or ground for
Dc Cables Connectors Spd
The DC side of a PV plant is only as reliable as the cables,
Monitoring Scada Communication
A solar or storage plant that cannot be observed and control
Cables Trays Grounding
The AC side and the structural grounding of a plant are easy
Energy Storage Containers
The energy storage container packages battery, power convers
Busway
Busway (bus duct) systems distribute high-current power from
Ev Charging Stations
EV charging stations supply electric vehicles with AC Level
Pole Mounted Switchgear
Pole-mounted switchgear provides outdoor switching, protecti
Svg Svc
Static Var Generator (SVG) and Static Var Compensator (SVC)
Active Harmonic Filters
Active Harmonic Filters (APF), also called active power filt
Ats Transfer Switches
Automatic Transfer Switches (ATS) automatically transfer the
Diesel Generators
Diesel generator sets provide reliable prime or standby powe
Eps Emergency Power
EPS (Emergency Power Supply) systems provide battery-backed
Wind Turbines
QDTB onshore wind turbines span the 2 MW, 3 MW and 5 MW clas
Scada Automation
Substation SCADA and secondary automation equipment for MV/L
American Pad Mounted Transformers
American pad-mounted transformers (ZGS series) place a 12 kV
Need help?
All specifications and dimensions can be customized upon request
Oil-Immersed vs Self-Healing vs Detuned Bank: How to Choose
| Oil-Immersed PP Film (BSMJ) | Self-Healing Film (BCMJ) | Bank with Detuning Reactor | |
|---|---|---|---|
| Construction | Metallized polypropylene film in an oil-filled can | Metallized film in a dry or gas-filled case | Standard capacitor units in series with a reactor |
| Failure behaviour | Internal fuse and overpressure disconnector clear a failed element | Film self-heals at the breakdown point and keeps working | Film self-heals, and the reactor keeps harmonics out |
| Harmonic tolerance | Limited — a harmonic-rich bus heats the dielectric | Slightly better, but still a plain capacitor | Designed for the harmonic load, with the bank detuned |
| Installation | Rack or cabinet mounting with ventilation | Compact units for panel or cubicle mounting | Needs panel space for both capacitor and reactor |
| Service life | Long, provided the ambient and voltage stay in range | Long, with self-healing covering minor breakdowns | Longest where harmonics would otherwise age the bank |
| Cost | Baseline | Similar to oil-immersed at the same rating | Highest, because the reactor is added |
| Typical application | Distribution substations and motor compensation | Commercial buildings and small plants | Plants with drives and rectifiers on the same bus |
Where QDTB® Power Capacitors Are Specified
Power capacitors are specified wherever motors, transformers and other inductive loads have left the power factor below the level the utility charges for: industrial plants, commercial buildings and distribution substations. The bank offsets the reactive demand locally, which frees feeder and transformer capacity and removes the penalty from the bill.
Motor compensation uses smaller units close to the load, while a central bank at the main board handles the plant total. The kvar rating is set from the measured power factor and reactive demand rather than from a rule of thumb, because an oversized bank over-compensates and an undersized one still pays the penalty.
Where drives, rectifiers or welding equipment share the bus, the capacitors go in behind a detuning reactor, otherwise the harmonic current overheats the dielectric and the bank fails early. Self-healing film construction covers the minor breakdowns that would otherwise end a plain capacitor's life.
Units are rated 0.40-1.0 kV from 1 kVar to 50 kVar at 50/60 Hz and built to GB/T 12747.1. Internal discharge resistors bring the terminals down to a safe voltage once the bank has been isolated.
Frequently Asked Questions
What is power factor correction?
It adds capacitance to offset inductive reactive power from motors and transformers, reducing line current, losses and utility penalties.
How do I choose the kvar rating?
Measure the load's power factor and reactive demand, then select capacitors to bring power factor to the target (typically 0.95).
Are power capacitors safe?
Yes. Self-healing metalized film and internal discharge resistors prevent dangerous failures, unlike older oil-filled types.
What is the minimum order quantity (MOQ) for Power Capacitors?
One unit for standard products. Custom-designed equipment is quoted on specifications — send your parameters or drawings and our sales team will confirm the MOQ for your configuration.
What is the delivery time for Power Capacitors?
Standard units are delivered in 30-45 days. Custom or large-capacity units follow a project-specific schedule confirmed at quotation. Rush orders can be accommodated for urgent projects.
Which standards and certifications do your Power Capacitors comply with?
They are designed and tested to GB/T 12747.1. All QDTB® equipment is ISO 9001 certified and CE marked, and the company operates ISO 9001, ISO 14001 and ISO 45001 management systems.
