Busway (Bus Duct)
4 Series · 27 Models
Product Images
Images are for illustration purposes only
Busway (Bus Duct) Overview
Busway (bus duct) systems distribute high-current power from transformers and switchgear to loads using compact, low-impedance busbar construction. QDTB offers dense (sandwich), air-insulated and fire-resistant busway rated 250–6300 A at 380/400/690 V, with copper or aluminum conductors and plug-in tap-off units, for data centers, industrial plants and commercial buildings.
Available Series

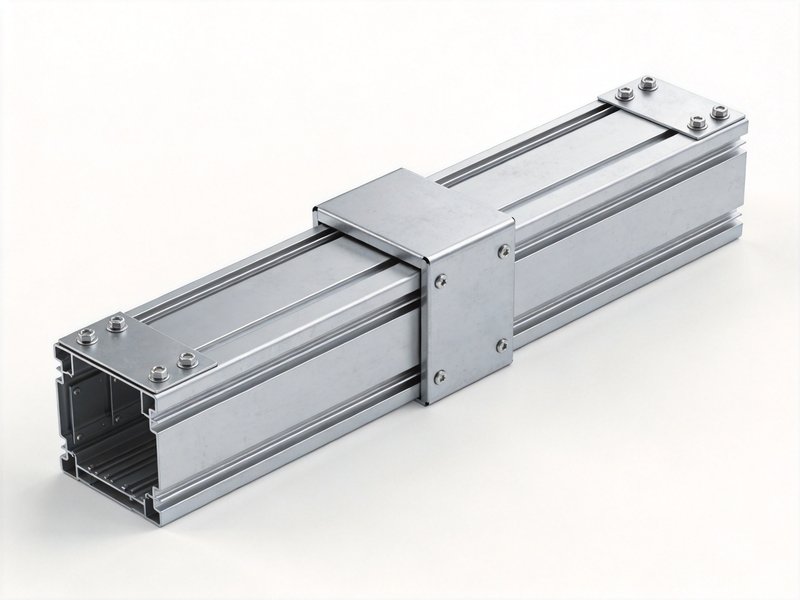

Dense Busway Series
Dense (sandwich-type) busway distributes high-current power from transformers and switchgear to loads with compact, low-impedance busbar construction. Rated 250–6300 A, 380V/400V/690V, with copper or aluminum conductors, insulated busbars in a compact housing, and plug-in tap-off units for flexible load connection in data centers and industrial plants.

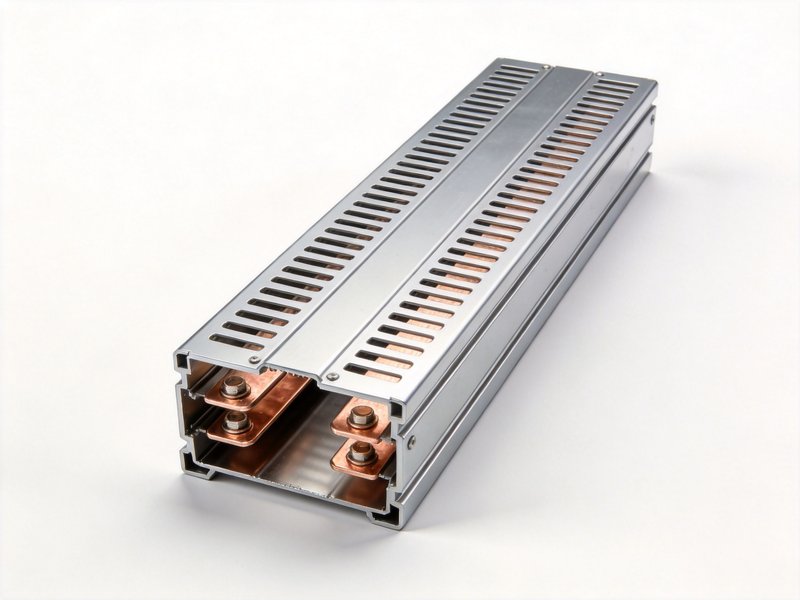

Air-Insulated Busway Series
Air-insulated (air-type) busway uses busbars separated by air gaps within a ventilated or non-ventilated enclosure, providing high short-circuit withstand and ease of inspection. Rated 250–6300 A, 380/400/690V, suitable for industrial power distribution where ventilation and simple maintenance are preferred over compact dense construction.

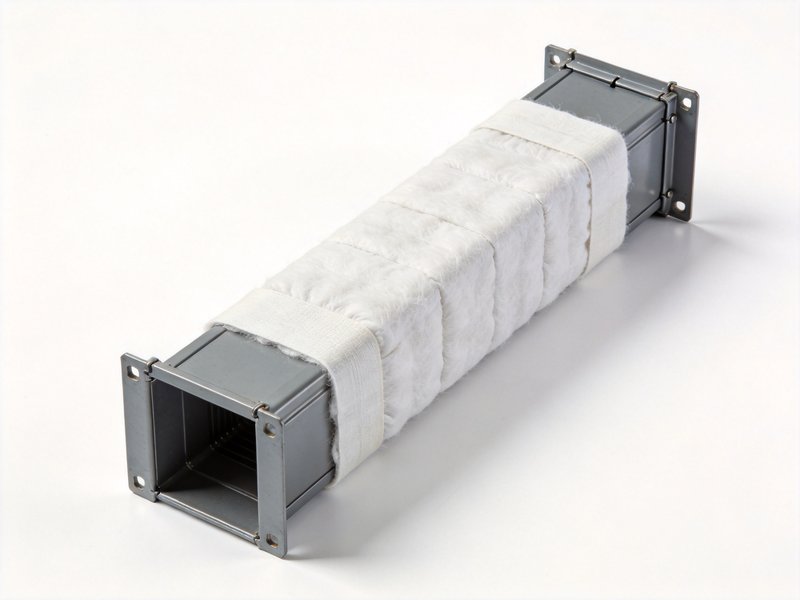

Fire-Resistant Busway Series
Fire-resistant (fire-rated) busway maintains circuit integrity under fire for emergency power supply to fire pumps, smoke exhaust and life-safety loads. Rated 250–4000 A, 380/400V, with fire-resistant insulation and mineral/mica barriers, built to JB/T 10327 fire-resistant busway requirements for building emergency distribution.

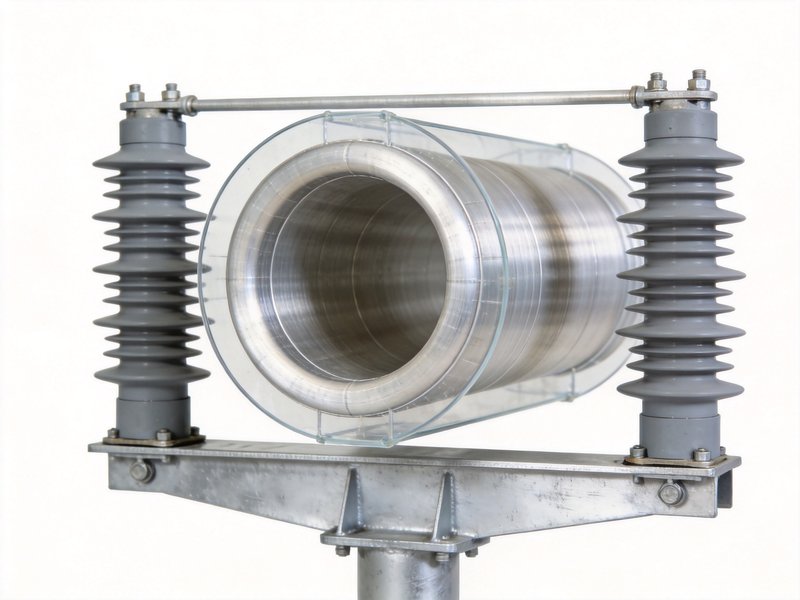

HV Enclosed Busbar Series
High-voltage enclosed busbar (isolated phase bus duct) connects generators, transformers and switchgear at 10–35 kV, with each phase enclosed in its own grounded metal housing for safety and low field emissions. Rated 10–35 kV, 1000–8000 A, for power plants and large substations.
Instant Selection & Quote Calculator
Select your specifications to get an estimated price instantly.
More options(3)
Certification
Reference prices are for estimation only and do not constitute a formal offer.
3 · Get this quote
We will reply with your latest quote instantly.
Related Engineering Calculators
Free sizing and pricing tools for this product category.
Application Scenarios
Data Centers & Server Halls
High-current distribution with plug-in taps for server racks and power modules.
Industrial Plants
Feeds process lines and machinery with low voltage-drop busbar.
High-Rise Buildings
Vertical risers carrying power to floors and tenants.
Transformer-to-Switchgear Feeders
Connects transformers to low-voltage switchgear with minimal footprint.
Technical Advantages
Dense (Sandwich) Construction
Tightly stacked busbars for low impedance and low voltage drop.
Fire-Resistant Option
Mineral/mica barriers maintain circuit integrity under fire for life-safety loads.
Plug-In Tap-Off Units
Loads can be added or moved without de-energizing the main bus.
Copper or Aluminum
Conductor material selected for conductivity or cost.
FAQ - Busway (Bus Duct)
What is dense busway?
How are loads tapped from busway?
What is the typical current range?
What capacity and voltage range is available for Busway (Bus Duct)?
What is the minimum order quantity (MOQ) for Busway (Bus Duct)?
What is the delivery time for Busway (Bus Duct)?
Related Product Categories
Dry Type Transformers
Dry-type transformers are essential components in modern ele
Oil Immersed Transformers
Oil-immersed transformers are the workhorse of power distrib
Special Isolation Control Transformers
Isolation and control transformers provide galvanic separati
Amorphous Alloy Transformers
Amorphous alloy transformers are the lowest-loss choice for
Box Type Substations
Box-type substations, also known as prefabricated substation
Reactors
Reactors are inductive components that shape power quality b
Cable Branch Boxes
Cable branch boxes are sealed distribution points that split
Ring Main Units
Ring main units (RMUs) are compact, sealed switchgear that f
High Voltage Switchgear
High-voltage switchgear performs switching, protection, and
Low Voltage Switchgear
Low-voltage switchgear and motor control centers (MCCs) deli
Single Phase Transformers
Single-phase control transformers provide galvanic isolation
Three Phase Transformers
Three-phase dry-type transformers step down, isolate, or ada
Voltage Regulators
Automatic voltage regulators (stabilizers) keep output volta
Variable Transformers
Variable auto-transformers deliver continuous, stepless AC v
Inverters
Pure sine wave inverters convert DC battery power (12 V/24 V
Dc Power Supplies
Switching DC power supplies convert AC mains into regulated
Battery Chargers
Intelligent battery chargers restore and maintain lead-acid
Motor Starters
Motor starters control three-phase motor energization with r
Ups
Online double-conversion UPS systems continuously regenerate
Power Capacitors
Self-healing power capacitors provide power factor correctio
Solar Pv Modules
Solar PV modules convert sunlight into direct current and ar
String Inverters
String grid-tie inverters turn the DC output of PV modules i
Hybrid Inverters
Hybrid solar inverters combine a grid-tie inverter and a bat
Energy Storage Batteries
Energy storage batteries store surplus solar or off-peak pow
Pcs Energy Storage
Power conversion systems (PCS) are the bidirectional heart o
Battery Management Systems
The battery management system is the safety and intelligence
Ess Fire Suppression
Fire suppression for energy storage must act in the seconds
Pv Mounting Structures
Mounting structures hold the array to the roof or ground for
Dc Cables Connectors Spd
The DC side of a PV plant is only as reliable as the cables,
Monitoring Scada Communication
A solar or storage plant that cannot be observed and control
Cables Trays Grounding
The AC side and the structural grounding of a plant are easy
Energy Storage Containers
The energy storage container packages battery, power convers
Ev Charging Stations
EV charging stations supply electric vehicles with AC Level
Pole Mounted Switchgear
Pole-mounted switchgear provides outdoor switching, protecti
Svg Svc
Static Var Generator (SVG) and Static Var Compensator (SVC)
Active Harmonic Filters
Active Harmonic Filters (APF), also called active power filt
Ats Transfer Switches
Automatic Transfer Switches (ATS) automatically transfer the
Diesel Generators
Diesel generator sets provide reliable prime or standby powe
Eps Emergency Power
EPS (Emergency Power Supply) systems provide battery-backed
Wind Turbines
QDTB onshore wind turbines span the 2 MW, 3 MW and 5 MW clas
Scada Automation
Substation SCADA and secondary automation equipment for MV/L
American Pad Mounted Transformers
American pad-mounted transformers (ZGS series) place a 12 kV
Need help?
All specifications and dimensions can be customized upon request
Dense vs Air-Insulated vs Fire-Resistant Busway: How to Choose
| Dense Sandwich Busway | Air-Insulated Busway | Fire-Resistant Busway | |
|---|---|---|---|
| Construction | Phase conductors stacked with thin insulation between them | Bars held apart by air clearance inside a housing | Insulated bars in a fire-rated enclosure |
| Impedance | Lowest, because the phases sit close together | Higher, since the air gap sets the reactance | Between the two, set by the insulation system |
| Heat dissipation | Conductor heat passes through the sandwich to the housing | Air circulates around the bars | Limited by the fire-rated enclosure |
| Fire performance | Standard housing, protected by the building's own measures | Standard housing, with air as the dielectric | Rated to hold the circuit through a fire for a defined period |
| Tap-off | Plug-in units at fixed intervals | Plug-in or bolted tap-off units | Tap-off limited by the fire-rated construction |
| Cost | Highest per metre | Lowest per metre | Highest of the three, because of the enclosure |
| Typical application | Data centres and high-current risers | Industrial plants and long feeder runs | Life-safety circuits and evacuation routes |
Where QDTB® Busway Systems Are Specified
Busway is specified where a high current has to travel a long way through a building or a plant without a bundle of parallel cables: the feeder from a transformer to the main switchboard, the riser in a high-rise, and the overhead distribution in a data hall. The busbar replaces cable with a factory-built, low-impedance conductor that is faster to install and easier to extend.
Data centres and server halls choose dense busway because the tap-off units can be added or moved without rewiring the hall, which is what allows a row of racks to be re-laid out between equipment generations. Industrial plants use the same system for long feeder runs where a cable bundle would need a large tray and a grouping derating.
Fire-resistant busway is specified on life-safety circuits and evacuation routes, where the circuit has to keep working while the building is being evacuated. That duty is set by the fire-rated enclosure rather than by the conductor, so it is selected against the fire strategy and not against the load alone.
Systems are rated 250-6300 A at 380/400/690 V with copper or aluminium conductors, to IEC 61439-6. High-voltage enclosed busbar is available to IEC 62271-200 practice where the run leaves the low-voltage board.
Frequently Asked Questions
What is dense busway?
Dense (sandwich) busway stacks phase conductors with thin insulation for compact, low-impedance high-current distribution.
How are loads tapped from busway?
Plug-in tap-off units insert at intervals along the run, allowing loads to be added without de-energizing the bus.
What is the typical current range?
250–6300 A for low-voltage distribution, with higher ratings available on request.
What capacity and voltage range is available for Busway (Bus Duct)?
QDTB® supplies Busway (Bus Duct) from 250 to 6,300 A, with voltage ratings from 0.4 kV to 10 kV.
What is the minimum order quantity (MOQ) for Busway (Bus Duct)?
One unit for standard products. Custom-designed equipment is quoted on specifications — send your parameters or drawings and our sales team will confirm the MOQ for your configuration.
What is the delivery time for Busway (Bus Duct)?
Standard units are delivered in 30-45 days. Custom or large-capacity units follow a project-specific schedule confirmed at quotation. Rush orders can be accommodated for urgent projects.
