Active Harmonic Filters
2 Series · 10 Models
Product Images
Images are for illustration purposes only
Active Harmonic Filters Overview
Active Harmonic Filters (APF), also called active power filters, measure the load current and inject an equal-and-opposite current to cancel harmonics at the point of common coupling. QDTB APF systems are rated 50–300 A at 400 V or 690 V and reduce total harmonic current distortion (THDi) to below 5%, protecting transformers, cables and capacitor banks while improving power quality and power factor.
Available Series

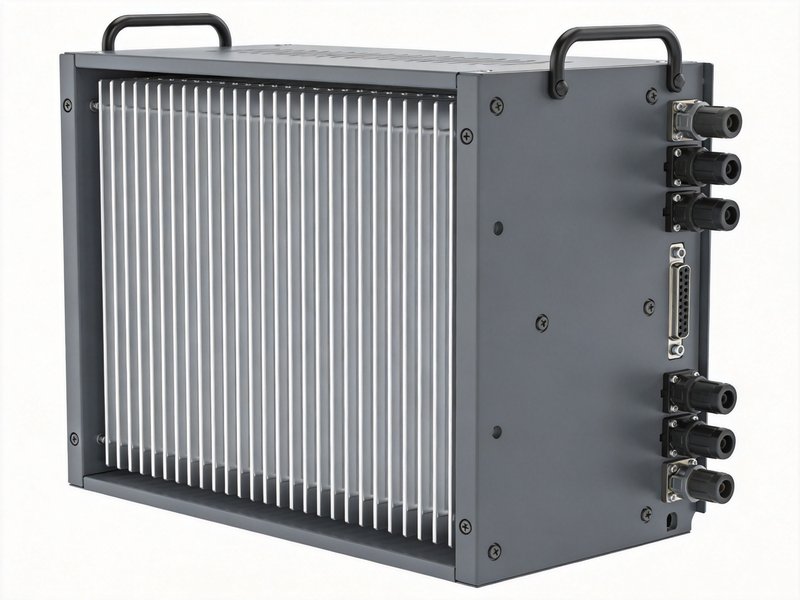

Modular APF Series
The modular active power filter (APF) uses rack-mounted power modules that can be paralleled to build the required compensation current. Rated 100–300 A per module at 400 V or 690 V, it measures the load current and injects a phase-opposite current to cancel harmonics, reducing total harmonic current distortion (THDi) to below 5% and improving power factor at the point of common coupling.

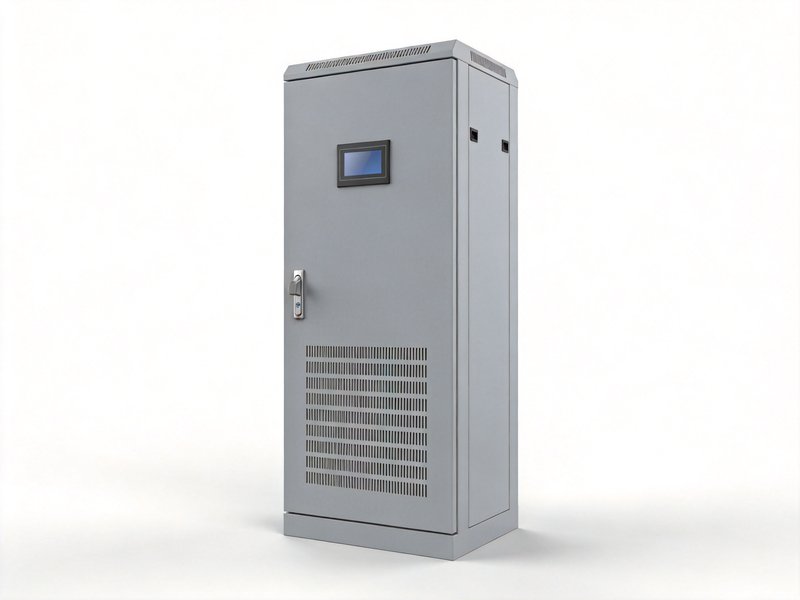

Cabinet APF Series
The cabinet active power filter (APF) packages the full compensation rating in a single floor-standing enclosure for central installation at a main switchboard or PCC. Rated 100–300 A at 400 V or 690 V, it cancels harmonics, reduces THDi to below 5%, corrects power factor and relieves transformers and cables of harmonic loading.
Instant Selection & Quote Calculator
Select your specifications to get an estimated price instantly.
More options(5)
Certification
Reference prices are for estimation only and do not constitute a formal offer.
3 · Get this quote
We will reply with your latest quote instantly.
Related Engineering Calculators
Free sizing and pricing tools for this product category.
Application Scenarios
Data Centers
Mitigates harmonics from UPS and switch-mode power supplies to protect transformers and switchgear.
Industrial VFD Loads
Cancels harmonics from variable frequency drives, welders and rectifiers.
Commercial Buildings
Improves power quality for LED lighting, HVAC and lift drives.
Water & Pumping Stations
Contains harmonics from soft-starters and pump VFDs.
Technical Advantages
THDi < 5%
Closed-loop cancellation reduces total harmonic current distortion to below 5%.
Modular & Cabinet Options
Rack-mounted modules for scalability or single floor-standing cabinets.
50–300 A Ratings
Sized for individual circuits up to central main-switchboard compensation.
400 V / 690 V Systems
Low-voltage design for industrial and commercial distribution.
FAQ - Active Harmonic Filters
How does an active harmonic filter work?
What harmonics can an APF compensate?
Is an APF the same as a capacitor bank?
How do I size an active harmonic filter?
What capacity and voltage range is available for Active Harmonic Filters?
What is the minimum order quantity (MOQ) for Active Harmonic Filters?
Related Product Categories
Dry Type Transformers
Dry-type transformers are essential components in modern ele
Oil Immersed Transformers
Oil-immersed transformers are the workhorse of power distrib
Special Isolation Control Transformers
Isolation and control transformers provide galvanic separati
Amorphous Alloy Transformers
Amorphous alloy transformers are the lowest-loss choice for
Box Type Substations
Box-type substations, also known as prefabricated substation
Reactors
Reactors are inductive components that shape power quality b
Cable Branch Boxes
Cable branch boxes are sealed distribution points that split
Ring Main Units
Ring main units (RMUs) are compact, sealed switchgear that f
High Voltage Switchgear
High-voltage switchgear performs switching, protection, and
Low Voltage Switchgear
Low-voltage switchgear and motor control centers (MCCs) deli
Single Phase Transformers
Single-phase control transformers provide galvanic isolation
Three Phase Transformers
Three-phase dry-type transformers step down, isolate, or ada
Voltage Regulators
Automatic voltage regulators (stabilizers) keep output volta
Variable Transformers
Variable auto-transformers deliver continuous, stepless AC v
Inverters
Pure sine wave inverters convert DC battery power (12 V/24 V
Dc Power Supplies
Switching DC power supplies convert AC mains into regulated
Battery Chargers
Intelligent battery chargers restore and maintain lead-acid
Motor Starters
Motor starters control three-phase motor energization with r
Ups
Online double-conversion UPS systems continuously regenerate
Power Capacitors
Self-healing power capacitors provide power factor correctio
Solar Pv Modules
Solar PV modules convert sunlight into direct current and ar
String Inverters
String grid-tie inverters turn the DC output of PV modules i
Hybrid Inverters
Hybrid solar inverters combine a grid-tie inverter and a bat
Energy Storage Batteries
Energy storage batteries store surplus solar or off-peak pow
Pcs Energy Storage
Power conversion systems (PCS) are the bidirectional heart o
Battery Management Systems
The battery management system is the safety and intelligence
Ess Fire Suppression
Fire suppression for energy storage must act in the seconds
Pv Mounting Structures
Mounting structures hold the array to the roof or ground for
Dc Cables Connectors Spd
The DC side of a PV plant is only as reliable as the cables,
Monitoring Scada Communication
A solar or storage plant that cannot be observed and control
Cables Trays Grounding
The AC side and the structural grounding of a plant are easy
Energy Storage Containers
The energy storage container packages battery, power convers
Busway
Busway (bus duct) systems distribute high-current power from
Ev Charging Stations
EV charging stations supply electric vehicles with AC Level
Pole Mounted Switchgear
Pole-mounted switchgear provides outdoor switching, protecti
Svg Svc
Static Var Generator (SVG) and Static Var Compensator (SVC)
Ats Transfer Switches
Automatic Transfer Switches (ATS) automatically transfer the
Diesel Generators
Diesel generator sets provide reliable prime or standby powe
Eps Emergency Power
EPS (Emergency Power Supply) systems provide battery-backed
Wind Turbines
QDTB onshore wind turbines span the 2 MW, 3 MW and 5 MW clas
Scada Automation
Substation SCADA and secondary automation equipment for MV/L
American Pad Mounted Transformers
American pad-mounted transformers (ZGS series) place a 12 kV
Related Solutions
Need help?
All specifications and dimensions can be customized upon request
Active Filter vs Detuned Bank vs Passive Filter: How to Choose
| Active Harmonic Filter (APF) | Detuned Capacitor Bank | Passive Filter | |
|---|---|---|---|
| Principle | Measures the load current and injects an equal and opposite harmonic current | Reacts to the dominant harmonic through a reactor and capacitor | Tunes an LC branch to absorb one harmonic order |
| Harmonic orders | Compensates the orders present, with selectable priority | Addresses the tuning order only | One branch per order, so several branches are needed |
| Response | Follows a changing load within milliseconds | Fixed reactive output, so it cannot follow a varying harmonic | Fixed, tuned to the design condition |
| Resonance risk | None, since it does not add capacitance at the harmonic | Managed by detuning, but the risk is only reduced | Designed to avoid resonance at the tuned order |
| Footprint | Compact cabinet or modular rack | Moderate, capacitor and reactor per step | Large for multiple orders |
| Cost | Highest per ampere of harmonic current | Lowest | Middle, and rises with each order added |
| Typical application | Data centres and VFD-heavy plants | Steady plants with a dominant harmonic | Known, stable harmonic spectra |
Where QDTB® Active Harmonic Filters Are Specified
An active filter is specified where the harmonic spectrum moves with the load: data centres full of switched-mode supplies, industrial plants with banks of VFDs, commercial buildings with lifts and chillers, and water or pumping stations with soft starters. A passive branch tuned to one order cannot follow that load, which is why the active device is chosen.
The filter samples the load current, extracts the harmonic components and injects the opposite current at the point of common coupling, so the upstream transformer, cable and capacitor bank see a clean current. That protects the transformer from harmonic heating and keeps the capacitor bank from resonating with the very harmonics it was meant to ignore.
Sizing is based on the measured or estimated harmonic current of the load rather than on the load current itself, and individual orders up to the 25th are normally compensated. Where power factor also has to be corrected, the same device can supply reactive current alongside the harmonic component.
Units are rated 50-300 A at 400 V or 690 V and reduce THDi to below 5 %. That limit is what IEEE 519 and IEC 61000-3-6 ask of the point of common coupling, in modular or cabinet construction.
Frequently Asked Questions
How does an active harmonic filter work?
The APF samples the load current, extracts the harmonic components, and injects a current of equal magnitude and opposite phase so harmonics cancel at the measurement point.
What harmonics can an APF compensate?
Active filters typically compensate individual harmonic orders up to the 25th, with selective control over which orders are targeted.
Is an APF the same as a capacitor bank?
No. Capacitor banks provide fixed reactive power and can resonate with harmonics, while an APF actively cancels harmonic current and can also correct power factor.
How do I size an active harmonic filter?
The APF rating is based on the measured or estimated harmonic current of the load, typically 50–300 A per unit with units paralleled for larger installations.
What capacity and voltage range is available for Active Harmonic Filters?
QDTB® supplies Active Harmonic Filters from 50 to 300 A, with a 0.4 kV voltage rating.
What is the minimum order quantity (MOQ) for Active Harmonic Filters?
One unit for standard products. Custom-designed equipment is quoted on specifications — send your parameters or drawings and our sales team will confirm the MOQ for your configuration.
