Dry-Type Transformers Overview
Dry-type transformers are essential components in modern electrical distribution systems, offering fire-safe, maintenance-free operation without insulating oil. QDTB dry-type transformers are designed for indoor applications in commercial buildings, hospitals, data centers, and industrial facilities. Our cast resin and open-wound designs cover 30 kVA to 3,300 kVA, up to 35 kV, meeting IEC 60076-11 standards.
Available Series

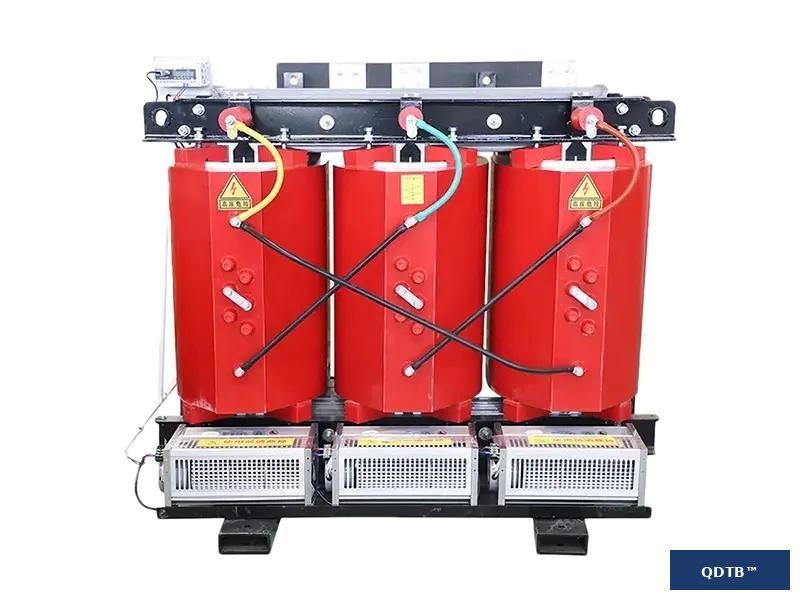

SCB14 Series
The SCB14 series delivers superior energy efficiency with Level 4 rating, offering significant energy savings and environmental benefits. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, Class F insulation with 65 K temperature rise, IP00–IP31 enclosure (IP42–IP66 available on request). Suitable for indoor substations, data centers, commercial buildings, industrial plants, and solar/wind farms.

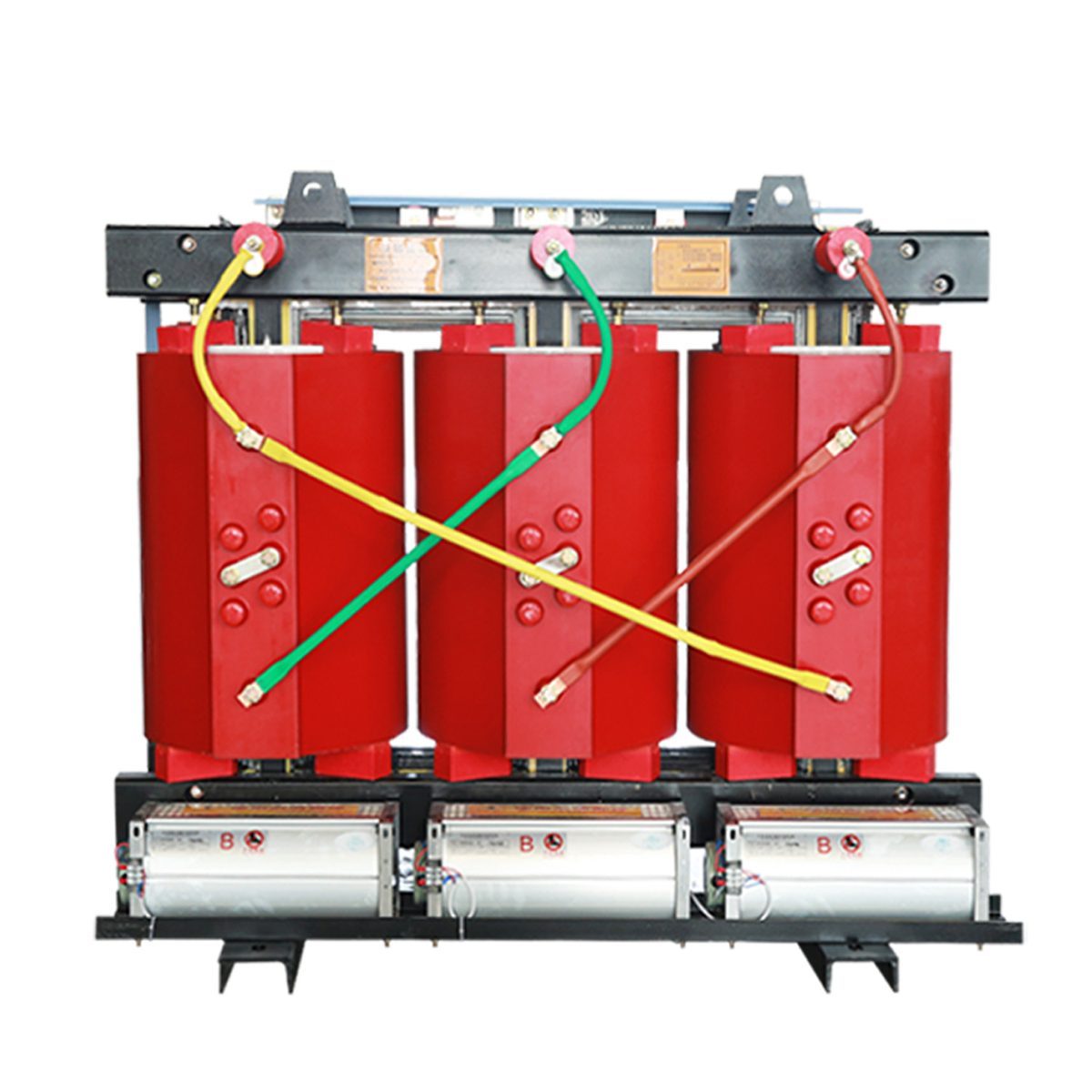

SCB13 Series
The SCB13 series is an energy-efficient variant of cast resin dry-type transformers, meeting Level 3 energy efficiency standards with reduced no-load losses. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, Class F insulation with 65 K temperature rise, IP00–IP31 enclosure (IP42–IP66 available on request). Suitable for indoor substations, data centers, commercial buildings, industrial plants, and solar/wind farms.

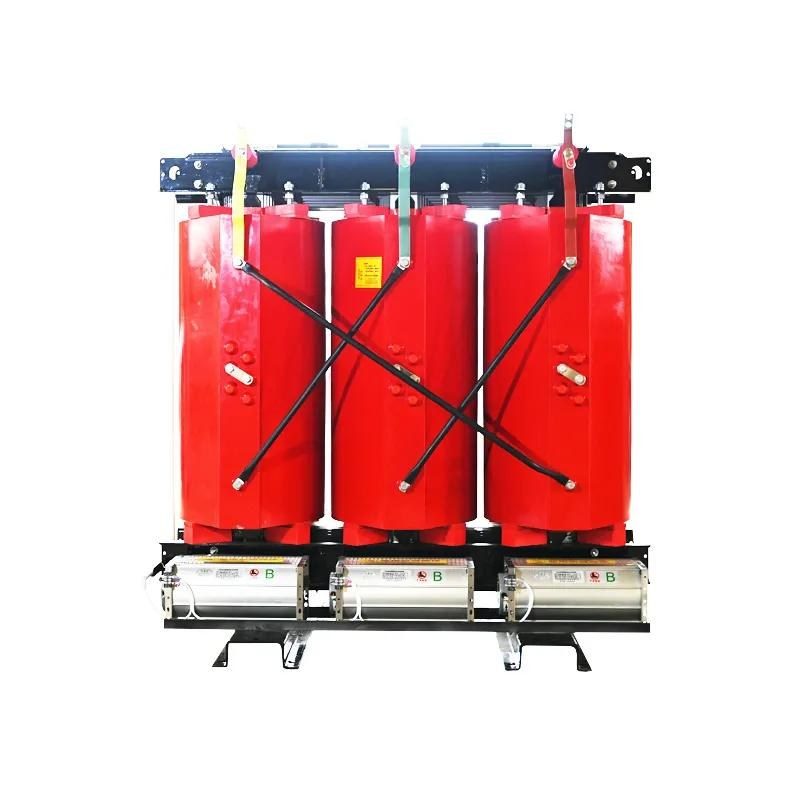

SCB15 Series
The SCB15 series represents the highest energy efficiency class, achieving Level 5 rating with exceptional performance and minimal energy waste. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, Class F/H insulation with 65 K temperature rise, IP00–IP31 enclosure (IP42–IP66 available on request). Suitable for indoor substations, data centers, commercial buildings, industrial plants, and solar/wind farms.

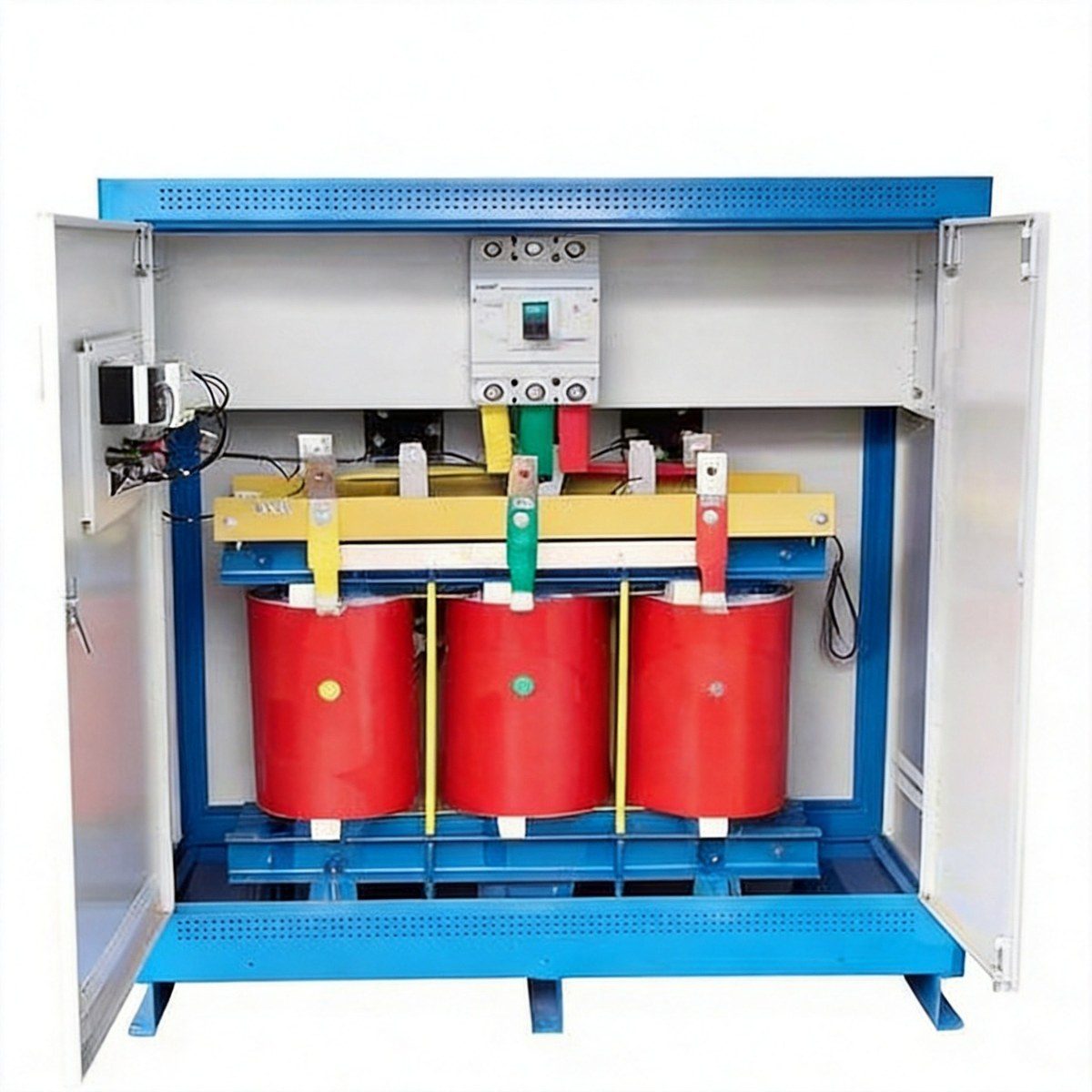

SCBH15 Series
The SCBH15 series combines cast resin technology with amorphous alloy core material, achieving ultra-low no-load losses approximately 20% of traditional silicon steel transformers. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, Class F/H insulation with 65 K temperature rise, IP00–IP31 enclosure (IP42–IP66 available on request). Suitable for indoor substations, data centers, commercial buildings, industrial plants, and solar/wind farms.

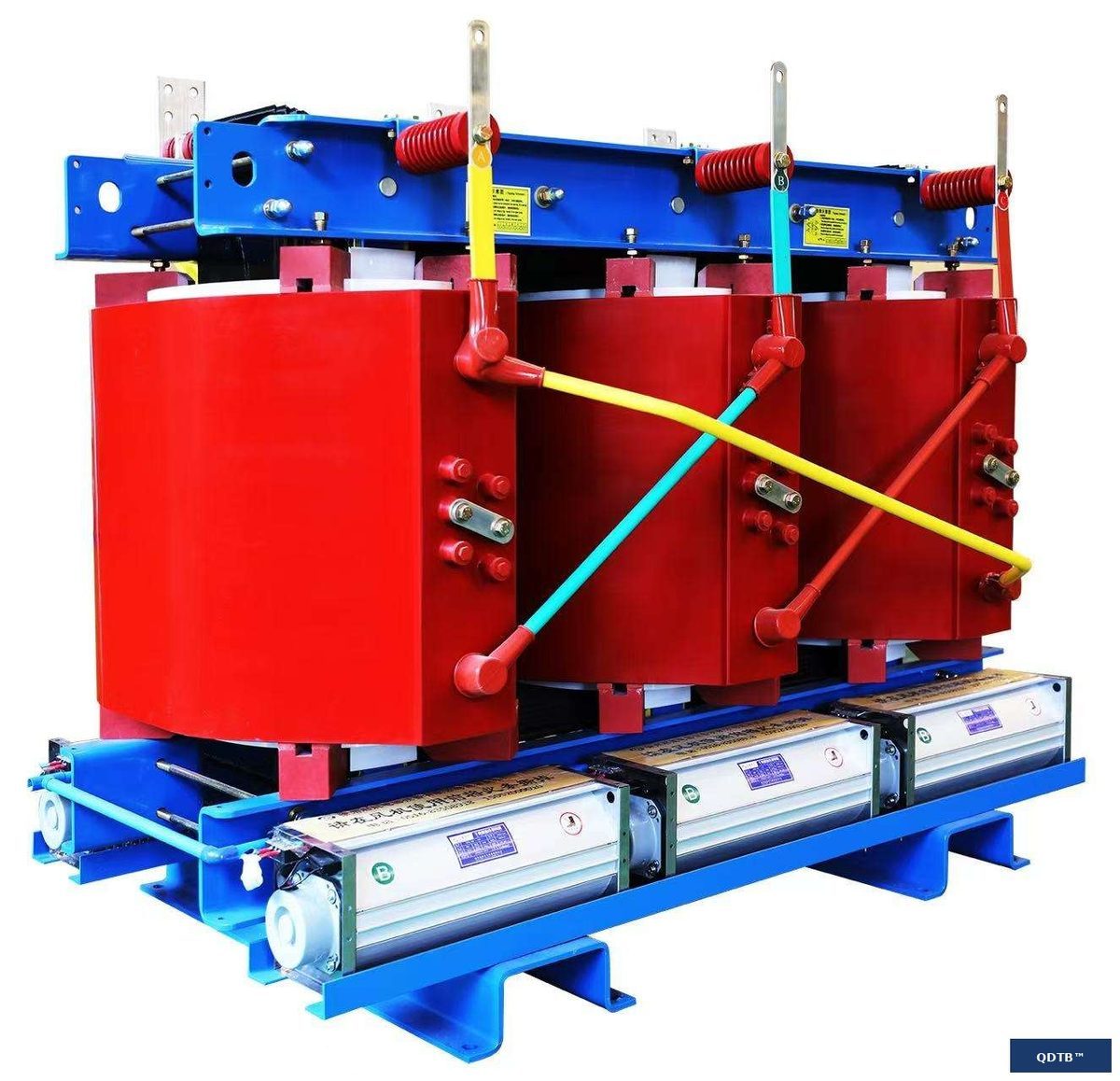

SCR Series
The SCR series features special structural designs for specific application requirements, offering customized solutions for challenging environments. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, Class F insulation with 65 K temperature rise, IP00–IP31 enclosure (IP42–IP66 available on request). Suitable for indoor substations, data centers, commercial buildings, industrial plants, and solar/wind farms.

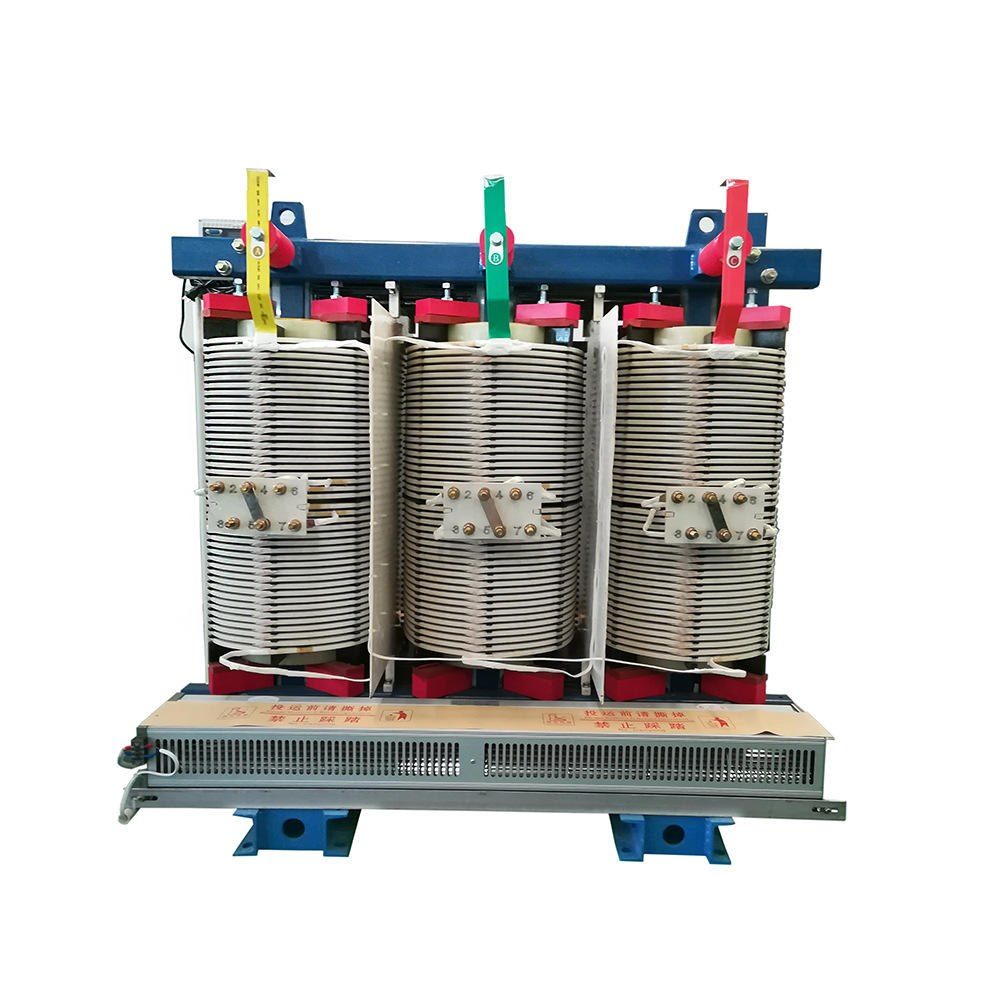

SG13 Series
The SG13 series features open-type construction with Level 3 energy efficiency, providing excellent ventilation and cooling for demanding applications. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, Class F insulation with 65 K temperature rise, IP00–IP31 enclosure (IP42–IP66 available on request). Suitable for indoor substations, data centers, commercial buildings, industrial plants, and solar/wind farms.

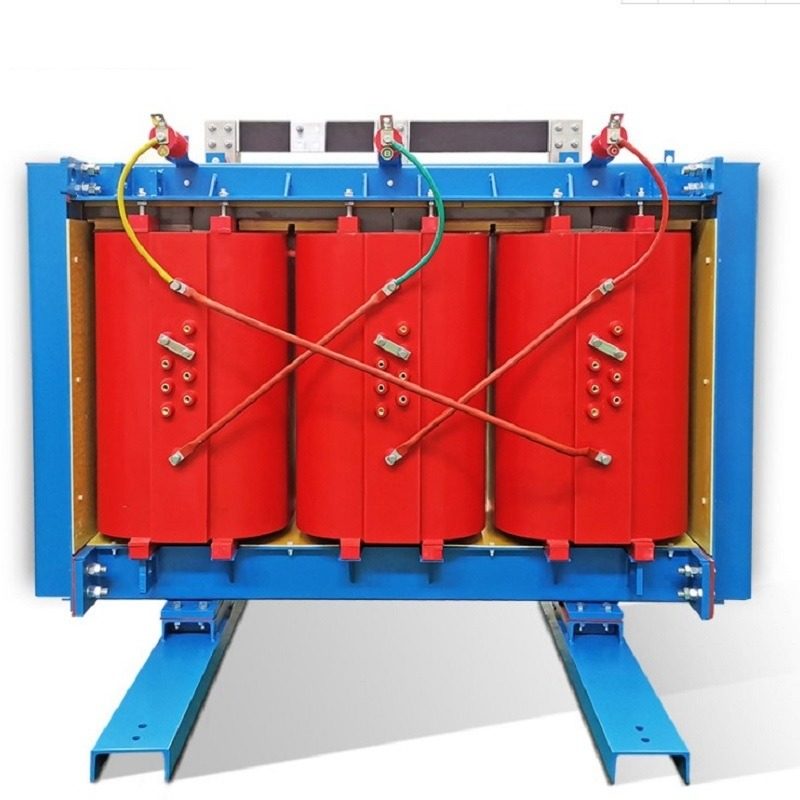

SCL13 Series
The SCL13 series features aluminum winding construction while maintaining Level 3 energy efficiency, offering cost-effective solutions for various applications. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, Class F insulation with 65 K temperature rise, IP00–IP31 enclosure (IP42–IP66 available on request). Suitable for indoor substations, data centers, commercial buildings, industrial plants, and solar/wind farms.

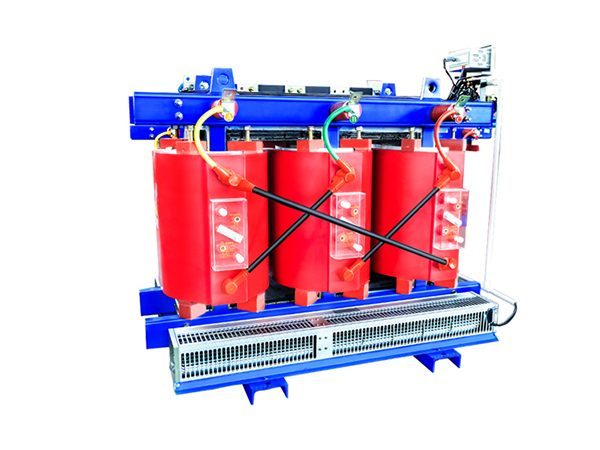

SCB Series
The SCB series represents three-phase cast resin dry-type transformers, featuring advanced insulation technology for reliable performance in indoor applications. Rated 10–5000 kVA, 0.48–34.5 kV primary and 0.208–0.48 kV secondary, Class F/H insulation with 65 K temperature rise, IP00–IP31 enclosure (IP42–IP66 available on request). Suitable for indoor substations, data centers, commercial buildings, industrial plants, and solar/wind farms.
VPI Dry-Type Transformers Series
VPI (Vacuum Pressure Impregnated) dry-type transformers use open-wound, Nomex-insulated coils impregnated under vacuum and pressure, combining fire safety and moisture resistance with a lighter, repairable construction. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, Class F/H insulation with 65 K temperature rise, IP00–IP31 enclosure (IP42–IP66 available on request). Suitable for oil & gas wellheads, chemical plants, coastal installations, and industrial facilities.
Specialty Dry-Type Transformers Series
Specialty dry-type transformers cover harmonic-rated K-factor units, marine three-proof designs, drive-isolation transformers for variable-frequency drives, and 12/24-pulse phase-shift rectifier duty, with US-standard options. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, Class F/H insulation with 65 K temperature rise, IP00–IP31 enclosure. Suitable for data centers, marine and offshore installations, VFD drives, and industrial rectifier systems.
Instant Selection & Quote Calculator
Select your specifications to get an estimated price instantly.
More options(7)
Certification
The values below are computed from what you selected above. Anything that cannot be computed yet is shown as an em dash — never as zero.
Iₙ = S / (√3·U) · I_sc = 100·Iₙ / uₖ · S_sc = √3·U·I_sc · I_p = k·Iₖ
Still required to complete the calculation: rated capacity S, impedance voltage uₖ, short-time or peak withstand current.
Per-model values (P0 / Pk / uₖ declared by the factory, losses, noise, temperature rise, dimensions, weight) are not in the product library: those rows stay at an em dash until the factory parameter sheet is supplied. An em dash means the value is unavailable — it is never rendered as zero.
Read-only: no price factor, not part of the sum — the loss-grade cost is already carried by the efficiency (subtype) base price, so charging here would double-bill. Values come from the product library type-test data, interpolated between published capacities; grades the library does not cover show an em dash, never zero.
SCB13 及同损耗档（SCB13 / SG13 / SCL13 / SCR，Class 3）
Reference prices are for estimation only and do not constitute a formal offer.
3 · Get this quote
We will reply with your latest quote instantly.
Related Engineering Calculators
Free sizing and pricing tools for this product category.
Application Scenarios
Commercial Buildings
Power distribution for malls and office towers with fire-safe solutions eliminating oil leakage risks.
Hospitals & Healthcare
Reliable power for medical equipment and life-support systems with low-noise operation.
Data Centers
High-efficiency distribution for server rooms supporting 24/7 operation.
Industrial Facilities
Safe oil-free electrical distribution for manufacturing plants.
Renewable Energy
Auxiliary power for solar and wind farms with excellent overload capacity.
Underground Installations
Ideal for metro stations and underground parking where fire regulations prohibit oil-filled equipment.
Technical Advantages
Fire-Safe Design
Cast resin insulation with self-extinguishing properties eliminates fire hazards.
Zero Maintenance
No oil changes or leak management needed throughout service life.
Low Noise
Advanced core construction achieves noise below 45 dB.
Eco-Friendly
No insulating oil, zero contamination risk, fully recyclable.
FAQ - Dry-Type Transformers
What is the difference between cast resin and open-wound dry-type transformers?
What standards do they comply with?
Can dry-type transformers be installed outdoors?
What is the expected service life?
How to select the right capacity?
When should I choose dry-type over oil-immersed?
Related Product Categories
Oil Immersed Transformers
Oil-immersed transformers are the workhorse of power distrib
Special Isolation Control Transformers
Isolation and control transformers provide galvanic separati
Amorphous Alloy Transformers
Amorphous alloy transformers are the lowest-loss choice for
Box Type Substations
Box-type substations, also known as prefabricated substation
Reactors
Reactors are inductive components that shape power quality b
Cable Branch Boxes
Cable branch boxes are sealed distribution points that split
Ring Main Units
Ring main units (RMUs) are compact, sealed switchgear that f
High Voltage Switchgear
High-voltage switchgear performs switching, protection, and
Low Voltage Switchgear
Low-voltage switchgear and motor control centers (MCCs) deli
Single Phase Transformers
Single-phase control transformers provide galvanic isolation
Three Phase Transformers
Three-phase dry-type transformers step down, isolate, or ada
Voltage Regulators
Automatic voltage regulators (stabilizers) keep output volta
Variable Transformers
Variable auto-transformers deliver continuous, stepless AC v
Inverters
Pure sine wave inverters convert DC battery power (12 V/24 V
Dc Power Supplies
Switching DC power supplies convert AC mains into regulated
Battery Chargers
Intelligent battery chargers restore and maintain lead-acid
Motor Starters
Motor starters control three-phase motor energization with r
Ups
Online double-conversion UPS systems continuously regenerate
Power Capacitors
Self-healing power capacitors provide power factor correctio
Solar Pv Modules
Solar PV modules convert sunlight into direct current and ar
String Inverters
String grid-tie inverters turn the DC output of PV modules i
Hybrid Inverters
Hybrid solar inverters combine a grid-tie inverter and a bat
Energy Storage Batteries
Energy storage batteries store surplus solar or off-peak pow
Pcs Energy Storage
Power conversion systems (PCS) are the bidirectional heart o
Battery Management Systems
The battery management system is the safety and intelligence
Ess Fire Suppression
Fire suppression for energy storage must act in the seconds
Pv Mounting Structures
Mounting structures hold the array to the roof or ground for
Dc Cables Connectors Spd
The DC side of a PV plant is only as reliable as the cables,
Monitoring Scada Communication
A solar or storage plant that cannot be observed and control
Cables Trays Grounding
The AC side and the structural grounding of a plant are easy
Energy Storage Containers
The energy storage container packages battery, power convers
Busway
Busway (bus duct) systems distribute high-current power from
Ev Charging Stations
EV charging stations supply electric vehicles with AC Level
Pole Mounted Switchgear
Pole-mounted switchgear provides outdoor switching, protecti
Svg Svc
Static Var Generator (SVG) and Static Var Compensator (SVC)
Active Harmonic Filters
Active Harmonic Filters (APF), also called active power filt
Ats Transfer Switches
Automatic Transfer Switches (ATS) automatically transfer the
Diesel Generators
Diesel generator sets provide reliable prime or standby powe
Eps Emergency Power
EPS (Emergency Power Supply) systems provide battery-backed
Wind Turbines
QDTB onshore wind turbines span the 2 MW, 3 MW and 5 MW clas
Scada Automation
Substation SCADA and secondary automation equipment for MV/L
American Pad Mounted Transformers
American pad-mounted transformers (ZGS series) place a 12 kV
Need help?
All specifications and dimensions can be customized upon request
Cast Resin vs VPI vs Oil-Immersed: How to Choose
| Cast Resin (SCB) | VPI Open-Wound | Oil-Immersed | |
|---|---|---|---|
| Insulation & construction | Epoxy resin cast under vacuum — windings sealed against moisture and dust | Windings impregnated with resin under vacuum pressure — open, ventilated structure | Mineral insulating oil with paper insulation, sealed tank |
| Fire safety & location | Self-extinguishing, no oil — suitable for indoor occupied spaces | No oil, fire-retardant Class F insulation — indoor use | Needs oil containment and fire separation — outdoor or dedicated room |
| Cooling | AN / AF | AN / AF — open structure dissipates heat better | ONAN / ONAF / OFAF |
| Maintenance | No oil checks or leak management over service life | No oil checks or leak management over service life | Oil testing on a periodic schedule; no top-ups on sealed designs |
| Typical applications | Data centres, hospitals, commercial towers, metro stations | Industrial plants and renewables auxiliary power where cost per kVA matters | Outdoor distribution, utility and high-capacity duty |
Where QDTB® Dry-Type Transformers Are Specified
Dry-type units are specified where oil is not acceptable: inside occupied buildings, below-grade electrical rooms, and anywhere an oil load or containment basin would be a liability. Data centres and telecom rooms choose cast resin units for their high short-time overload capability and low partial discharge; hospitals and commercial towers choose them for silent, maintenance-free operation next to occupied space.
Metro and underground installations rely on the oil-free design because fire regulations in tunnels and stations prohibit oil-filled equipment, while solar and wind projects use dry-type units as auxiliary station transformers where ambient and seismic conditions make oil handling impractical.
Frequently Asked Questions
What is the difference between cast resin and open-wound dry-type transformers?
Cast resin uses epoxy encapsulation for superior moisture resistance. Open-wound (VPI) offers better heat dissipation and lower cost.
What standards do they comply with?
IEC 60076-11, GB/T 1094.11, CE certified for Europe, IEEE available on request.
Can dry-type transformers be installed outdoors?
Yes, with IP23D/IP54 enclosure options. Cast resin provides inherent moisture resistance.
What is the expected service life?
Over 30 years with proper ventilation. Class F insulation ensures long-term reliability.
How to select the right capacity?
Operate at 70-80% of rated capacity for optimal efficiency. Consider future expansion needs.
When should I choose dry-type over oil-immersed?
For indoor, occupied, or fire-sensitive locations - hospitals, data centers, commercial buildings, and underground installations. Dry-type needs no oil containment or leak management; oil-immersed is better for outdoor, high-capacity utility duty.
