Product Search
Find the right transformer for your needs
UPS (Uninterruptible Power Supply)
6 Series · 55 Models
Product Images
Images are for illustration purposes only
UPS (Uninterruptible Power Supply) Overview
Online double-conversion UPS systems continuously regenerate clean AC power with zero transfer time, so connected loads see no interruption during an outage. QDTB units span 600 VA to 30 kVA with pure sine wave output, smart battery charging, LED/LCD display, and RS232/USB communication. The CK series (C1K to C30K) covers office to data center, protecting computers, networking gear, medical devices, industrial control, and security systems.
Available Series

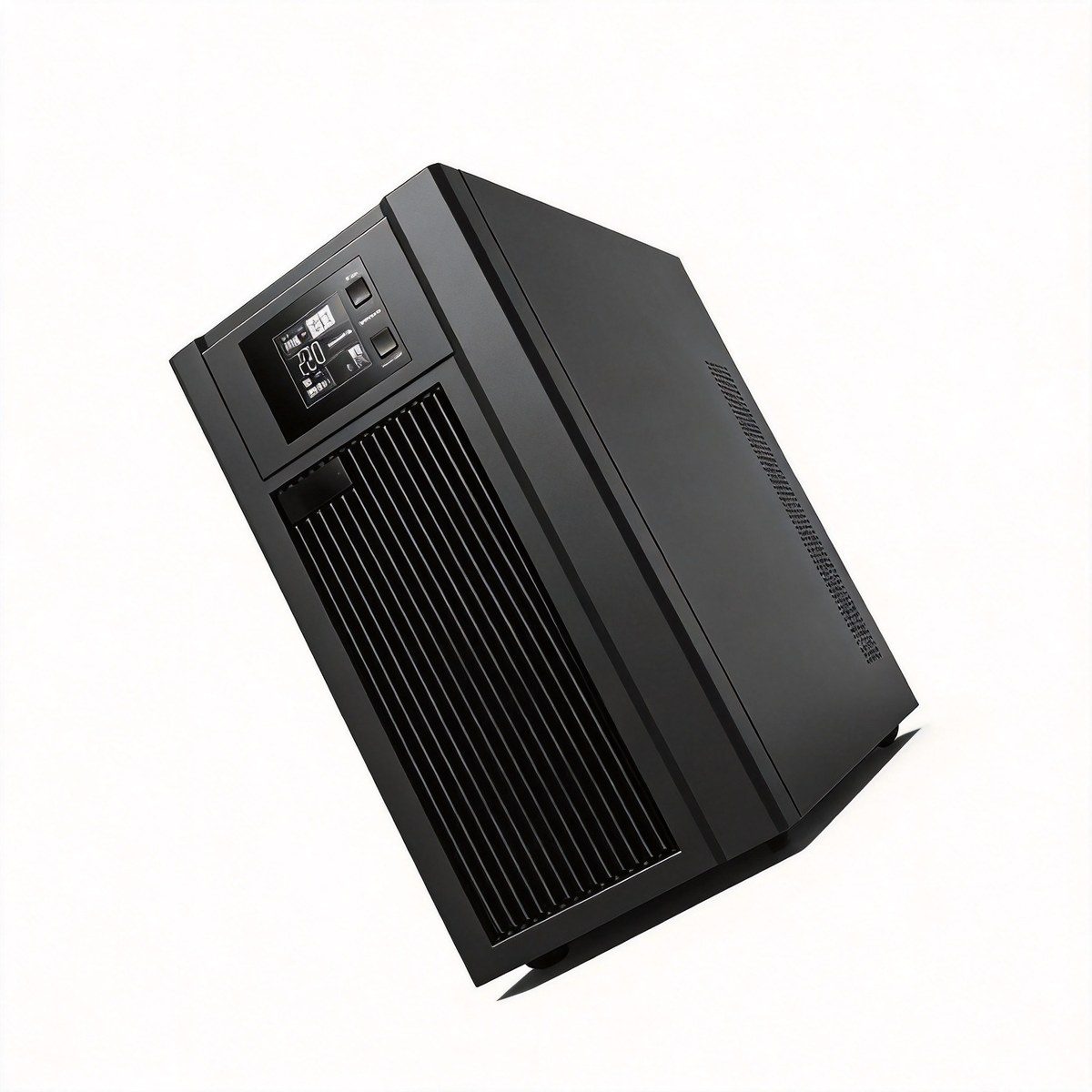

CK Series
The CK series online double-conversion UPS systems provide clean, uninterrupted power supply with zero transfer time for critical loads and data center applications.
EPS Emergency Power Supply Series
EPS (Emergency Power Supply) systems provide automatic AC backup power for fire protection and emergency loads during a mains failure, using inverter technology with a battery bank and automatic transfer. Available in lighting-type (for emergency lighting and evacuation signs) and power-type (for fire pumps, smoke exhaust fans, and elevators) configurations from 1 to 500 kW, single-phase 220V and three-phase 380V output.
Industrial Frequency UPS Series
Industrial frequency UPS systems are three-phase online double-conversion units built with an output isolation transformer and IGBT rectifier, designed for harsh industrial environments and heavy loads. Rated 10–400 kVA with 380/400/415V three-phase input and output, they provide galvanic isolation, high overload capacity, and full parallel redundancy (N+1) for critical process loads.
Modular UPS Series
Modular UPS systems deliver N+X scalable power protection by hot-swappable power modules mounted in a rack frame, allowing capacity to grow with load without replacing the whole system. Rated 10–300 kVA, three-phase online double-conversion, with redundant power modules, shared battery or distributed battery options, and online module replacement for data centers and IT rooms.
Standby Line Interactive UPS Series
Standby and line-interactive UPS provide economical battery backup with automatic voltage regulation (AVR) for PCs, networking and small office equipment. Rated 600 VA–3 kVA, they protect against outages and voltage fluctuations with fast transfer to battery.
Rack Mount UPS Series
Rack mount UPS provide space-efficient battery backup in a 19-inch rack form factor for servers, network and IT equipment. Rated 1–10 kVA, online double-conversion or line-interactive, with hot-swappable batteries and network management for data center racks.
Instant Selection & Quote Calculator
Select your specifications to get an estimated price instantly.
More options(6)
Certification
Reference prices are for estimation only and do not constitute a formal offer.
3 · Get this quote
We will reply with your latest quote instantly.
Related Engineering Calculators
Free sizing and pricing tools for this product category.
Application Scenarios
Data Centers & Servers
Clean, continuous power for servers and storage during outages.
Medical Equipment
Uninterrupted supply for life-critical and diagnostic equipment.
Networking & IT
Keeps routers, switches and telecom gear online through disturbances.
Industrial Control
Protects PLC and process control systems from power loss.
Security Systems
Maintains CCTV, access control and alarms during outages.
Office & Retail
Battery backup for point-of-sale and office systems.
Technical Advantages
Online Double Conversion
Continuous power regeneration with zero transfer time on outage.
Pure Sine Wave
Clean output compatible with all load types including motors.
Smart Battery Management
Intelligent charging extends battery life and reports health.
Communication Ports
RS232/USB for monitoring and graceful shutdown of servers.
FAQ - UPS (Uninterruptible Power Supply)
What is the difference between online and offline UPS?
How do I size a UPS?
How long will the battery last?
What capacity and voltage range is available for UPS (Uninterruptible Power Supply)?
What is the minimum order quantity (MOQ) for UPS (Uninterruptible Power Supply)?
What is the delivery time for UPS (Uninterruptible Power Supply)?
Related Product Categories
Dry Type Transformers
Dry-type transformers are essential components in modern ele
Oil Immersed Transformers
Oil-immersed transformers are the workhorse of power distrib
Special Isolation Control Transformers
Isolation and control transformers provide galvanic separati
Amorphous Alloy Transformers
Amorphous alloy transformers are the lowest-loss choice for
Box Type Substations
Box-type substations, also known as prefabricated substation
Reactors
Reactors are inductive components that shape power quality b
Cable Branch Boxes
Cable branch boxes are sealed distribution points that split
Ring Main Units
Ring main units (RMUs) are compact, sealed switchgear that f
High Voltage Switchgear
High-voltage switchgear performs switching, protection, and
Low Voltage Switchgear
Low-voltage switchgear and motor control centers (MCCs) deli
Single Phase Transformers
Single-phase control transformers provide galvanic isolation
Three Phase Transformers
Three-phase dry-type transformers step down, isolate, or ada
Voltage Regulators
Automatic voltage regulators (stabilizers) keep output volta
Variable Transformers
Variable auto-transformers deliver continuous, stepless AC v
Inverters
Pure sine wave inverters convert DC battery power (12 V/24 V
Dc Power Supplies
Switching DC power supplies convert AC mains into regulated
Battery Chargers
Intelligent battery chargers restore and maintain lead-acid
Motor Starters
Motor starters control three-phase motor energization with r
Power Capacitors
Self-healing power capacitors provide power factor correctio
Solar Pv Modules
Solar PV modules convert sunlight into direct current and ar
String Inverters
String grid-tie inverters turn the DC output of PV modules i
Hybrid Inverters
Hybrid solar inverters combine a grid-tie inverter and a bat
Energy Storage Batteries
Energy storage batteries store surplus solar or off-peak pow
Pcs Energy Storage
Power conversion systems (PCS) are the bidirectional heart o
Battery Management Systems
The battery management system is the safety and intelligence
Ess Fire Suppression
Fire suppression for energy storage must act in the seconds
Pv Mounting Structures
Mounting structures hold the array to the roof or ground for
Dc Cables Connectors Spd
The DC side of a PV plant is only as reliable as the cables,
Monitoring Scada Communication
A solar or storage plant that cannot be observed and control
Cables Trays Grounding
The AC side and the structural grounding of a plant are easy
Energy Storage Containers
The energy storage container packages battery, power convers
Busway
Busway (bus duct) systems distribute high-current power from
Ev Charging Stations
EV charging stations supply electric vehicles with AC Level
Pole Mounted Switchgear
Pole-mounted switchgear provides outdoor switching, protecti
Svg Svc
Static Var Generator (SVG) and Static Var Compensator (SVC)
Active Harmonic Filters
Active Harmonic Filters (APF), also called active power filt
Ats Transfer Switches
Automatic Transfer Switches (ATS) automatically transfer the
Diesel Generators
Diesel generator sets provide reliable prime or standby powe
Eps Emergency Power
EPS (Emergency Power Supply) systems provide battery-backed
Wind Turbines
QDTB onshore wind turbines span the 2 MW, 3 MW and 5 MW clas
Scada Automation
Substation SCADA and secondary automation equipment for MV/L
American Pad Mounted Transformers
American pad-mounted transformers (ZGS series) place a 12 kV
Need help?
All specifications and dimensions can be customized upon request
Online Double-Conversion vs Line-Interactive vs Standby UPS: How to Choose
| Online Double-Conversion (CK) | Line-Interactive | Standby (Offline) | |
|---|---|---|---|
| Transfer time | Zero — the load runs from the inverter continuously | A few milliseconds while the inverter takes over | A short break before the inverter starts |
| Power conditioning | Regenerates a clean sine wave and isolates the load from the mains | Corrects voltage through an AVR, but passes the mains waveform | Passes the mains straight through while it is present |
| Efficiency | Lower, because the double conversion runs continuously | Higher, since the inverter only works during an outage | Highest of the three |
| Battery cycling | Battery sits on charge and is exercised only in an outage | Battery is used for voltage correction as well as outages | Battery is used only when the mains fails |
| Load suitability | Servers, medical devices and process control | Networking gear and office IT | Workstations and point-of-sale terminals |
| Cost | Highest per kVA | Middle | Lowest per kVA |
| Typical application | Data centres and hospital equipment | Network closets and retail IT | Home and small office computers |
Where QDTB® UPS Systems Are Specified
An online UPS is specified wherever a break of even a few milliseconds would stop the work: data centres and server rooms, medical equipment, networking and IT racks, industrial control systems and security installations. Because the load always runs from the inverter, the mains is only an energy source and never a direct feed, so sags, spikes and frequency wander stop at the rectifier.
Office and retail installations often take the line-interactive design instead, because the load tolerates a short transfer and the efficiency is better over a working day. The choice between the two is set by the load's tolerance, not by the price difference alone.
Sizing starts from the connected VA plus headroom for growth, and the battery is then chosen for the runtime the site actually needs. Typical UPS batteries carry the load for five to fifteen minutes, which is enough to ride out a transfer or shut the process down in order.
The range spans 600 VA to 30 kVA in the CK series, with 0.5 kVA to 500 kVA covered across the range. Output is a pure sine wave, battery charging is managed by the unit, and RS232/USB communication reports status to the monitoring system.
Frequently Asked Questions
What is the difference between online and offline UPS?
An online UPS continuously regenerates power with zero transfer time and full conditioning. An offline (line-interactive) UPS switches to battery on outage with a brief transfer delay.
How do I size a UPS?
Sum the VA of connected loads and add 20-30% headroom. For servers, factor in power factor and startup surge.
How long will the battery last?
Runtime depends on load and battery capacity. Typical UPS batteries provide 5-15 minutes at full load, enough for orderly shutdown.
What capacity and voltage range is available for UPS (Uninterruptible Power Supply)?
QDTB® supplies UPS (Uninterruptible Power Supply) from 0.5 to 500 kVA.
What is the minimum order quantity (MOQ) for UPS (Uninterruptible Power Supply)?
One unit for standard products. Custom-designed equipment is quoted on specifications — send your parameters or drawings and our sales team will confirm the MOQ for your configuration.
What is the delivery time for UPS (Uninterruptible Power Supply)?
Standard units are delivered in 30-45 days. Custom or large-capacity units follow a project-specific schedule confirmed at quotation. Rush orders can be accommodated for urgent projects.
