Low Voltage Switchgear
14 Series · 130 Models
Product Images
Images are for illustration purposes only

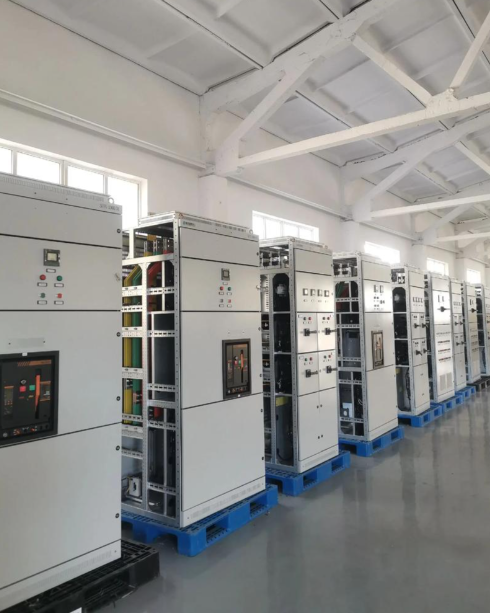

Low Voltage Switchgear Overview
Low-voltage switchgear and motor control centers (MCCs) deliver the final stage of power distribution to end-use equipment. QDTB supplies distribution cabinets, MCCs, capacitor banks, and automatic transfer switch (ATS) panels rated 0.22-0.4 kV per IEC 61439 and GB 7251. Designs are offered in fixed and withdrawable forms, with busbar ratings from 400 A to 6,300 A and internal separation per Forms 1-4, integrating breakers, contactors, and metering for reliable industrial and commercial distribution.
Available Series

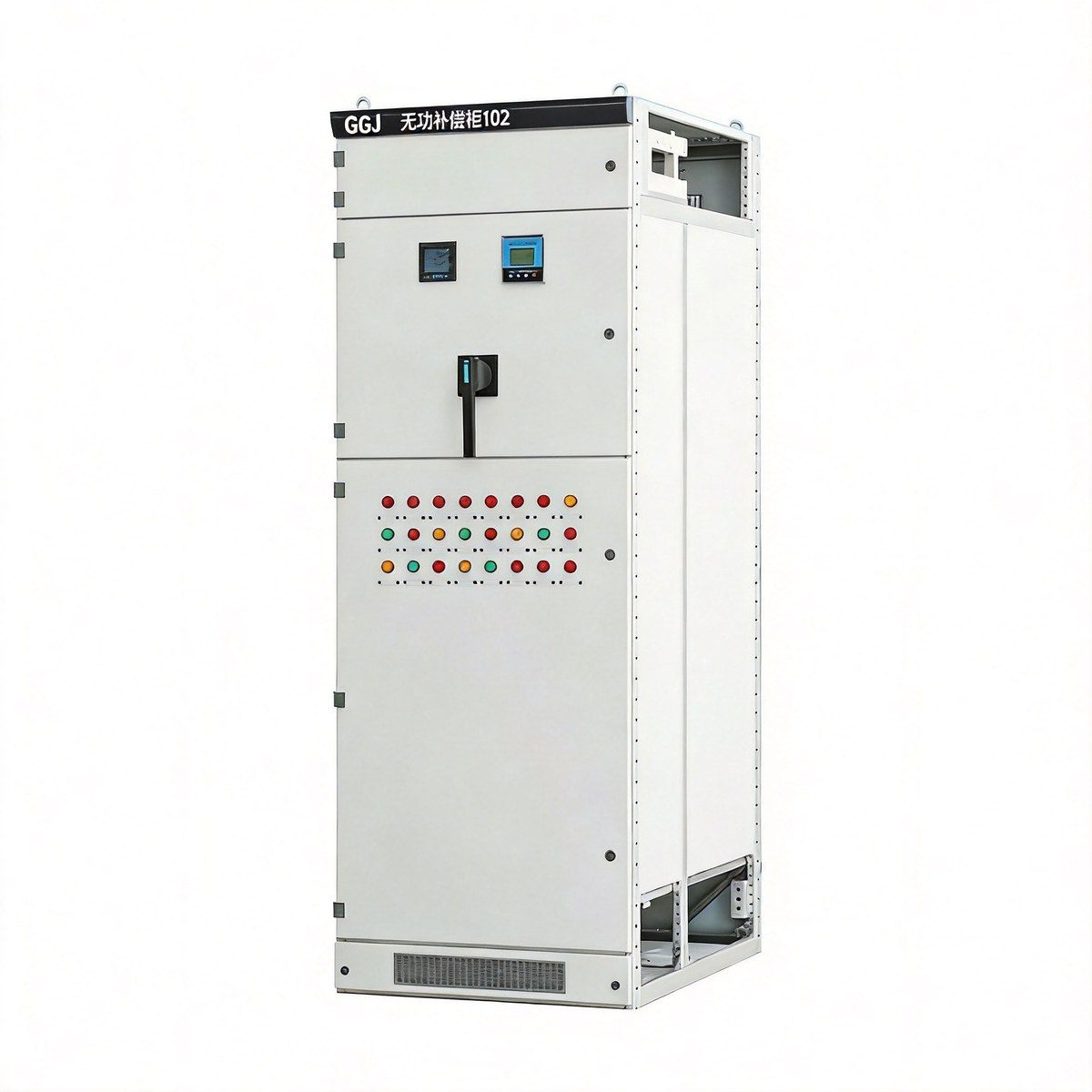

GGJ Series
The GGJ series low voltage reactive power compensation cabinets provide intelligent power factor correction for industrial applications. Features zero-crossing switching technology and optional GPRS remote monitoring for optimized energy efficiency. Rated 380 V, IP30 enclosure (IP54/IP66 outdoor options available on request). Suitable for indoor substations, motor control centers (MCC), industrial plants, and building power distribution.

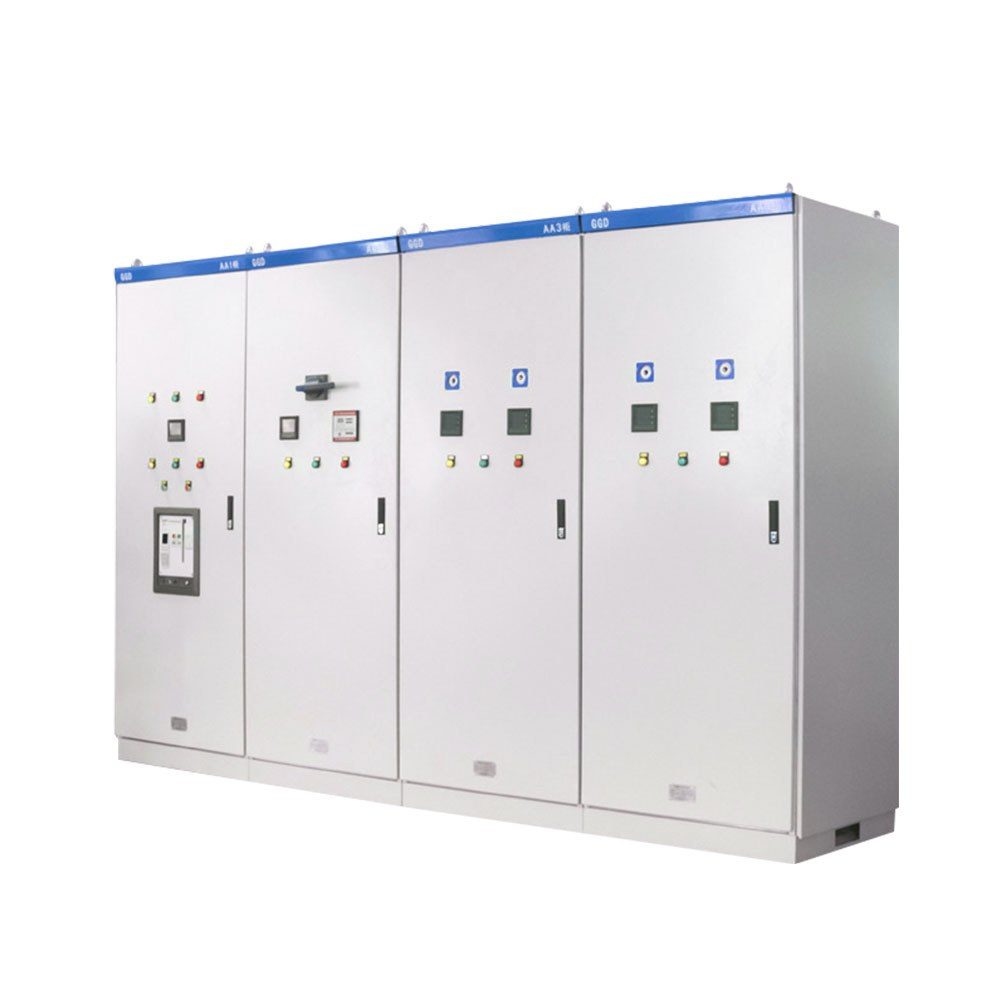

GGD Series
The GGD series represents fixed low-voltage distribution switchgear for general power distribution applications, offering cost-effective and reliable solutions. Rated 380 V, IP30 enclosure (IP54/IP66 outdoor options available on request). Suitable for indoor substations, motor control centers (MCC), industrial plants, and building power distribution.

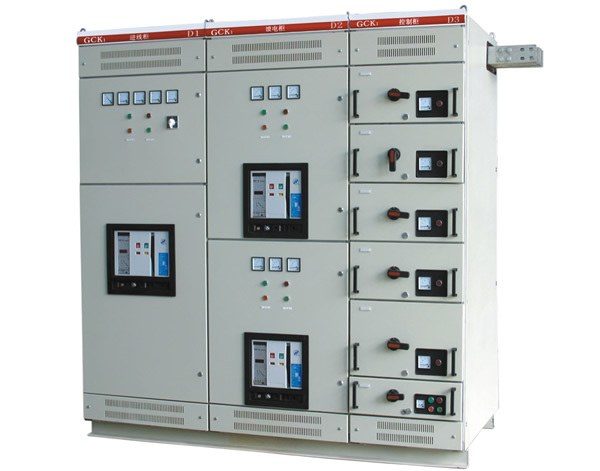

GCK Series
The GCK series represents withdrawable low-voltage switchgear for power distribution and motor control, offering flexible configuration and easy maintenance. Rated 380 V, IP30 enclosure (IP54/IP66 outdoor options available on request). Suitable for indoor substations, motor control centers (MCC), industrial plants, and building power distribution.

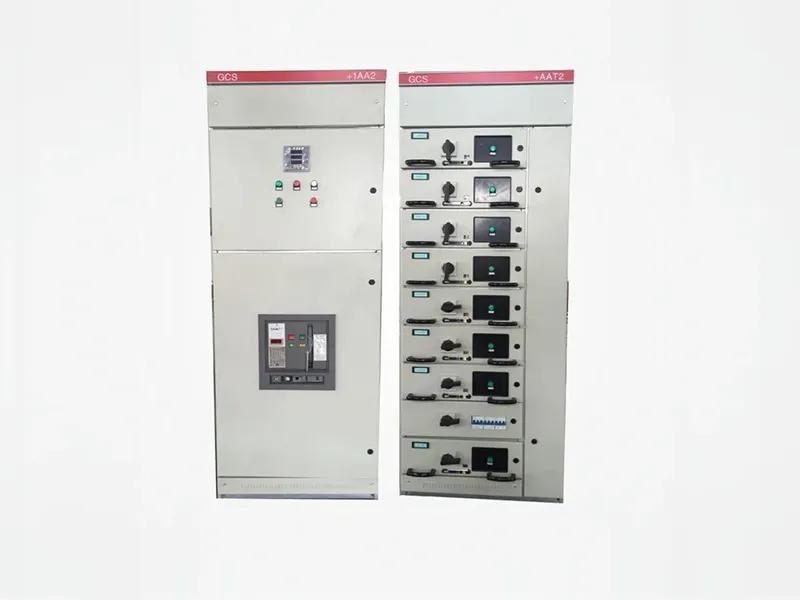

GCS Series
The GCS series represents withdrawable low-voltage distribution switchgear, providing reliable power distribution with enhanced safety features. Rated 380 V, IP30 enclosure (IP54/IP66 outdoor options available on request). Suitable for indoor substations, motor control centers (MCC), industrial plants, and building power distribution.

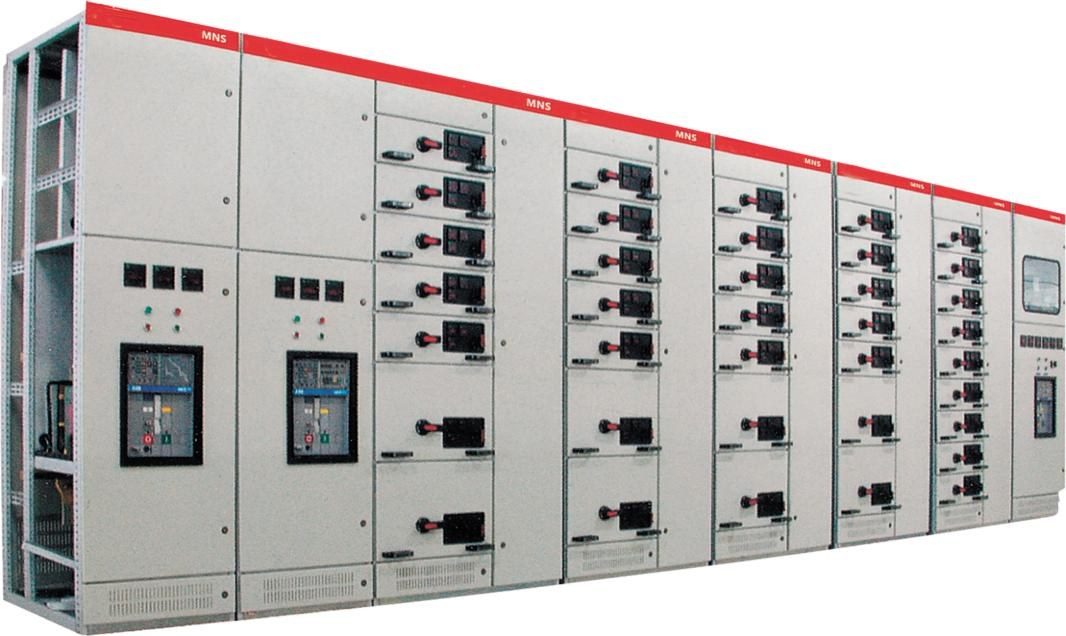

MNS Series
The MNS series represents modular withdrawable low-voltage switchgear, offering flexible configuration and international standard compliance. Rated 380 V, IP30 enclosure (IP54/IP66 outdoor options available on request). Suitable for indoor substations, motor control centers (MCC), industrial plants, and building power distribution.

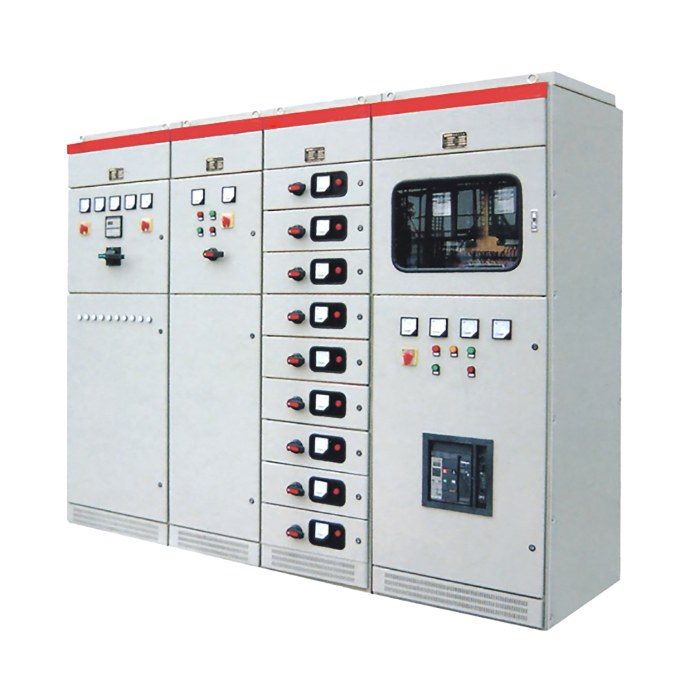

Blokset Series
The Blokset series low voltage switchgear features intelligent protection with Masterpact and Compact NSX circuit breaker compatibility. Designed for data centers, hospitals, and critical infrastructure requiring reliable power distribution and advanced protection. Rated 380 V, IP30 enclosure (IP54/IP66 outdoor options available on request). Suitable for indoor substations, motor control centers (MCC), industrial plants, and building power distribution.

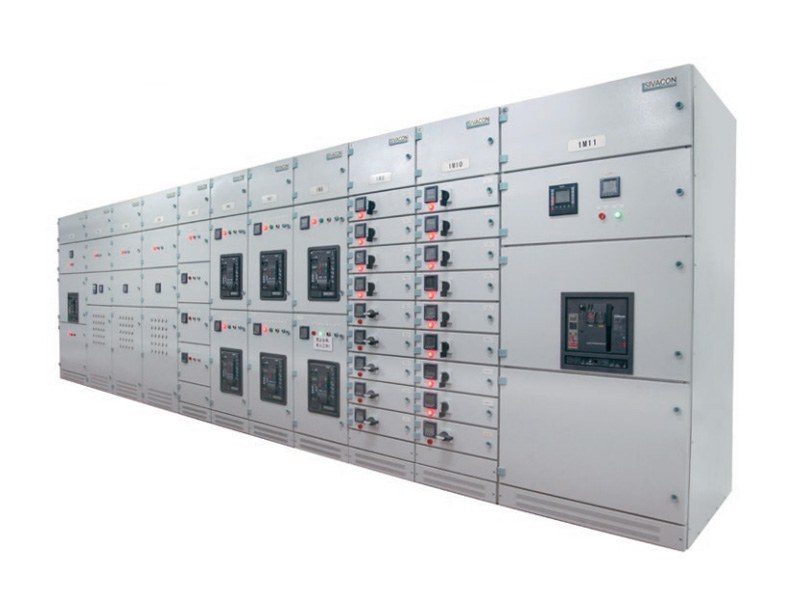

SIVACON Series
The SIVACON series low voltage switchgear incorporates Siemens technology for flexible configuration across power distribution, motor control, and compensation applications. Provides reliable performance in demanding industrial environments. Rated 380 V, IP30 enclosure (IP54/IP66 outdoor options available on request). Suitable for indoor substations, motor control centers (MCC), industrial plants, and building power distribution.

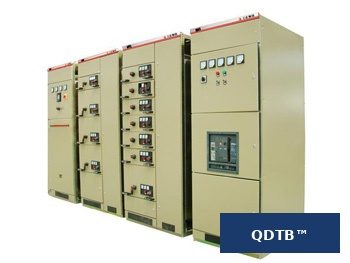

ArTu Series
The ArTu series low voltage switchgear features ABB components with Emax2 and InR air circuit breaker compatibility. Designed for commercial buildings, industrial plants, and infrastructure projects requiring reliable LV power distribution. Rated 380 V, IP30 enclosure (IP54/IP66 outdoor options available on request). Suitable for indoor substations, motor control centers (MCC), industrial plants, and building power distribution.

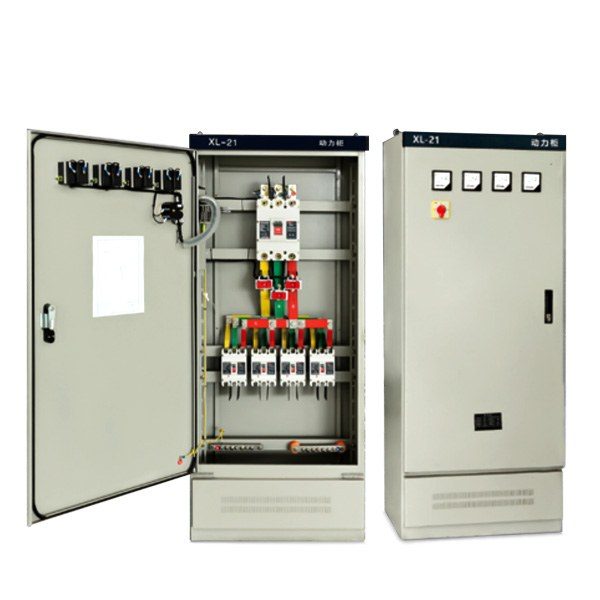

XL Series
The XL series power distribution boxes provide compact terminal distribution solutions for residential, commercial, and light industrial applications. Features space-efficient design with reliable circuit protection for downstream loads. Rated 380 V, IP30 enclosure (IP54/IP66 outdoor options available on request). Suitable for indoor substations, motor control centers (MCC), industrial plants, and building power distribution.

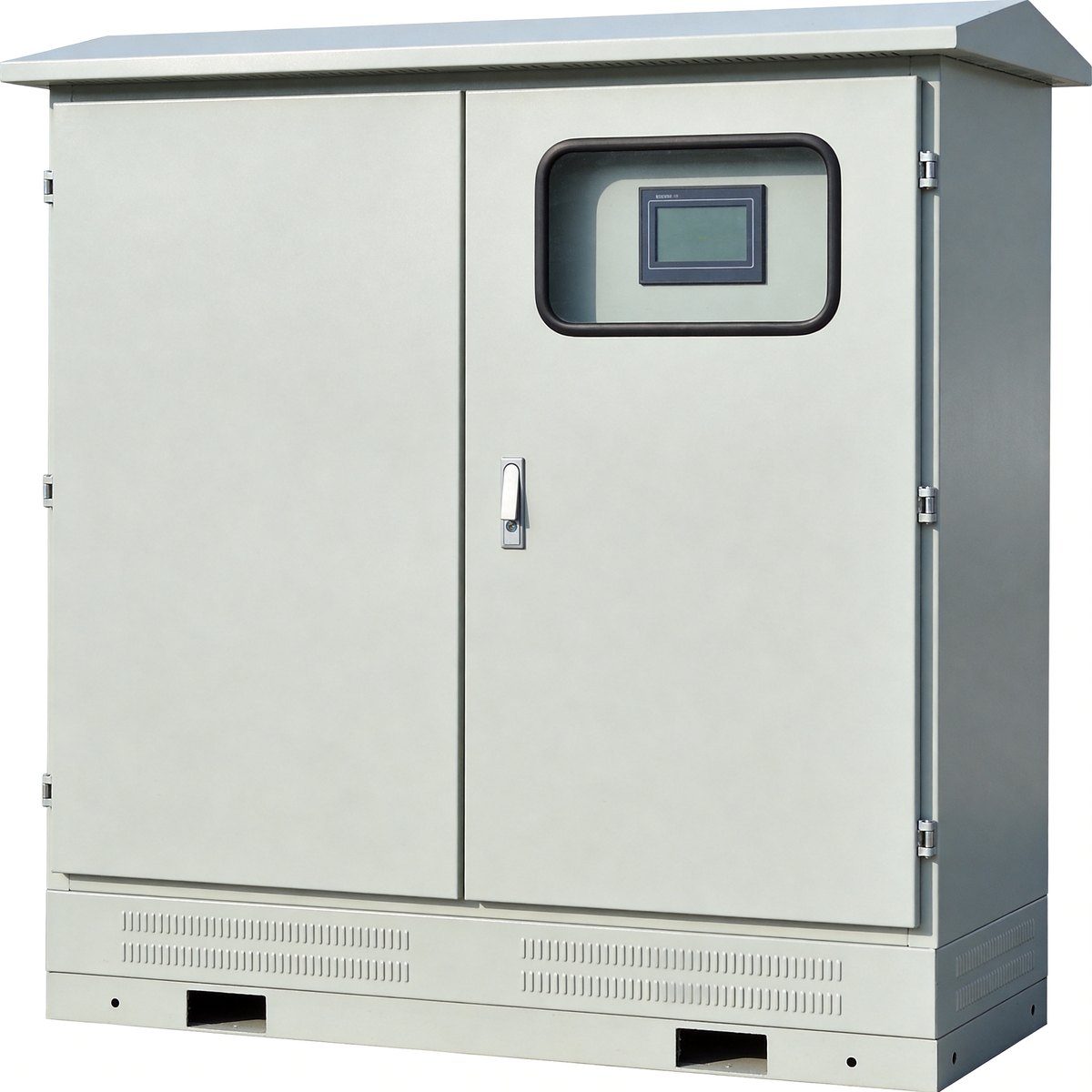

JP Series
The JP series integrated distribution panels combine power distribution with built-in reactive power compensation in an all-in-one solution. Designed for rural distribution transformer substations, providing simplified installation and comprehensive power management. Rated 380 V, IP30 enclosure (IP54/IP66 outdoor options available on request). Suitable for indoor substations, motor control centers (MCC), industrial plants, and building power distribution.

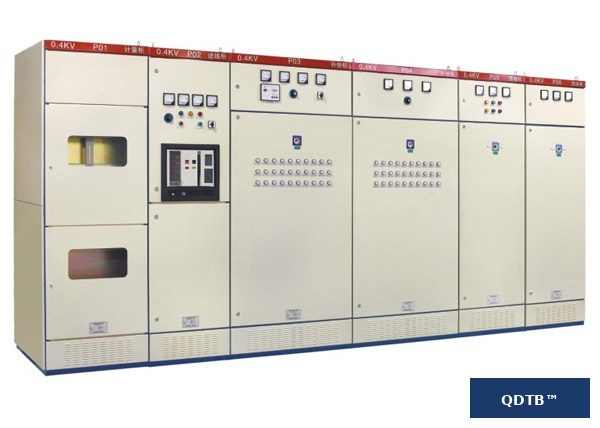

SLVA Series
The SLVA series PV grid-connection panels are specialized switchgear for solar power plant applications. Integrated with surge protection, isolation switches, and smart metering for reliable renewable energy grid connection and power quality management. Rated 380 V, IP30 enclosure (IP54/IP66 outdoor options available on request). Suitable for indoor substations, motor control centers (MCC), industrial plants, and building power distribution.
Outdoor LV Switchgear Series
Outdoor low-voltage switchgear enclosures are engineered for exposed, high-severity corrosive environments: IP66 ingress protection, C5-M corrosion resistance, 316L stainless hardware, and 25 kA short-circuit withstand, with rain hoods and anti-condensation features as standard options. Rated 380 V, IP66 enclosure. Suitable for oil & gas wellheads, coastal and marine installations, chemical plants, and outdoor substations.
Instant Selection & Quote Calculator
Select your specifications to get an estimated price instantly.
More options(6)
Certification
The values below are computed from what you selected above. Anything that cannot be computed yet is shown as an em dash — never as zero.
Iₙ = S / (√3·U) · I_sc = 100·Iₙ / uₖ · S_sc = √3·U·I_sc · I_p = k·Iₖ
Still required to complete the calculation: rated capacity S, impedance voltage uₖ, short-time or peak withstand current.
Per-model values (P0 / Pk / uₖ declared by the factory, losses, noise, temperature rise, dimensions, weight) are not in the product library: those rows stay at an em dash until the factory parameter sheet is supplied. An em dash means the value is unavailable — it is never rendered as zero.
Reference prices are for estimation only and do not constitute a formal offer.
3 · Get this quote
We will reply with your latest quote instantly.
Related Engineering Calculators
Free sizing and pricing tools for this product category.
Application Scenarios
Manufacturing
MCCs for production lines with motor protection.
Commercial
Main and floor distribution for buildings.
Water Treatment
Pumping station switchgear.
Power Factor
Automatic capacitor compensation.
Emergency Power
ATS for generator integration.
Building Management
BMS-integrated distribution panels.
Technical Advantages
Modular
Standardized for easy expansion.
Protection
Complete overload and short-circuit safety.
Monitoring
Real-time parameter tracking.
Safety
IP4X finger-safe with arc protection.
FAQ - Low Voltage Switchgear
What is the difference between a distribution board and an MCC?
Fixed or withdrawable switchgear - which should I choose?
What is Form separation in switchgear?
How is the busbar rating selected?
What is the minimum order quantity (MOQ) for Low Voltage Switchgear?
What is the delivery time for Low Voltage Switchgear?
Related Product Categories
Dry Type Transformers
Dry-type transformers are essential components in modern ele
Oil Immersed Transformers
Oil-immersed transformers are the workhorse of power distrib
Special Isolation Control Transformers
Isolation and control transformers provide galvanic separati
Amorphous Alloy Transformers
Amorphous alloy transformers are the lowest-loss choice for
Box Type Substations
Box-type substations, also known as prefabricated substation
Reactors
Reactors are inductive components that shape power quality b
Cable Branch Boxes
Cable branch boxes are sealed distribution points that split
Ring Main Units
Ring main units (RMUs) are compact, sealed switchgear that f
High Voltage Switchgear
High-voltage switchgear performs switching, protection, and
Single Phase Transformers
Single-phase control transformers provide galvanic isolation
Three Phase Transformers
Three-phase dry-type transformers step down, isolate, or ada
Voltage Regulators
Automatic voltage regulators (stabilizers) keep output volta
Variable Transformers
Variable auto-transformers deliver continuous, stepless AC v
Inverters
Pure sine wave inverters convert DC battery power (12 V/24 V
Dc Power Supplies
Switching DC power supplies convert AC mains into regulated
Battery Chargers
Intelligent battery chargers restore and maintain lead-acid
Motor Starters
Motor starters control three-phase motor energization with r
Ups
Online double-conversion UPS systems continuously regenerate
Power Capacitors
Self-healing power capacitors provide power factor correctio
Solar Pv Modules
Solar PV modules convert sunlight into direct current and ar
String Inverters
String grid-tie inverters turn the DC output of PV modules i
Hybrid Inverters
Hybrid solar inverters combine a grid-tie inverter and a bat
Energy Storage Batteries
Energy storage batteries store surplus solar or off-peak pow
Pcs Energy Storage
Power conversion systems (PCS) are the bidirectional heart o
Battery Management Systems
The battery management system is the safety and intelligence
Ess Fire Suppression
Fire suppression for energy storage must act in the seconds
Pv Mounting Structures
Mounting structures hold the array to the roof or ground for
Dc Cables Connectors Spd
The DC side of a PV plant is only as reliable as the cables,
Monitoring Scada Communication
A solar or storage plant that cannot be observed and control
Cables Trays Grounding
The AC side and the structural grounding of a plant are easy
Energy Storage Containers
The energy storage container packages battery, power convers
Busway
Busway (bus duct) systems distribute high-current power from
Ev Charging Stations
EV charging stations supply electric vehicles with AC Level
Pole Mounted Switchgear
Pole-mounted switchgear provides outdoor switching, protecti
Svg Svc
Static Var Generator (SVG) and Static Var Compensator (SVC)
Active Harmonic Filters
Active Harmonic Filters (APF), also called active power filt
Ats Transfer Switches
Automatic Transfer Switches (ATS) automatically transfer the
Diesel Generators
Diesel generator sets provide reliable prime or standby powe
Eps Emergency Power
EPS (Emergency Power Supply) systems provide battery-backed
Wind Turbines
QDTB onshore wind turbines span the 2 MW, 3 MW and 5 MW clas
Scada Automation
Substation SCADA and secondary automation equipment for MV/L
American Pad Mounted Transformers
American pad-mounted transformers (ZGS series) place a 12 kV
Need help?
All specifications and dimensions can be customized upon request
Fixed vs Withdrawable vs Motor Control Center: How to Choose
| Fixed-Type Distribution Panel | Withdrawable Switchgear | Motor Control Center (MCC) | |
|---|---|---|---|
| Access for maintenance | Busbar de-energised before a device can be worked on | Device racked out while the busbar stays live | Each starter bucket withdrawn on its own |
| Form separation | Lower form separation, with devices in a common compartment | Higher form separation, with separate cable and busbar zones | Form 4, with a compartment per starter |
| Devices | MCCBs and ACBs fixed to the busbar | ACBs and MCCBs on withdrawable cassettes | Contactors, overloads and soft starters |
| Downtime | Whole panel out for a device replacement | One circuit out for a replacement | One motor out for a replacement |
| Cost | Lowest per outgoing way | Higher, driven by cassettes and interlocks | Highest, because every bucket is a tested unit |
| Space | Compact for many small ways | Deeper, to house the racking mechanism | Deep, with separate cable and busbar zones |
| Typical application | Commercial distribution and small plants | Main LV boards in industrial plants | Process plants with many motors |
Where QDTB® Low-Voltage Switchgear Is Specified
Low-voltage switchgear delivers the final stage of distribution, so it is specified in every plant room that has to split a supply between feeders: manufacturing lines, water treatment works and the building management boards of commercial estates. Busbar rating, Form separation and the fixed or withdrawable choice all follow from how often the operator expects to work on the panel live.
Process plants with many motors specify motor control centres, because one starter bucket can be withdrawn and replaced without touching the busbar or stopping the rest of the line. Capacitor banks and reactive compensation panels are built on the same platform, with the switching duty and ventilation set by the bank rating.
Emergency power schemes add automatic transfer switch panels and split the LV board into essential and non-essential sections. The standby generator then carries only the loads that must survive an outage, which keeps its rating — and its fuel consumption — proportionate to the critical load.
Panels are rated 0.22-0.4 kV to IEC 61439 and GB 7251, with busbars from 400 A to 6,300 A. Internal separation to Forms 1-4, the device schedule and the metering points are agreed with the operator before the panel is released to production.
Frequently Asked Questions
What is the difference between a distribution board and an MCC?
A distribution board feeds lighting and general circuits, while an MCC (motor control center) houses motor starters, contactors, and drives for industrial motor loads.
Fixed or withdrawable switchgear - which should I choose?
Fixed switchgear is compact and economical but needs de-energization for maintenance. Withdrawable switchgear lets a unit be racked out and serviced without affecting other circuits.
What is Form separation in switchgear?
Form separation (Forms 1-4) defines internal partitioning between busbars, devices, and terminals for safety and maintenance. Higher forms improve safety but increase size and cost.
How is the busbar rating selected?
The busbar rating is the connected load multiplied by the demand factor plus a 25% margin. QDTB busbars are available from 400 A to 6,300 A.
What is the minimum order quantity (MOQ) for Low Voltage Switchgear?
One unit for standard products. Custom-designed equipment is quoted on specifications — send your parameters or drawings and our sales team will confirm the MOQ for your configuration.
What is the delivery time for Low Voltage Switchgear?
Standard units are delivered in 30-45 days. Custom or large-capacity units follow a project-specific schedule confirmed at quotation. Rush orders can be accommodated for urgent projects.
