Oil-Immersed Transformers Overview
Oil-immersed transformers are the workhorse of power distribution worldwide — in IEC markets the 10kV and 11kV classes carry the bulk of distribution capacity — and remain the default choice wherever capacity, overload capability, and cost per kVA matter most. QDTB supplies oil-filled transformers from 10 kVA to 5,000 kVA, up to 35 kV per IEC 60076 and GB 1094, with efficiency grades evolving from S11 through S13 to the latest S20. The insulating oil does double duty - cooling the windings and suppressing partial discharge - which is why oil units handle higher continuous and short-time overloads than dry-type of the same rating. Options include hermetic sealing, on-load tap changers, and amorphous alloy cores for the lowest no-load loss.
Available Series
S Series
The S series three-phase oil-immersed distribution transformers serve North American markets, operating at 60Hz with standard primary voltages of 480V and secondary 240V per IEEE C57 / ANSI C84.1 standards. Rated 10–5000 kVA, 0.48–34.5 kV primary and 0.208–0.48 kV secondary, mineral-oil insulation with 65 K temperature rise. Suitable for utility distribution networks, substations, solar farms, and industrial power systems.
SZ Series
The SZ series oil-immersed transformers integrate an on-load tap changer (OLTC) for automatic voltage regulation under load, available across 6kV, 10kV and 35kV primary voltages per IEC 60076. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, mineral-oil insulation with 65 K temperature rise. Suitable for utility distribution networks, substations, solar farms, and industrial power systems.

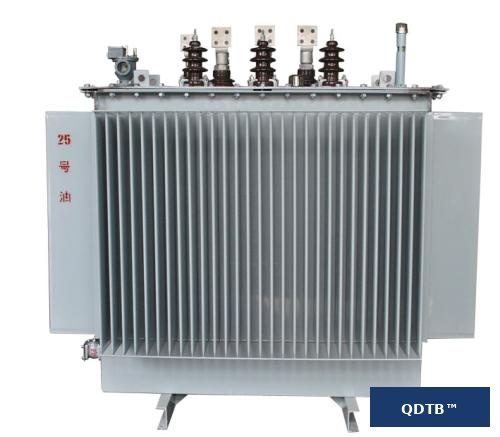

S11-M Series
The S11-M series features sealed construction with Level 11 energy efficiency, providing enhanced protection against moisture and environmental contaminants. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, mineral-oil insulation with 65 K temperature rise. Suitable for utility distribution networks, substations, solar farms, and industrial power systems.

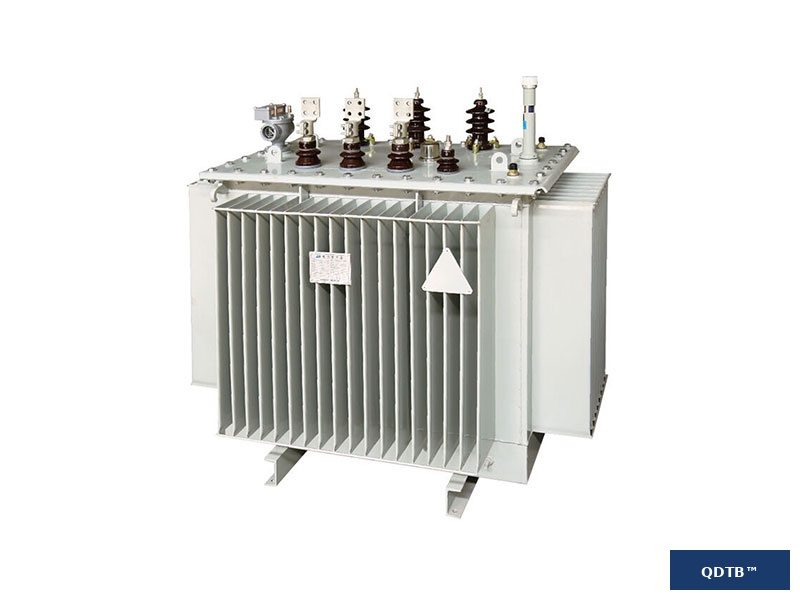

S13-M Series
The S13-M series delivers enhanced energy efficiency with Level 13 rating, combining sealed construction with improved performance. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, mineral-oil insulation with 65 K temperature rise. Suitable for utility distribution networks, substations, solar farms, and industrial power systems.

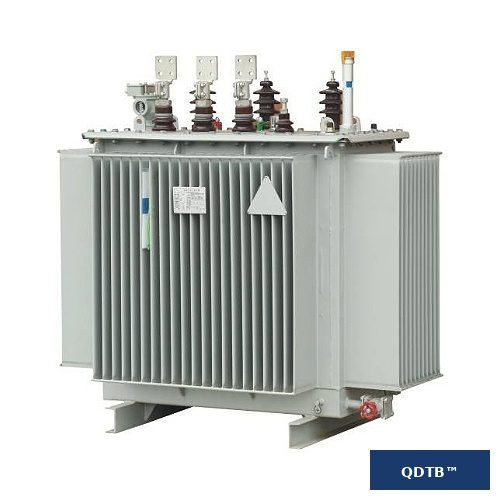

S20-M Series
The S20-M series represents the highest energy efficiency class for oil-immersed transformers, achieving Level 20 rating with exceptional performance. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, mineral-oil insulation with 65 K temperature rise. Suitable for utility distribution networks, substations, solar farms, and industrial power systems.

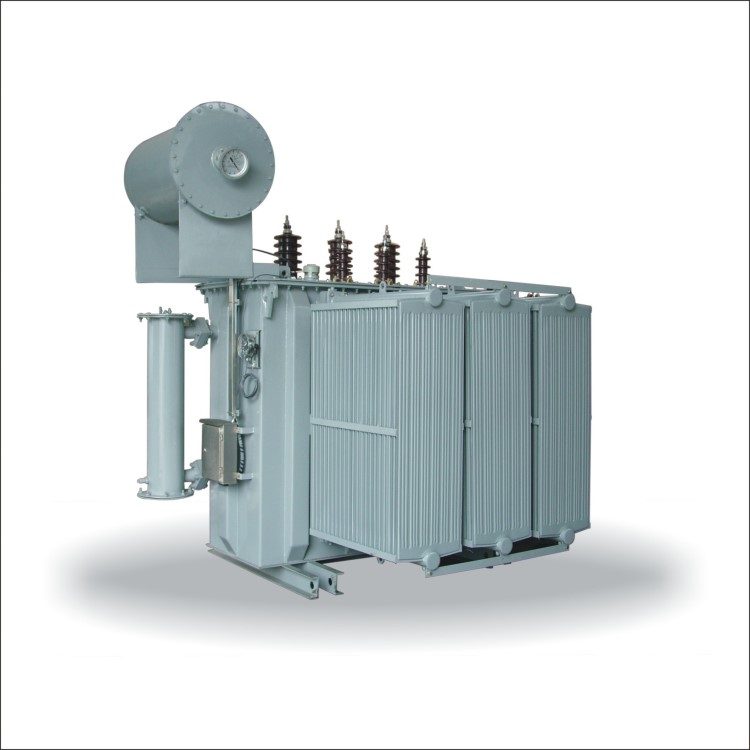

S11 Series
The S11 series represents standard oil-immersed distribution transformers meeting Level 11 energy efficiency standards, widely used in power distribution networks. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, mineral-oil insulation with 65 K temperature rise. Suitable for utility distribution networks, substations, solar farms, and industrial power systems.

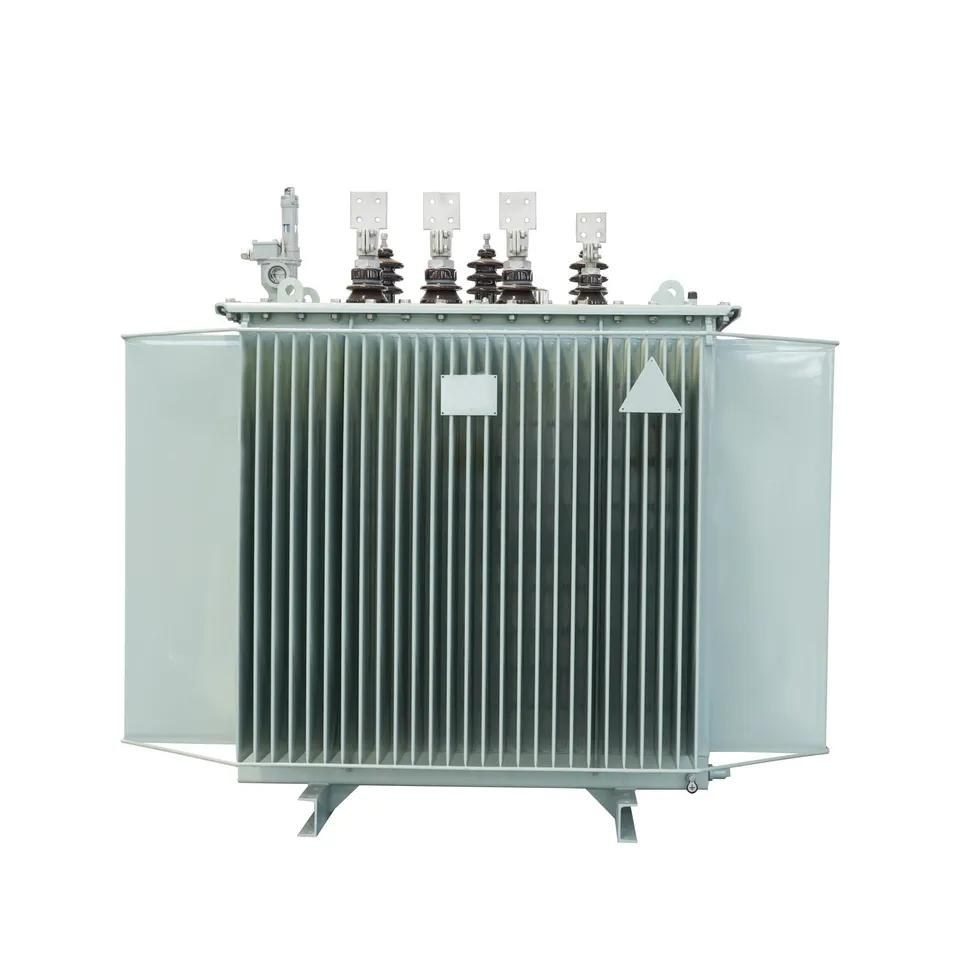

SL11 Series
The SL11 series features aluminum winding construction with Level 11 energy efficiency, offering cost-effective solutions for power distribution. Rated 10–5000 kVA, 0.48–35 kV primary and 0.208–0.48 kV secondary, mineral-oil insulation with 65 K temperature rise. Suitable for utility distribution networks, substations, solar farms, and industrial power systems.
Renewable Step-Up Transformers Series
Renewable step-up transformers raise the low-voltage output of photovoltaic and wind generation to the medium-voltage grid connection, with low no-load and load losses for high annual energy yield. Rated 100–5000 kVA, 0.4/0.69 kV low voltage to 10–35 kV high voltage, mineral-oil or sealed construction with 65 K temperature rise. Suitable for solar farms, wind farms, and energy-storage interconnection.
Wound Core Transformers Series
Three-dimensional wound core (triangular core) oil-immersed transformers use a continuously wound core forming a triangular (delta) magnetic circuit with no air gaps, giving lower no-load loss, lower noise and a more compact, lighter tank than conventional stacked-core designs. Rated 30–2500 kVA in S13/S20-M·RL grades, 6–35 kV primary, built to IEC 60076 for energy-saving distribution applications.
Instant Selection & Quote Calculator
Select your specifications to get an estimated price instantly.
More options(6)
Certification
The values below are computed from what you selected above. Anything that cannot be computed yet is shown as an em dash — never as zero.
Iₙ = S / (√3·U) · I_sc = 100·Iₙ / uₖ · S_sc = √3·U·I_sc · I_p = k·Iₖ
Still required to complete the calculation: rated capacity S, impedance voltage uₖ, short-time or peak withstand current.
Per-model values (P0 / Pk / uₖ declared by the factory, losses, noise, temperature rise, dimensions, weight) are not in the product library: those rows stay at an em dash until the factory parameter sheet is supplied. An em dash means the value is unavailable — it is never rendered as zero.
Read-only: no price factor, not part of the sum — the loss-grade cost is already carried by the efficiency (subtype) base price, so charging here would double-bill. Values come from the product library type-test data, interpolated between published capacities; grades the library does not cover show an em dash, never zero.
S13 系列（产品库 S13-M / 卷铁芯 S13-M.RL，Class 3）
Reference prices are for estimation only and do not constitute a formal offer.
3 · Get this quote
We will reply with your latest quote instantly.
