Diesel Generator Sets
3 Series · 19 Models
Product Images
Images are for illustration purposes only
Diesel Generator Sets Overview
Diesel generator sets provide reliable prime or standby power generation. QDTB diesel generators are rated 500–2000 kVA at 50/60 Hz with 400 V to 10.5 kV output, available in open-frame, silent (soundproof canopy) and containerized configurations for industrial plants, data centers, hospitals and remote or temporary power applications.
Available Series
Open Frame Series

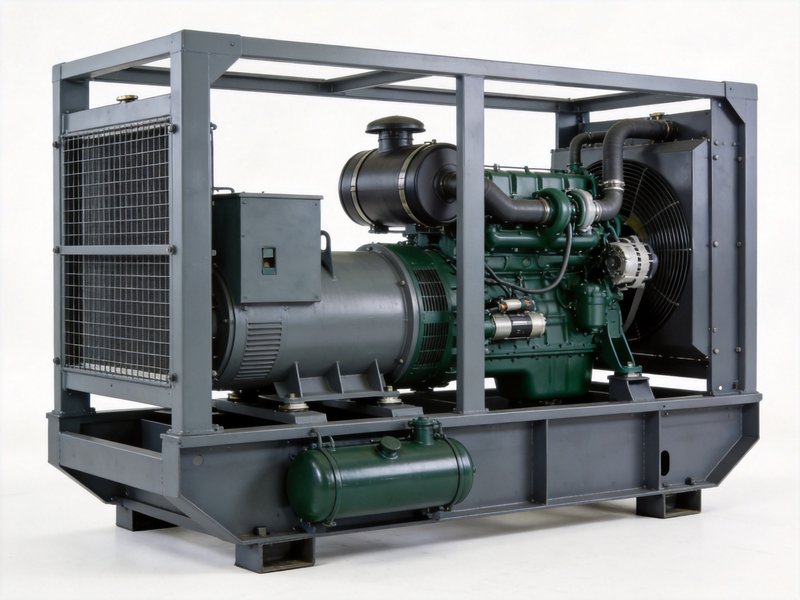

The open-frame diesel generator set mounts the engine, alternator and control panel on a heavy-duty steel base frame for indoor installation in a dedicated plant room. Rated 500–2000 kVA at 50/60 Hz with output voltages of 400 V up to 10.5 kV, it provides reliable prime or standby power for industrial and utility applications where weather protection is provided by the building.
Silent Series

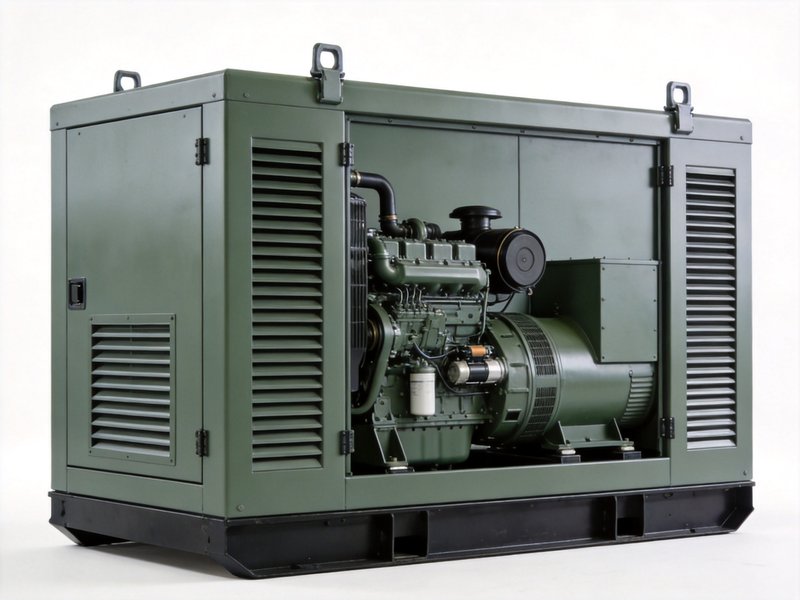

The silent diesel generator set is enclosed in a soundproof weatherproof canopy that reduces operating noise for outdoor installation or noise-sensitive environments. Rated 500–2000 kVA at 50/60 Hz with 400 V to 10.5 kV output, it is used where the set must operate close to occupied buildings, hospitals or residential areas.
Container Series

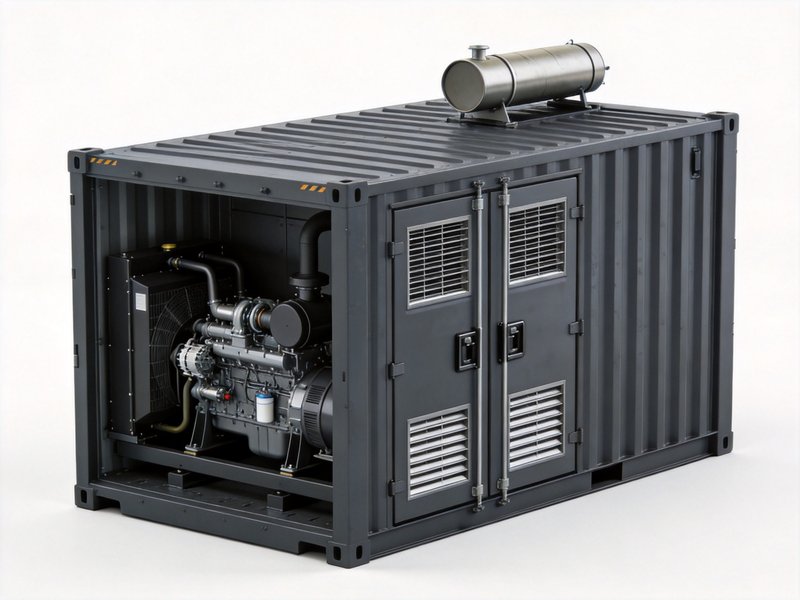

The containerized diesel generator set houses the generator, fuel system, cooling and controls in a standard ISO container for rapid deployment and all-weather operation. Rated 500–2000 kVA at 50/60 Hz with 400 V to 10.5 kV output, it is ideal for temporary power, remote sites and rapid-response emergency power where a self-contained, transportable package is required.
Instant Selection & Quote Calculator
Select your specifications to get an estimated price instantly.
| Base price (interpolation) | $60,500 |
| × Product factor | ×1.0000 |
| × Country factor | ×1.0000 |
| × Copper-linked factor | ×1.0000 |
| + Options / accessories | $0 |
Complete equipment — no winding copper linkage
Reference prices are for estimation only and do not constitute a formal offer.
We will reply with your latest quote instantly.
Related Engineering Calculators
Free sizing and pricing tools for this product category.
Application Scenarios
Industrial Plants
Standby and prime power for factories and continuous process lines.
Data Centers
Backup power with fast start and load acceptance for critical IT loads.
Hospitals & Infrastructure
Life-safety and essential services power during outages.
Remote & Temporary Sites
Containerized sets for mining, oilfield and construction power.
Technical Advantages
500–2000 kVA Range
From medium standby sets to multi-megawatt prime power stations.
50 / 60 Hz Output
Matched to regional grid frequency requirements.
400 V – 10.5 kV
Low-voltage and medium-voltage output configurations.
Three Enclosure Options
Open-frame, silent canopy and containerized packages.
FAQ - Diesel Generator Sets
What is the difference between prime and standby power?
How is a generator set sized?
What is a containerized generator?
What output voltages are available?
