Variable Transformers
6 Series · 66 Models
Product Images
Images are for illustration purposes only

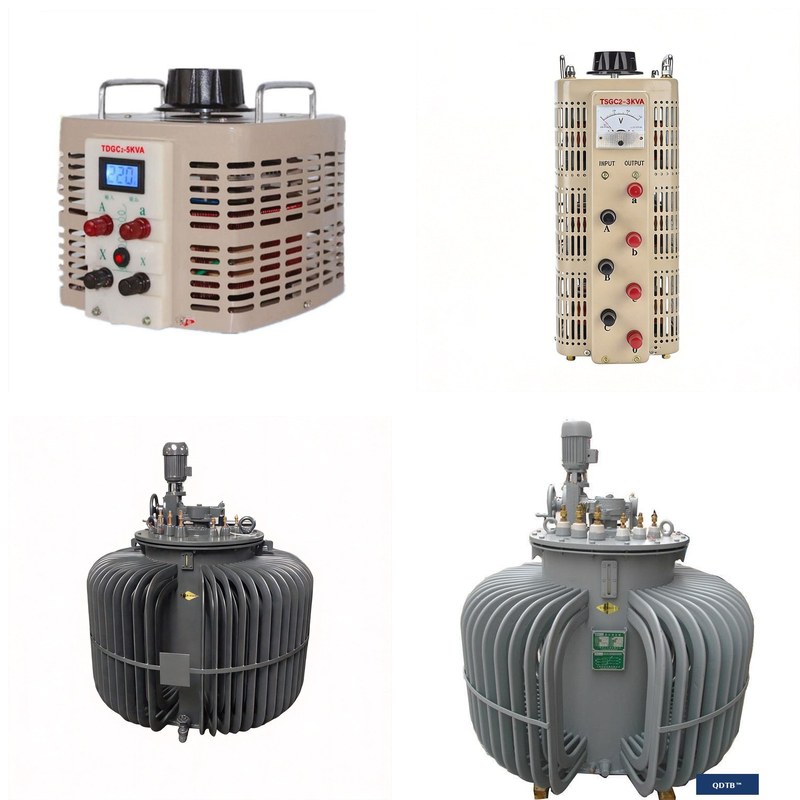

Variable Transformers Overview
Variable auto-transformers deliver continuous, stepless AC voltage adjustment through a carbon brush moving over a toroidal winding. QDTB units adjust 0-250 V single-phase (TDGC2) and 0-430 V three-phase (TSGC2) from 0.5 kVA to 30 kVA, with smooth, precise output. Typical uses include laboratory testing, electric furnace temperature control, stage lighting dimming, and instrument calibration. DTY series covers special applications and TSZ2 premium requirements.
Available Series

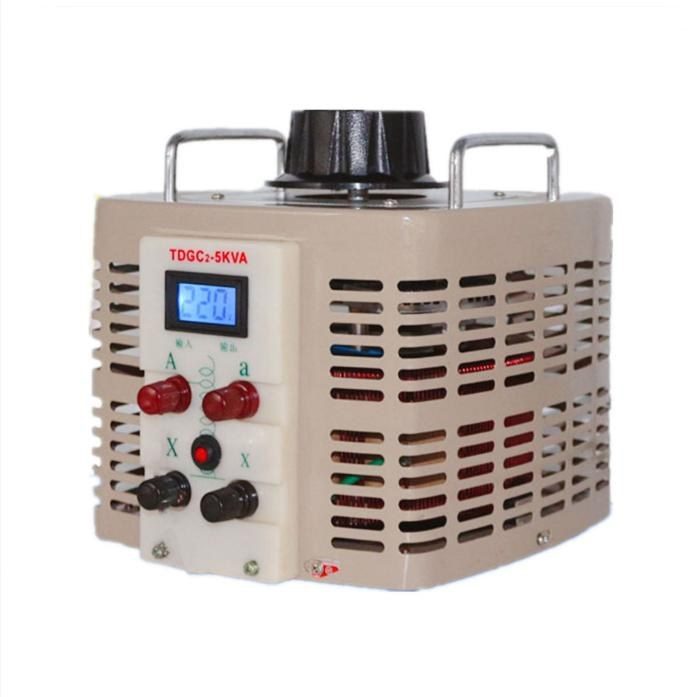

TDGC2 Series
The TDGC2 series single-phase contact voltage regulators provide continuously adjustable output voltage from 0 to 250V. Used extensively in laboratories, testing, and industrial applications.

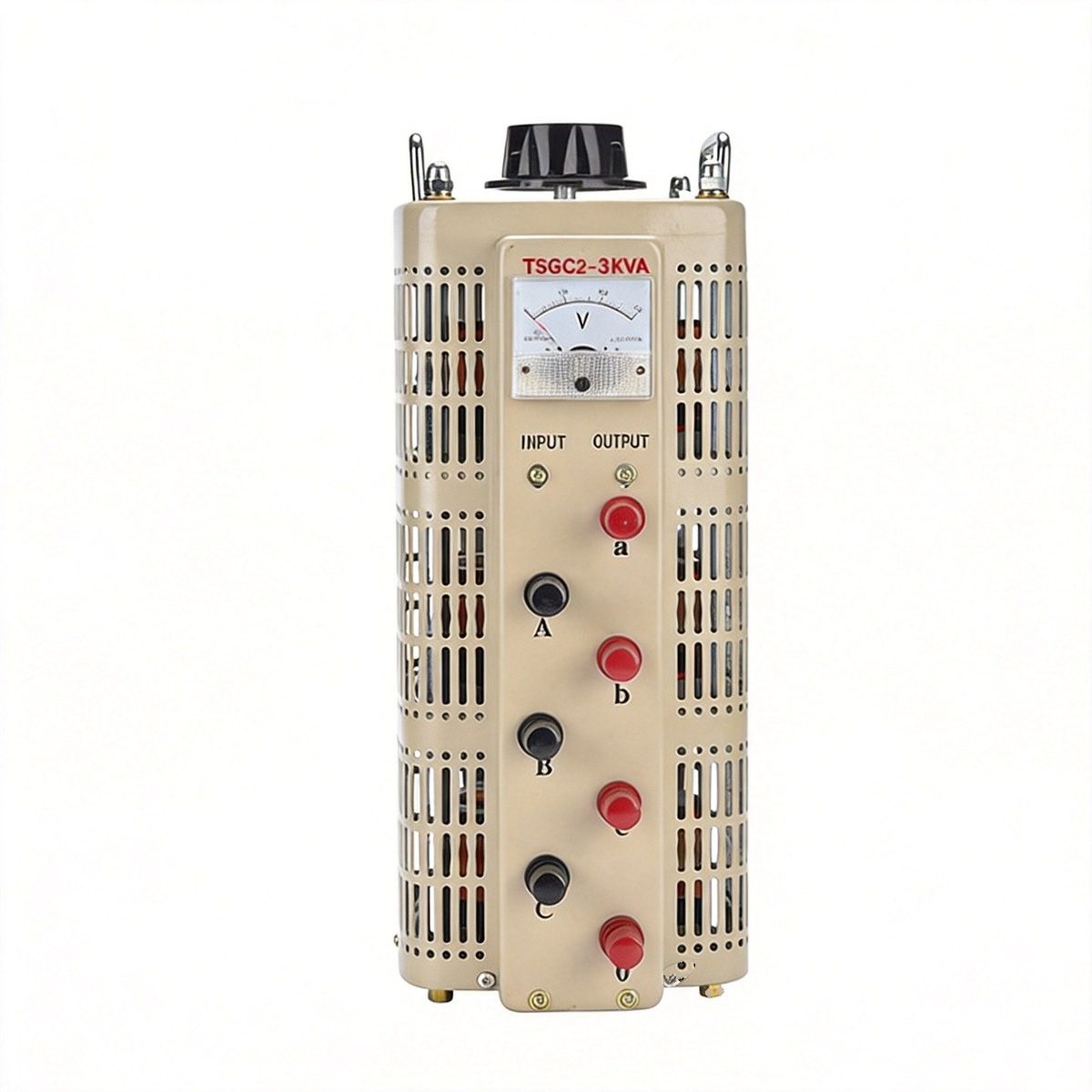

TSGC2 Series
The TSGC2 series three-phase contact voltage regulators provide continuously adjustable output voltage from 0 to 430V for three-phase power applications.

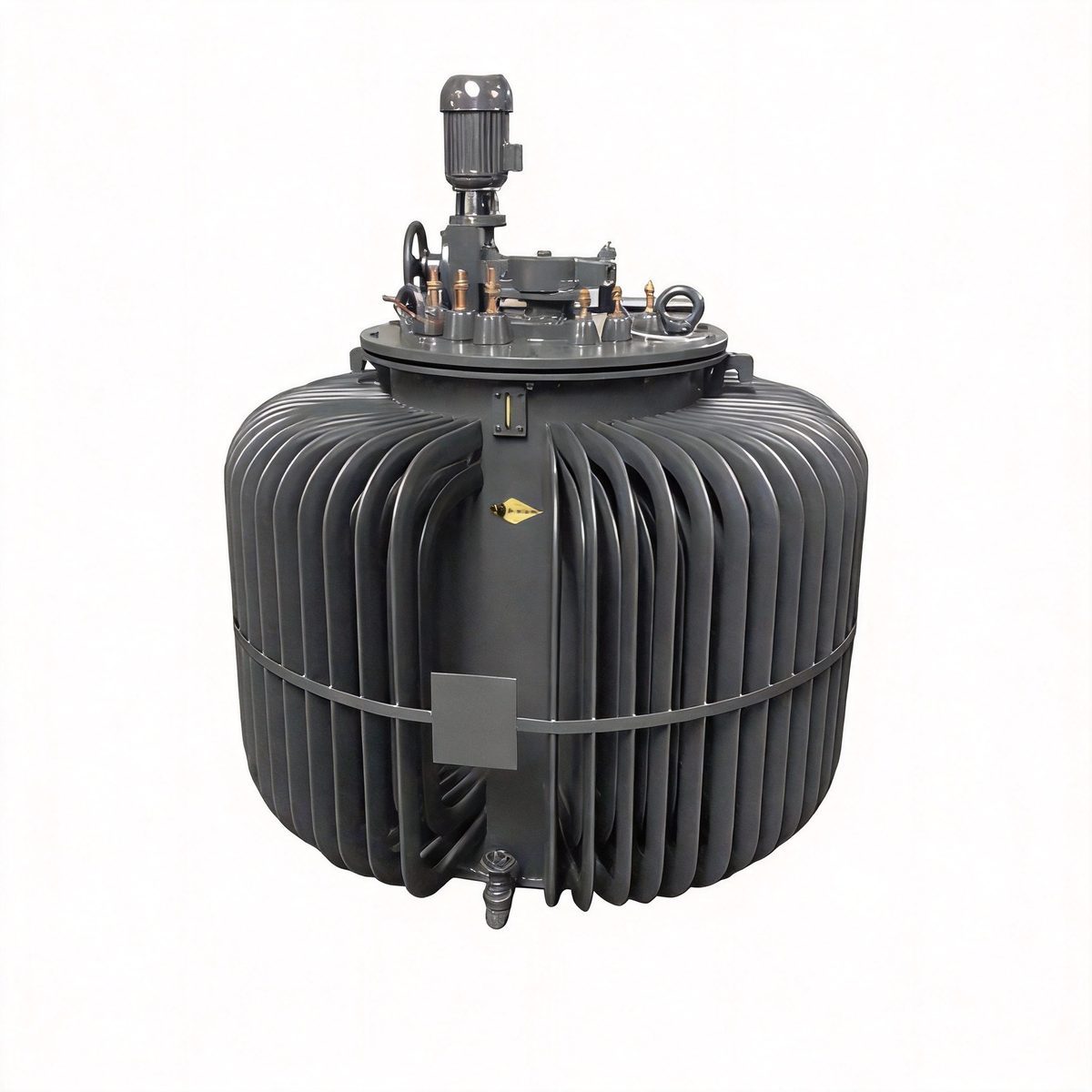

TSJA-TDJA Series
The TSJA (three-phase) and TDJA (single-phase) series oil-immersed variable transformers provide high-capacity continuously adjustable voltage output for heavy-duty industrial applications.

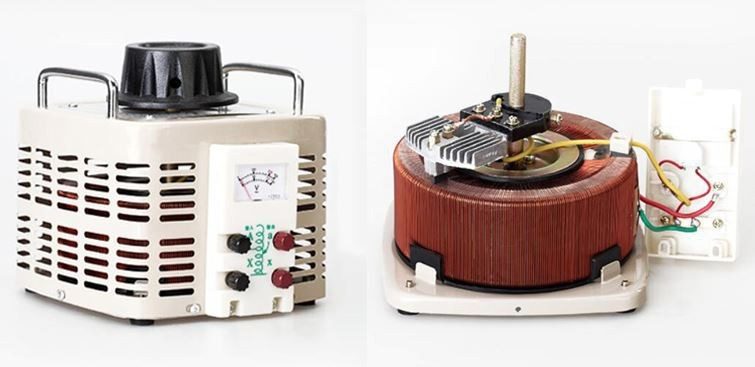

DTY Series
The DTY series intelligent contact voltage regulators feature digital display and microprocessor control for precise voltage adjustment with enhanced safety features.

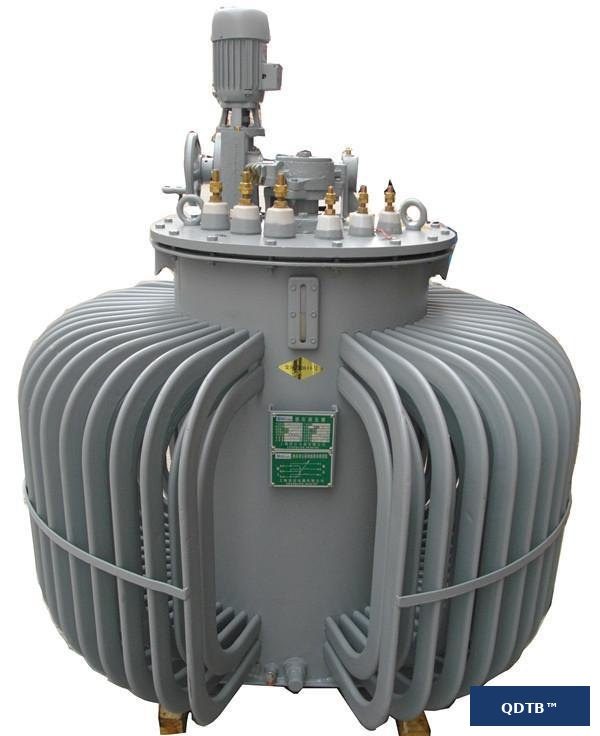

TSZ2 Series
The TSZ2 series three-phase magnetic contact voltage regulators use electromagnetic principle for smooth voltage regulation with high reliability and long service life.
SCR Power Regulators Series
SCR (thyristor) power regulators provide stepless power control for resistive heating loads by phase-angle or zero-cross firing of thyristors. Rated 10–2000 A for single-phase and three-phase loads, they regulate power to electric heaters, furnaces and drying ovens with fast response and high efficiency.
Instant Selection & Quote Calculator
Select your specifications to get an estimated price instantly.
More options(4)
Certification
Reference prices are for estimation only and do not constitute a formal offer.
3 · Get this quote
We will reply with your latest quote instantly.
Related Engineering Calculators
Free sizing and pricing tools for this product category.
Application Scenarios
Laboratory Testing
Provides adjustable AC voltage for testing devices across their rated input range.
Electric Furnace Control
Stepless temperature control for resistance furnaces and heating elements.
Stage Lighting
Smooth dimming of incandescent stage and studio lighting.
Instrument Calibration
Precise variable supply for calibrating meters, sensors and relays.
Motor Speed Control
Voltage adjustment for small single-phase and three-phase motor speed regulation.
Education & Training
Safe, adjustable AC source for teaching labs and demonstrations.
Technical Advantages
Stepless Adjustment
Continuous 0-250V (single-phase) or 0-430V (three-phase) output with no steps.
Smooth Carbon-Brush Contact
Carbon brush on a toroidal winding delivers precise, wear-resistant adjustment.
Toroidal Winding
Uniform flux distribution for low noise and compact size.
Wide Capacity Range
From 0.5 kVA lab units to 30 kVA industrial regulators.
FAQ - Variable Transformers
What is the difference between a variable transformer and a voltage regulator?
Can it run at full load continuously?
Should I choose single-phase or three-phase?
What is the minimum order quantity (MOQ) for Variable Transformers?
What is the delivery time for Variable Transformers?
Which standards and certifications do your Variable Transformers comply with?
Related Product Categories
Dry Type Transformers
Dry-type transformers are essential components in modern ele
Oil Immersed Transformers
Oil-immersed transformers are the workhorse of power distrib
Special Isolation Control Transformers
Isolation and control transformers provide galvanic separati
Amorphous Alloy Transformers
Amorphous alloy transformers are the lowest-loss choice for
Box Type Substations
Box-type substations, also known as prefabricated substation
Reactors
Reactors are inductive components that shape power quality b
Cable Branch Boxes
Cable branch boxes are sealed distribution points that split
Ring Main Units
Ring main units (RMUs) are compact, sealed switchgear that f
High Voltage Switchgear
High-voltage switchgear performs switching, protection, and
Low Voltage Switchgear
Low-voltage switchgear and motor control centers (MCCs) deli
Single Phase Transformers
Single-phase control transformers provide galvanic isolation
Three Phase Transformers
Three-phase dry-type transformers step down, isolate, or ada
Voltage Regulators
Automatic voltage regulators (stabilizers) keep output volta
Inverters
Pure sine wave inverters convert DC battery power (12 V/24 V
Dc Power Supplies
Switching DC power supplies convert AC mains into regulated
Battery Chargers
Intelligent battery chargers restore and maintain lead-acid
Motor Starters
Motor starters control three-phase motor energization with r
Ups
Online double-conversion UPS systems continuously regenerate
Power Capacitors
Self-healing power capacitors provide power factor correctio
Solar Pv Modules
Solar PV modules convert sunlight into direct current and ar
String Inverters
String grid-tie inverters turn the DC output of PV modules i
Hybrid Inverters
Hybrid solar inverters combine a grid-tie inverter and a bat
Energy Storage Batteries
Energy storage batteries store surplus solar or off-peak pow
Pcs Energy Storage
Power conversion systems (PCS) are the bidirectional heart o
Battery Management Systems
The battery management system is the safety and intelligence
Ess Fire Suppression
Fire suppression for energy storage must act in the seconds
Pv Mounting Structures
Mounting structures hold the array to the roof or ground for
Dc Cables Connectors Spd
The DC side of a PV plant is only as reliable as the cables,
Monitoring Scada Communication
A solar or storage plant that cannot be observed and control
Cables Trays Grounding
The AC side and the structural grounding of a plant are easy
Energy Storage Containers
The energy storage container packages battery, power convers
Busway
Busway (bus duct) systems distribute high-current power from
Ev Charging Stations
EV charging stations supply electric vehicles with AC Level
Pole Mounted Switchgear
Pole-mounted switchgear provides outdoor switching, protecti
Svg Svc
Static Var Generator (SVG) and Static Var Compensator (SVC)
Active Harmonic Filters
Active Harmonic Filters (APF), also called active power filt
Ats Transfer Switches
Automatic Transfer Switches (ATS) automatically transfer the
Diesel Generators
Diesel generator sets provide reliable prime or standby powe
Eps Emergency Power
EPS (Emergency Power Supply) systems provide battery-backed
Wind Turbines
QDTB onshore wind turbines span the 2 MW, 3 MW and 5 MW clas
Scada Automation
Substation SCADA and secondary automation equipment for MV/L
American Pad Mounted Transformers
American pad-mounted transformers (ZGS series) place a 12 kV
Need help?
All specifications and dimensions can be customized upon request
Variable Auto-Transformer vs SCR Regulator vs Servo-Motor AVR: How to Choose
| Variable Auto-Transformer (TDGC2) | SCR Power Regulator | Servo-Motor AVR | |
|---|---|---|---|
| Adjustment | Manual dial, stepless, set by the operator | Electronic phase-angle control from a command signal | Automatic motor drive that follows the mains |
| Control source | Hand set, with no feedback loop | Analogue or digital command from a controller | Internal feedback holding a fixed output |
| Output range | Zero up to the full winding voltage | Zero to full voltage, in fine electronic steps | A narrow trim around the nominal voltage |
| Load type | Test benches, furnaces, lighting and calibration work | Heaters and resistive loads under closed-loop control | Equipment that must stay at nominal voltage |
| Distortion | None added, the waveform passes through | Switching adds harmonic content | None added |
| Wear parts | Carbon brush and track need periodic checks | No moving parts | Brush and servo motor |
| Typical application | Laboratories and training | Furnace and oven temperature control | Mains stabilisation for sensitive loads |
Where QDTB® Variable Transformers Are Specified
Variable auto-transformers are specified where an engineer has to dial a voltage rather than accept one: laboratory testing, instrument calibration and education benches, where the output is swept from zero to the full winding voltage and the waveform must stay clean. The stepless carbon-brush contact is what makes a slow, continuous sweep possible without tap steps.
Electric furnace and oven control uses the three-phase units to set the heating voltage directly, and stage-lighting dimming uses the same principle on a smaller scale. In both cases the load is resistive and the operator wants a predictable voltage rather than a closed-loop controller.
Motor speed control on legacy equipment is another field use, where the variable transformer sets the voltage applied to the motor and the operator accepts the reduced torque that comes with it. Where full torque at low speed is needed, a drive is the correct device and the variable transformer is not.
Units cover 0.5 kVA to 30 kVA in the standard single-phase and three-phase lines, extending to 500 kVA across the range. Keep the brush surface clean and derate slightly for continuous duty at full rating.
Frequently Asked Questions
What is the difference between a variable transformer and a voltage regulator?
A variable transformer is manually adjusted to set an output voltage. A voltage regulator automatically maintains output within a tolerance as input varies.
Can it run at full load continuously?
Yes, within the rated capacity. Keep the brush surface clean and derate slightly for long continuous runs.
Should I choose single-phase or three-phase?
Use TDGC2 (single-phase) for single loads, TSGC2 (three-phase) for balanced three-phase systems.
What is the minimum order quantity (MOQ) for Variable Transformers?
One unit for standard products. Custom-designed equipment is quoted on specifications — send your parameters or drawings and our sales team will confirm the MOQ for your configuration.
What is the delivery time for Variable Transformers?
Standard units are delivered in 30-45 days. Custom or large-capacity units follow a project-specific schedule confirmed at quotation. Rush orders can be accommodated for urgent projects.
Which standards and certifications do your Variable Transformers comply with?
Each unit is designed to the IEC, IEEE or GB standard your project specifies. All QDTB® equipment is ISO 9001 certified and CE marked, and the company operates ISO 9001, ISO 14001 and ISO 45001 management systems.
