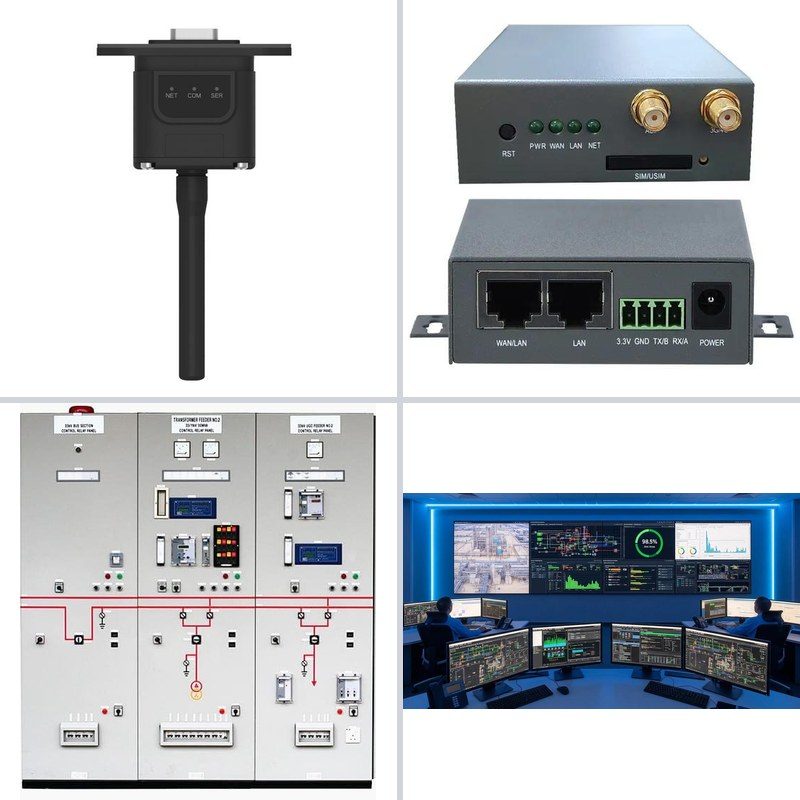

Monitoring, Protection & SCADA
4 Product Series · 4 Models available
A solar or storage plant that cannot be observed and controlled loses money to silent faults. QDTB monitoring and SCADA products span data gateways, data collectors, protection relays and full supervisory control systems, gathering real-time generation, voltage, current and alarm data from inverters, meters and batteries. Multi-protocol support — Modbus, MQTT, IEC 61850 and more — unifies equipment from different vendors into one platform, while protection relays add the fault detection and tripping needed for grid-code compliance. Remote operation and maintenance, alarm management and reporting keep asset managers in control of fleets spread across multiple sites and time zones.
Specifications Range
All specifications and dimensions can be customized upon request
| Key parameters | Model Range |
|---|---|
| Interface | RS485, Ethernet, 4G, WiFi, RS485, RS232, RS485, Ethernet, Ethernet, 4G |
| Uplink Protocol | Modbus, MQTT, Modbus, IEC 104, Modbus, IEC 61850, IEC 61850, IEC 104, MQTT |
| Device Capacity | 1–60 |
| Communication | 4G, Ethernet, RS485, Ethernet, Ethernet, optical fiber ring, Optical fiber ring, Ethernet |
| Monitoring | Real-time monitoring, Alarm, Report statistics, Remote O&M, Real-time monitoring, Alarm, Report statistics, Real-time monitoring, Alarm |
Available Series

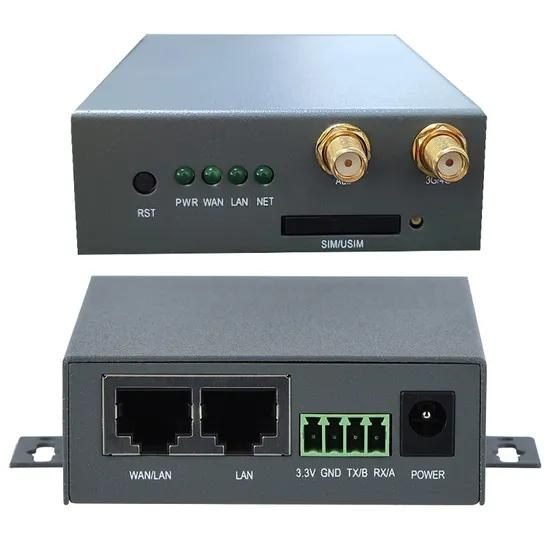

Gateway
→Gateway Series — Multi-Protocol Data Gateways
Communication gateways concentrate inverter, meter and sensor data onto a single protocol, bridging RS485, Ethernet, 4G and WiFi to the monitoring cloud.
Data-collector
→Data-Collector Series — High-Density Data Loggers
Data collectors log high-frequency generation, voltage and current data from large arrays, buffering locally and forwarding to SCADA or the cloud.

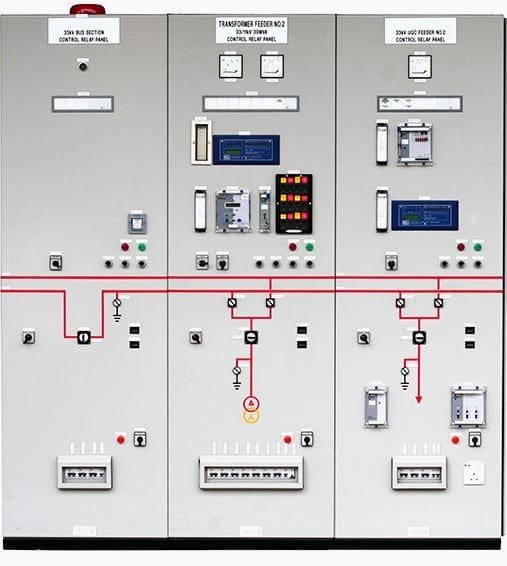

Protection-relay
→Protection-Relay Series — Grid-Code Protection
Protection relays implement the under/over-voltage, under/over-frequency and islanding protection required for safe grid connection.

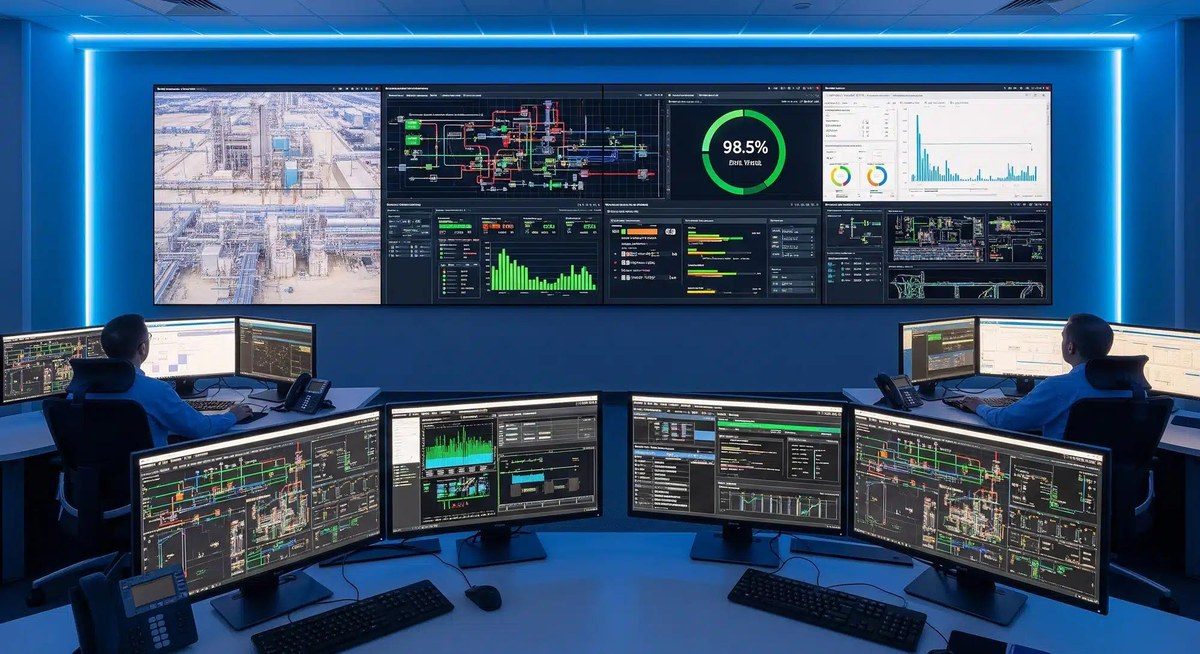

SCADA
→SCADA Series — Supervisory Control Systems
Full supervisory control and data acquisition systems that coordinate PV, storage and loads, with operator interfaces, trending and remote dispatch.
Application Scenarios
Plant Monitoring
Gateways and collectors stream performance data from every inverter and meter to one platform.
Remote O&M
Cloud dashboards and alarm push enable fault diagnosis and firmware updates without site visits.
Grid-Code Compliance
Protection relays implement under/over-voltage and frequency tripping required by utilities.
Energy Management
SCADA coordinates PV, storage and loads to optimise self-consumption and demand charges.
Multi-Site Fleets
Centralised supervision of distributed rooftops and plants from a single control room.
Substation Integration
IEC 61850 and Modbus interfaces tie plants into utility SCADA and dispatch systems.
Technical Advantages
Multi-Protocol Support
Modbus, MQTT, IEC 61850 and REST unify equipment from different manufacturers.
Real-Time Alarm Management
Threshold alarms, event logging and push notifications shorten fault response time.
Protection Relay Functions
Voltage, frequency and islanding protection for grid-code and safety compliance.
Remote Control & Firmware
Remote parameter setting and firmware updates reduce truck rolls and downtime.
Frequently Asked Questions
What is the difference between a gateway and a SCADA system?
A gateway concentrates device data onto one protocol; SCADA adds supervisory control, alarms, trending and operator interfaces on top.
Which protocols do you support?
Modbus TCP/RTU, MQTT, IEC 61850, and standard REST/cloud interfaces, covering most inverter and meter vendors.
Can I monitor multiple sites from one place?
Yes, our cloud platform aggregates fleets of distributed plants into a single dashboard with per-site drill-down.
Why do I need a protection relay?
Utilities require under/over-voltage, under/over-frequency and islanding protection; a certified relay is mandatory for grid connection in most markets.
Can the system send alarms to my phone?
Yes, alarm push via app, email and SMS keeps operators informed in real time.
What is the minimum order quantity (MOQ) for Monitoring, Protection & SCADA?
One unit for standard products. Custom-designed equipment is quoted on specifications — send your parameters or drawings and our sales team will confirm the MOQ for your configuration.
Instant Selection & Quote Calculator
Select your specifications to get an estimated price instantly.
More options(6)
Certification
Reference prices are for estimation only and do not constitute a formal offer.
3 · Get this quote
We will reply with your latest quote instantly.
Solar System Configurator
Size your solar array, storage and balance-of-system, and get an instant bill of materials.
Need help?
All specifications and dimensions can be customized upon request
Gateway vs Data Collector vs Full SCADA: How to Choose
| Data Gateway | Data Collector | Full SCADA | |
|---|---|---|---|
| Scope | Concentrates device data onto one protocol | Collects from many devices across the plant | Supervisory control, alarms, reports and archiving |
| Protocols | Modbus and MQTT to the upstream platform | Multi-vendor protocols unified on one interface | IEC 61850 and IEC 60870-5-104 for the substation |
| Devices handled | A few inverters or meters on one bus | A whole rooftop or a small plant | Multiple plants and substations |
| Control ability | Read-only reporting in most installations | Read and limited write to the devices | Full supervisory control, with interlocks |
| Protection | None — protection is a separate relay | None, unless a relay is added | Protection relays integrated in the scheme |
| Deployment | DIN rail in the inverter or combiner cabinet | Cabinet at the plant with 4G or fibre backhaul | Server plus workstations, on site or hosted |
| Typical application | Remote O&M of a single site | Plant monitoring and grid-code reporting | Multi-site fleets and substation integration |
Where QDTB® Monitoring & SCADA Are Specified
Monitoring is specified because a plant that cannot be observed loses money to silent faults: an inverter derating in the afternoon, a string that stopped producing, a battery rack drifting out of balance. A gateway or data collector turns that data into something an operator can act on, and remote O&M is only possible once the data leaves the site.
Grid-code compliance adds protection relays to the same scheme, since utilities require under and over-voltage, frequency and islanding protection with a certified relay behind it. The relay is a separate device from the monitoring platform, even where both report into the same SCADA screen.
Multi-site fleets aggregate distributed plants into one dashboard with alarm push by app, email and SMS, so an asset manager watches a portfolio rather than a plant. Substation integration uses IEC 61850 and IEC 60870-5-104 where the utility's own control system has to see the plant.
The product set spans gateways, data collectors, protection relays and full supervisory systems. Modbus, MQTT, IEC 61850 and standard cloud interfaces cover most inverters, meters and batteries on the market, so the platform is not tied to one vendor.
Frequently Asked Questions
What is the difference between a gateway and a SCADA system?
A gateway concentrates device data onto one protocol; SCADA adds supervisory control, alarms, trending and operator interfaces on top.
Which protocols do you support?
Modbus TCP/RTU, MQTT, IEC 61850, and standard REST/cloud interfaces, covering most inverter and meter vendors.
Can I monitor multiple sites from one place?
Yes, our cloud platform aggregates fleets of distributed plants into a single dashboard with per-site drill-down.
Why do I need a protection relay?
Utilities require under/over-voltage, under/over-frequency and islanding protection; a certified relay is mandatory for grid connection in most markets.
Can the system send alarms to my phone?
Yes, alarm push via app, email and SMS keeps operators informed in real time.
What is the minimum order quantity (MOQ) for Monitoring, Protection & SCADA?
One unit for standard products. Custom-designed equipment is quoted on specifications — send your parameters or drawings and our sales team will confirm the MOQ for your configuration.
