Inverters (DC-AC) Overview
Pure sine wave inverters convert DC battery power (12 V/24 V/36 V/48 V) into clean, grid-quality 220 V AC. QDTB models span 0.5 kW to 10 kW at 50/60 Hz with conversion efficiency above 85% and automatic overload, short-circuit, over-temperature, and over-voltage protection. Pure sine wave output is compatible with sensitive electronics, motors, and inductive loads, serving solar systems, marine vessels, remote sites, backup power, and telecom.
Available Series

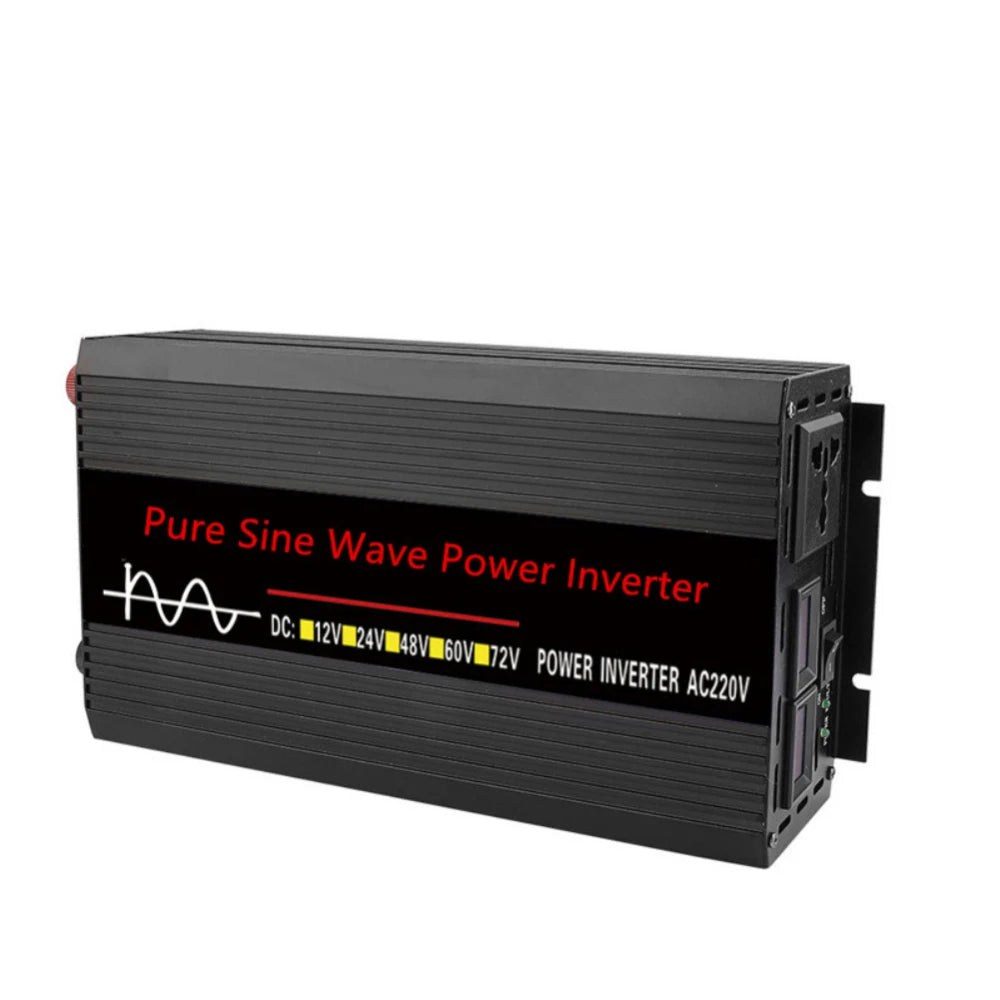

LY Series
The LY series pure sine wave inverters convert DC power to clean AC power with pure sine wave output, suitable for sensitive electronic equipment and grid-tied applications.
Low Frequency Power Inverters Series
Low-frequency power inverters convert 48V (or 24V) DC battery power to 220/230V AC with an isolation transformer, providing pure sine wave output and high surge capacity for motors and inductive loads. Rated 1–10 kW for off-grid and backup power.
Instant Selection & Quote Calculator
Select your specifications to get an estimated price instantly.
More options(4)
Certification
Reference prices are for estimation only and do not constitute a formal offer.
3 · Get this quote
We will reply with your latest quote instantly.
Related Engineering Calculators
Free sizing and pricing tools for this product category.
Application Scenarios
Off-Grid Solar
Converts battery DC to AC for homes and systems not connected to the grid.
Marine & RV
Runs appliances from the battery bank on boats, yachts and motorhomes.
Backup Power
Keeps essential loads running during outages from a battery source.
Telecommunications
Remote-site power for telecom and monitoring equipment.
Remote & Rural Areas
Reliable AC where grid power is unavailable or unreliable.
Mobile & Field Work
Portable AC for tools, lighting and equipment on work sites.
Technical Advantages
Pure Sine Wave
Clean output compatible with all sensitive electronics, motors and inductive loads.
High Efficiency
Conversion efficiency above 85% minimises battery drain.
Full Protection
Automatic overload, short-circuit, over-temperature and over-voltage shutdown.
Wide DC Input
12V/24V/36V/48V input options to match any battery bank.
FAQ - Inverters (DC-AC)
What is the difference between pure sine wave and modified sine wave?
What size inverter do I need?
Can it run inductive loads like motors?
What capacity and voltage range is available for Inverters (DC-AC)?
What is the minimum order quantity (MOQ) for Inverters (DC-AC)?
What is the delivery time for Inverters (DC-AC)?
Related Product Categories
Dry Type Transformers
Dry-type transformers are essential components in modern ele
Oil Immersed Transformers
Oil-immersed transformers are the workhorse of power distrib
Special Isolation Control Transformers
Isolation and control transformers provide galvanic separati
Amorphous Alloy Transformers
Amorphous alloy transformers are the lowest-loss choice for
Box Type Substations
Box-type substations, also known as prefabricated substation
Reactors
Reactors are inductive components that shape power quality b
Cable Branch Boxes
Cable branch boxes are sealed distribution points that split
Ring Main Units
Ring main units (RMUs) are compact, sealed switchgear that f
High Voltage Switchgear
High-voltage switchgear performs switching, protection, and
Low Voltage Switchgear
Low-voltage switchgear and motor control centers (MCCs) deli
Single Phase Transformers
Single-phase control transformers provide galvanic isolation
Three Phase Transformers
Three-phase dry-type transformers step down, isolate, or ada
Voltage Regulators
Automatic voltage regulators (stabilizers) keep output volta
Variable Transformers
Variable auto-transformers deliver continuous, stepless AC v
Dc Power Supplies
Switching DC power supplies convert AC mains into regulated
Battery Chargers
Intelligent battery chargers restore and maintain lead-acid
Motor Starters
Motor starters control three-phase motor energization with r
Ups
Online double-conversion UPS systems continuously regenerate
Power Capacitors
Self-healing power capacitors provide power factor correctio
Solar Pv Modules
Solar PV modules convert sunlight into direct current and ar
String Inverters
String grid-tie inverters turn the DC output of PV modules i
Hybrid Inverters
Hybrid solar inverters combine a grid-tie inverter and a bat
Energy Storage Batteries
Energy storage batteries store surplus solar or off-peak pow
Pcs Energy Storage
Power conversion systems (PCS) are the bidirectional heart o
Battery Management Systems
The battery management system is the safety and intelligence
Ess Fire Suppression
Fire suppression for energy storage must act in the seconds
Pv Mounting Structures
Mounting structures hold the array to the roof or ground for
Dc Cables Connectors Spd
The DC side of a PV plant is only as reliable as the cables,
Monitoring Scada Communication
A solar or storage plant that cannot be observed and control
Cables Trays Grounding
The AC side and the structural grounding of a plant are easy
Energy Storage Containers
The energy storage container packages battery, power convers
Busway
Busway (bus duct) systems distribute high-current power from
Ev Charging Stations
EV charging stations supply electric vehicles with AC Level
Pole Mounted Switchgear
Pole-mounted switchgear provides outdoor switching, protecti
Svg Svc
Static Var Generator (SVG) and Static Var Compensator (SVC)
Active Harmonic Filters
Active Harmonic Filters (APF), also called active power filt
Ats Transfer Switches
Automatic Transfer Switches (ATS) automatically transfer the
Diesel Generators
Diesel generator sets provide reliable prime or standby powe
Eps Emergency Power
EPS (Emergency Power Supply) systems provide battery-backed
Wind Turbines
QDTB onshore wind turbines span the 2 MW, 3 MW and 5 MW clas
Scada Automation
Substation SCADA and secondary automation equipment for MV/L
American Pad Mounted Transformers
American pad-mounted transformers (ZGS series) place a 12 kV
Need help?
All specifications and dimensions can be customized upon request
High-Frequency vs Low-Frequency vs Modified Sine Wave Inverter: How to Choose
| Pure Sine (High-Frequency) | Pure Sine (Low-Frequency) | Modified Sine Wave | |
|---|---|---|---|
| Output waveform | Clean sine wave matching grid power | Clean sine wave with a heavy transformer stage | Stepped square wave approximating a sine |
| Surge capability | Moderate surge, set by the switching stage | High surge, because the transformer carries it | Limited surge, and motors run hotter |
| Efficiency at light load | Higher, since the unit is small and light | Lower, because the transformer draws magnetising current | Highest on paper, but only for simple loads |
| Weight & size | Compact and light | Heavy, dominated by the transformer | Compact and light |
| Inductive loads | Runs motors and pumps, within the surge rating | Preferred choice for compressors and pumps | Motors run hot and may refuse to start |
| Sensitive electronics | Safe for instruments, IT and medical gear | Safe, and tolerant of dirty DC input | Can upset power supplies and audio equipment |
| Typical application | Solar systems, telecom and remote sites | Marine, backup power and motor-heavy loads | Simple resistive loads and tools |
Where QDTB® Inverters Are Specified
Inverters are specified where the load runs from a battery rather than the grid: off-grid solar systems, remote and rural sites, telecom cabinets and mobile or field work. A pure sine wave output is what lets the same inverter run a laptop supply, a pump and a measuring instrument without the load derating or overheating.
Marine and RV installations choose the low-frequency types where a compressor or a winch has to start on a battery bank, because the transformer stage carries the surge that the switching stage alone cannot. Backup power schemes use the same units to keep a defined load group alive while the mains is down.
Sizing starts from the running watts of everything the inverter will feed, plus the starting surge of the largest motor. The surge is what most often decides the rating, not the steady load, which is why a pump can drive the choice over a larger but gentler load.
The range spans 0.5 kVA to 30 kVA at 50/60 Hz with conversion efficiency above 85%. Automatic overload, short-circuit, over-temperature and over-voltage protection are built in so a stalled load does not take the inverter with it.
Frequently Asked Questions
What is the difference between pure sine wave and modified sine wave?
Pure sine wave matches grid power and runs everything, including motors and sensitive electronics. Modified sine wave is cheaper but can damage or fail to run some loads.
What size inverter do I need?
Sum the running watts of your loads plus the surge of the largest motor. Choose an inverter rated above the peak, typically 1.5-2x continuous load.
Can it run inductive loads like motors?
Yes. Pure sine wave inverters handle motor starting surges; allow for 3-5x running current at start-up.
What capacity and voltage range is available for Inverters (DC-AC)?
QDTB® supplies Inverters (DC-AC) from 0.5 to 30 kVA.
What is the minimum order quantity (MOQ) for Inverters (DC-AC)?
One unit for standard products. Custom-designed equipment is quoted on specifications — send your parameters or drawings and our sales team will confirm the MOQ for your configuration.
What is the delivery time for Inverters (DC-AC)?
Standard units are delivered in 30-45 days. Custom or large-capacity units follow a project-specific schedule confirmed at quotation. Rush orders can be accommodated for urgent projects.
