Pole-Mounted Switchgear
7 Series · 9 Models
Product Images
Images are for illustration purposes only
Pole-Mounted Switchgear Overview
Pole-mounted switchgear provides outdoor switching, protection and distribution automation on distribution poles. QDTB offers pole-mounted vacuum circuit breakers (ZW32 series) with integrated DTU/FTU, and primary-secondary fusion equipment (XGW/D-FGW/D-TBW) for smart-grid fault isolation, metering and remote control.
Available Series

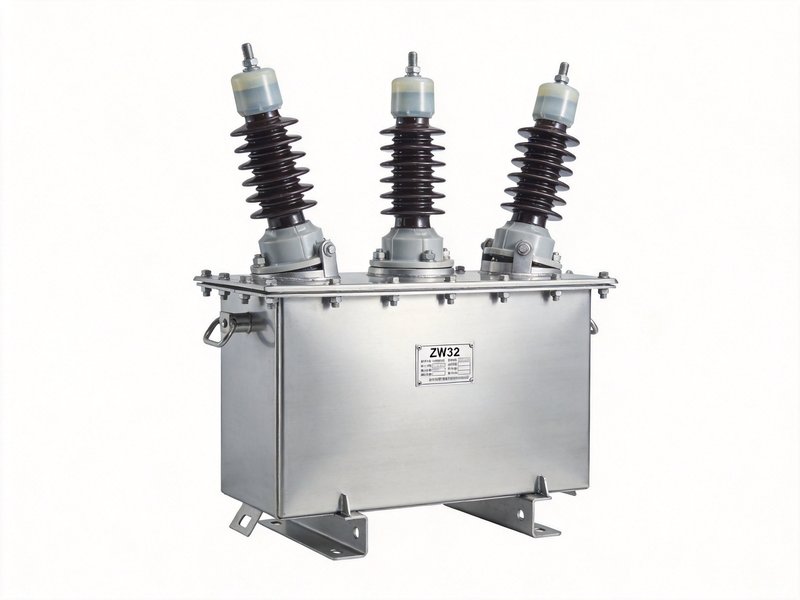

ZW32 Series
The ZW32 series outdoor vacuum circuit breakers feature integrated DTU terminals for smart distribution automation. Factory pre-commissioned plug-and-play design enables rapid deployment in overhead distribution networks with remote monitoring capability.

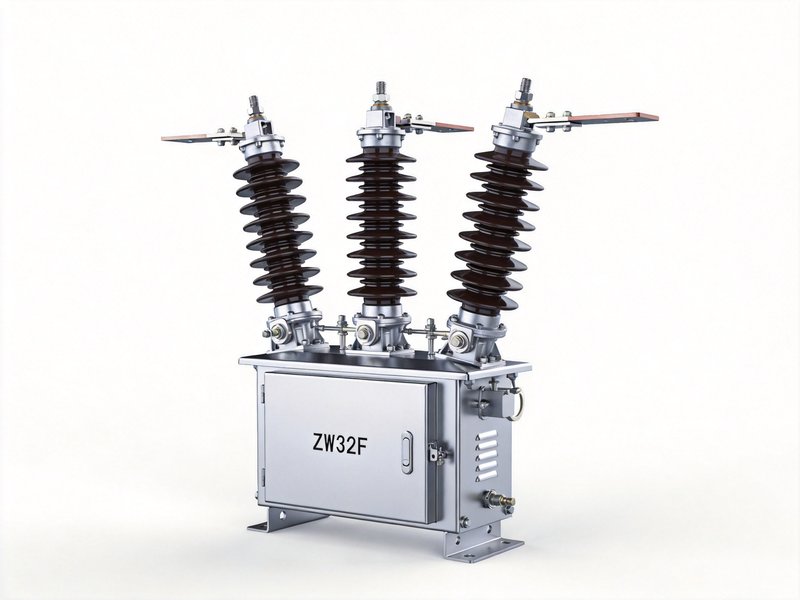

ZW32F Series
The ZW32F series outdoor vacuum circuit breakers with integrated FTU (Feeder Terminal Unit) provide intelligent protection and monitoring for distribution lines. Factory pre-commissioned design ensures plug-and-play installation for smart grid applications.

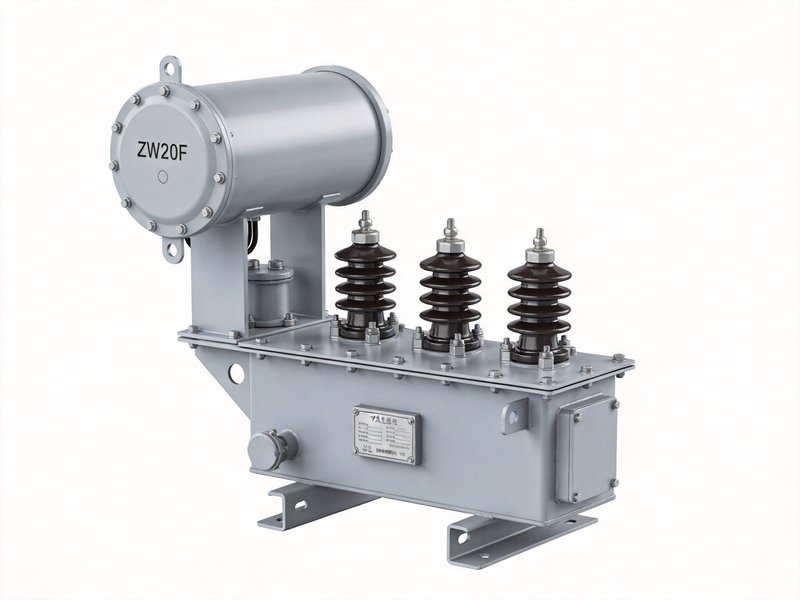

ZW20F Series
The ZW20F series outdoor vacuum circuit breakers with integrated FTU provide intelligent protection for medium voltage distribution lines. Features factory pre-commissioned plug-and-play design for rapid smart grid deployment.

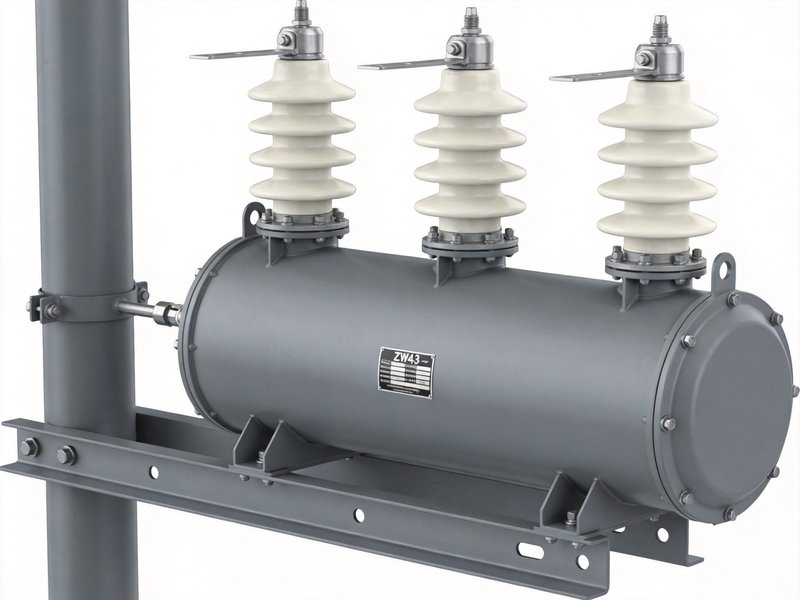

ZW43 Series
The ZW43 series outdoor vacuum circuit breakers with integrated FTU are designed for smart distribution networks. Factory pre-commissioned design with plug-and-play capability enables rapid deployment for distribution automation projects.

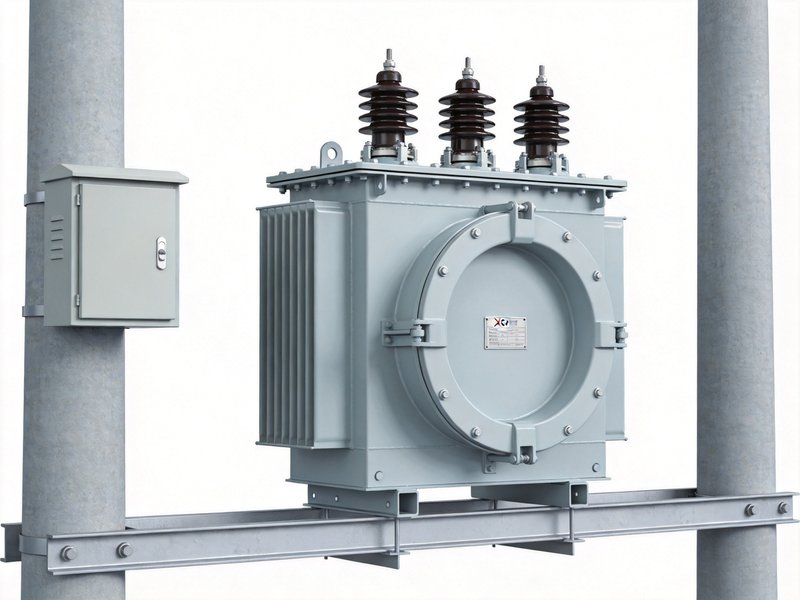

XGW Series
The XGW series integrated primary-secondary fusion equipment combines switchgear with DTU terminals for smart grid distribution automation. Provides protection, measurement, and communication in a single factory-tested unit for rapid deployment.
D-FGW Series
The D-FGW series integrated primary-secondary fusion equipment features FTU terminals with protection, measurement, and communication capabilities. Designed for smart grid distribution automation with factory pre-commissioned plug-and-play installation.

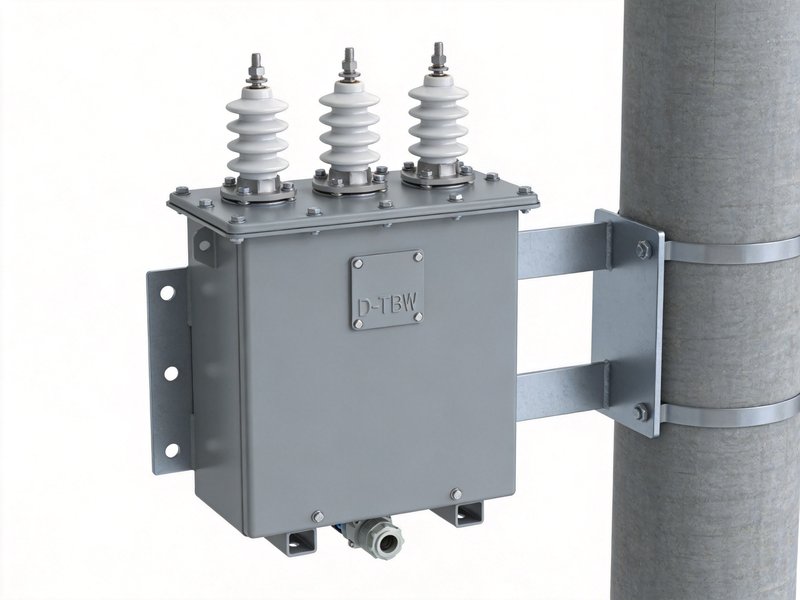

D-TBW Series
The D-TBW series integrated primary-secondary fusion equipment features DTU terminals for comprehensive distribution automation. Combines protection, measurement, and communication functions in a single factory-tested unit supporting both 12kV and 24kV networks.
Instant Selection & Quote Calculator
Select your specifications to get an estimated price instantly.
More options(3)
Certification
The values below are computed from what you selected above. Anything that cannot be computed yet is shown as an em dash — never as zero.
Iₙ = S / (√3·U) · I_sc = 100·Iₙ / uₖ · S_sc = √3·U·I_sc · I_p = k·Iₖ
Still required to complete the calculation: rated capacity S, impedance voltage uₖ, short-time or peak withstand current.
Per-model values (P0 / Pk / uₖ declared by the factory, losses, noise, temperature rise, dimensions, weight) are not in the product library: those rows stay at an em dash until the factory parameter sheet is supplied. An em dash means the value is unavailable — it is never rendered as zero.
Reference prices are for estimation only and do not constitute a formal offer.
3 · Get this quote
We will reply with your latest quote instantly.
Related Engineering Calculators
Free sizing and pricing tools for this product category.
Application Scenarios
Overhead Distribution Networks
Outdoor switching and protection on distribution poles.
Smart Grid Automation
Primary-secondary fusion for fault isolation and remote control.
Rural Electrification
Cost-effective pole-mounted protection for rural feeders.
Industrial & Renewable Plants
Outdoor feeder protection and automation.
Technical Advantages
Pole-Mounted VCB
ZW32 vacuum circuit breakers with integrated DTU/FTU protection and communication.
Primary-Secondary Fusion
XGW/D-FGW/D-TBW combine primary switching with secondary automation in one device.
Distribution Automation
Remote control, fault isolation and metering for smart-grid operation.
Outdoor Rated
Weatherproof enclosures for pole-top installation.
FAQ - Pole-Mounted Switchgear
What is pole-mounted switchgear?
What is primary-secondary fusion?
What voltage class is typical?
What is the minimum order quantity (MOQ) for Pole-Mounted Switchgear?
What is the delivery time for Pole-Mounted Switchgear?
Which standards and certifications do your Pole-Mounted Switchgear comply with?
Related Product Categories
