Battery Chargers Overview
Intelligent battery chargers restore and maintain lead-acid and lithium batteries using high-frequency switching and three-stage charging (constant current, absorption, and float) to extend service life. QDTB chargers span 10 A to 200 A with 12 V/24 V/36 V/48 V auto-detection, in KD (general), KC (premium), and KB (special) series, with over-voltage, over-temperature, short-circuit, and reverse-polarity protection for automotive, genset, marine, telecom, and UPS use.
Available Series

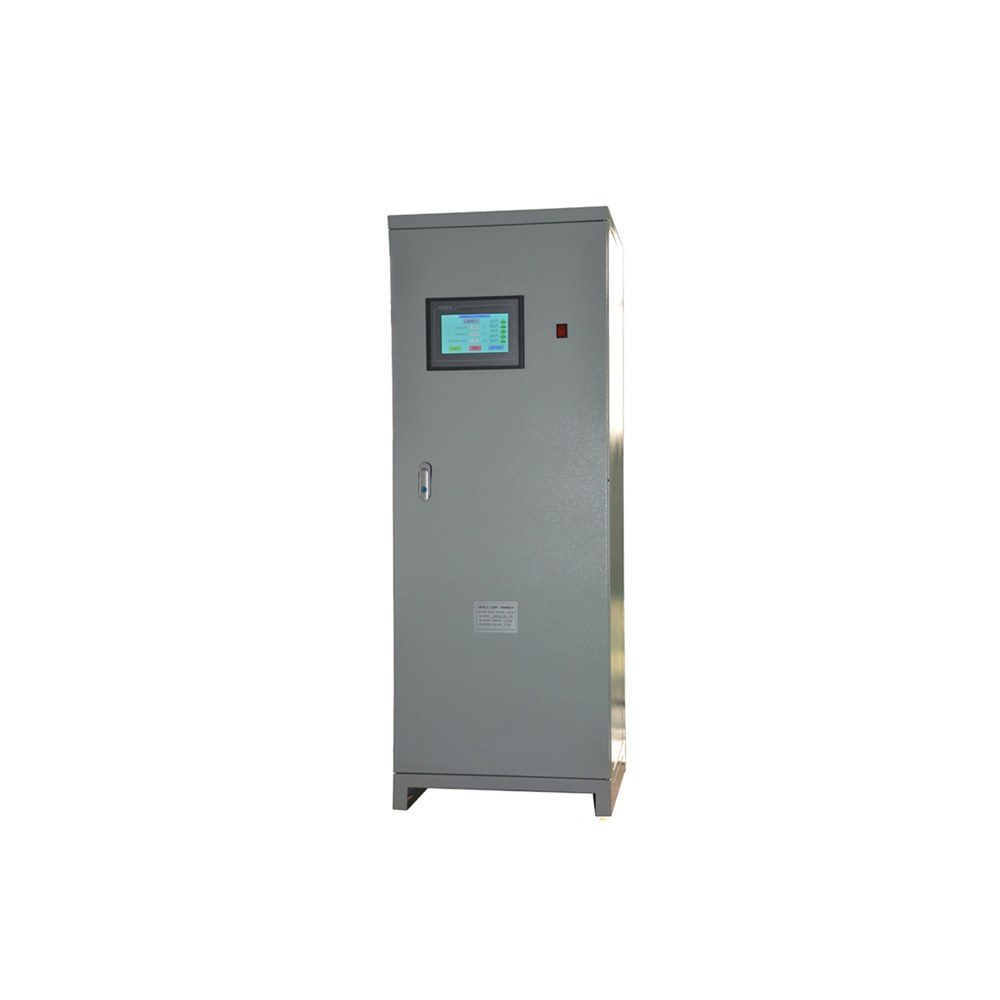

KD Series
The KD series intelligent battery chargers feature microprocessor-controlled three-stage charging (bulk, absorption, float) for lead-acid batteries in industrial and automotive applications.

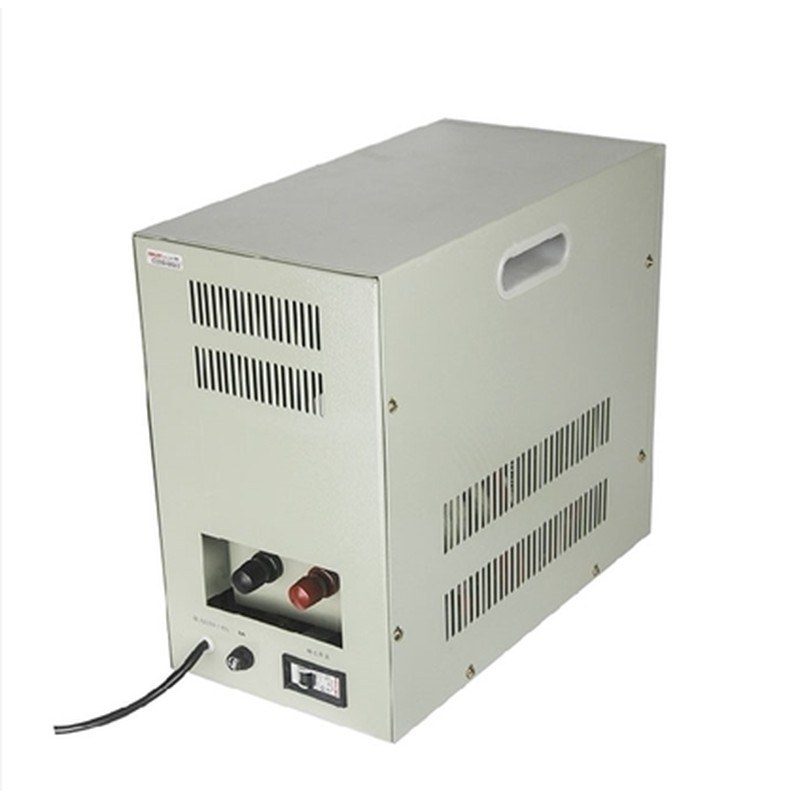

KC Series
The KC series industrial battery chargers are designed for heavy-duty charging of large battery banks in forklifts, mining vehicles, and UPS systems.

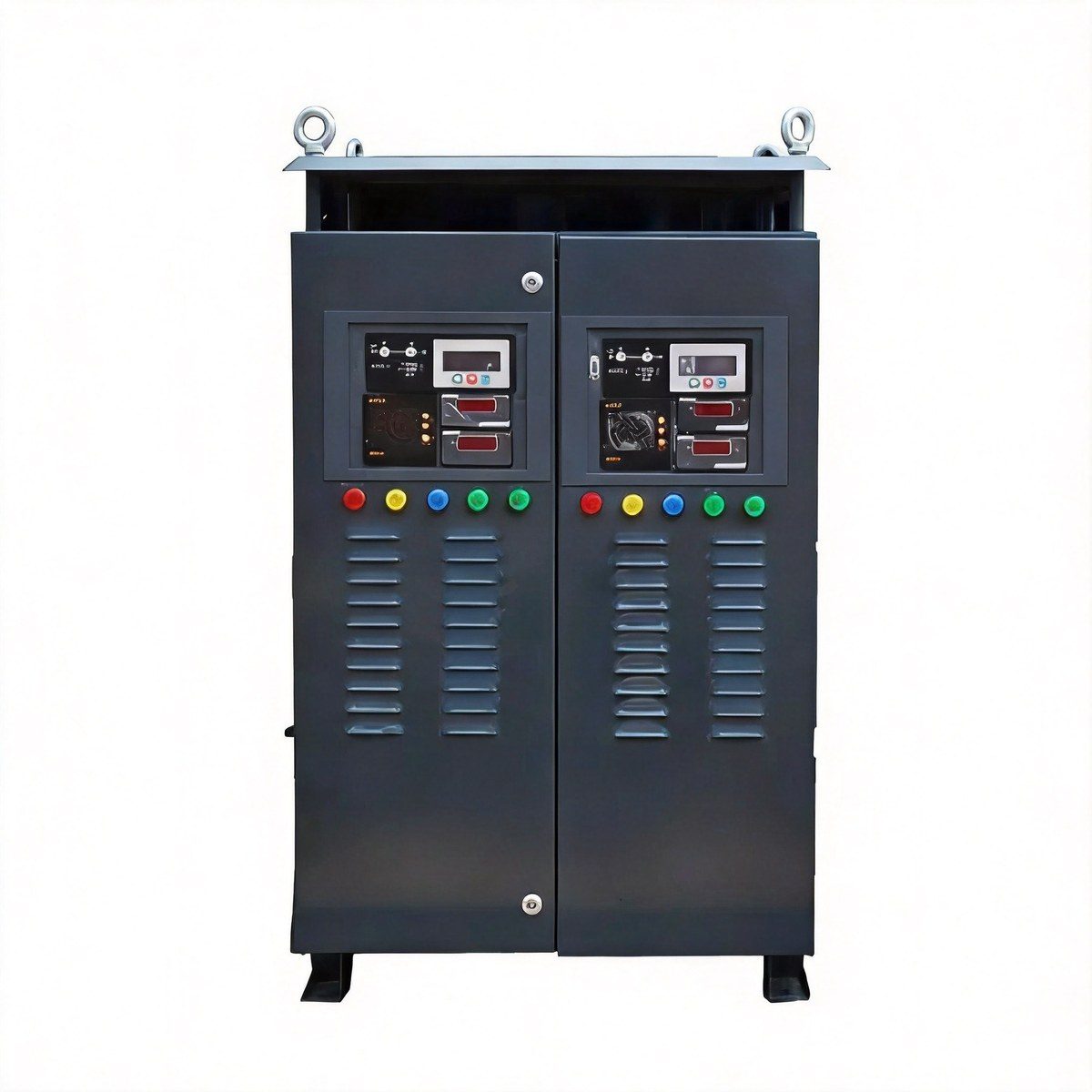

KB Series
The KB series high-frequency battery chargers use advanced high-frequency switching technology for compact size and high efficiency battery charging.
Traction Battery Chargers Series
Traction battery chargers charge deep-cycle lead-acid or lithium batteries for forklifts, pallet trucks, golf carts and industrial vehicles, using multi-stage charging curves for full charge and long battery life. Rated 24–96V DC with current control and equalization.
Instant Selection & Quote Calculator
Select your specifications to get an estimated price instantly.
More options(5)
Certification
Reference prices are for estimation only and do not constitute a formal offer.
3 · Get this quote
We will reply with your latest quote instantly.
Related Engineering Calculators
Free sizing and pricing tools for this product category.
Application Scenarios
Automotive & Repair
Charges and maintains lead-acid starter batteries in workshops and garages.
Generator Sets
Keeps genset starting batteries topped up and ready.
Marine & Vessels
Reliable charging for marine battery banks in harsh conditions.
Telecommunications
Maintains backup batteries at telecom sites.
UPS Systems
Charges and maintains the battery banks that back up UPS units.
Forklifts & EVs
High-current charging for industrial traction batteries.
Technical Advantages
3-Stage Charging
Constant current, absorption and float stages extend battery life.
Automatic Voltage Detection
Senses 12V/24V/36V/48V battery banks automatically.
Full Protection
Over-voltage, over-temperature, short-circuit and reverse-polarity protection.
Lithium Support
Configurable for both lead-acid and lithium battery chemistries.
FAQ - Battery Chargers
What is 3-stage charging?
What is the difference between lead-acid and lithium chargers?
What charging current should I choose?
What is the minimum order quantity (MOQ) for Battery Chargers?
What is the delivery time for Battery Chargers?
Which standards and certifications do your Battery Chargers comply with?
Related Product Categories
Dry Type Transformers
Dry-type transformers are essential components in modern ele
Oil Immersed Transformers
Oil-immersed transformers are the workhorse of power distrib
Special Isolation Control Transformers
Isolation and control transformers provide galvanic separati
Amorphous Alloy Transformers
Amorphous alloy transformers are the lowest-loss choice for
Box Type Substations
Box-type substations, also known as prefabricated substation
Reactors
Reactors are inductive components that shape power quality b
Cable Branch Boxes
Cable branch boxes are sealed distribution points that split
Ring Main Units
Ring main units (RMUs) are compact, sealed switchgear that f
High Voltage Switchgear
High-voltage switchgear performs switching, protection, and
Low Voltage Switchgear
Low-voltage switchgear and motor control centers (MCCs) deli
Single Phase Transformers
Single-phase control transformers provide galvanic isolation
Three Phase Transformers
Three-phase dry-type transformers step down, isolate, or ada
Voltage Regulators
Automatic voltage regulators (stabilizers) keep output volta
Variable Transformers
Variable auto-transformers deliver continuous, stepless AC v
Inverters
Pure sine wave inverters convert DC battery power (12 V/24 V
Dc Power Supplies
Switching DC power supplies convert AC mains into regulated
Motor Starters
Motor starters control three-phase motor energization with r
Ups
Online double-conversion UPS systems continuously regenerate
Power Capacitors
Self-healing power capacitors provide power factor correctio
Solar Pv Modules
Solar PV modules convert sunlight into direct current and ar
String Inverters
String grid-tie inverters turn the DC output of PV modules i
Hybrid Inverters
Hybrid solar inverters combine a grid-tie inverter and a bat
Energy Storage Batteries
Energy storage batteries store surplus solar or off-peak pow
Pcs Energy Storage
Power conversion systems (PCS) are the bidirectional heart o
Battery Management Systems
The battery management system is the safety and intelligence
Ess Fire Suppression
Fire suppression for energy storage must act in the seconds
Pv Mounting Structures
Mounting structures hold the array to the roof or ground for
Dc Cables Connectors Spd
The DC side of a PV plant is only as reliable as the cables,
Monitoring Scada Communication
A solar or storage plant that cannot be observed and control
Cables Trays Grounding
The AC side and the structural grounding of a plant are easy
Energy Storage Containers
The energy storage container packages battery, power convers
Busway
Busway (bus duct) systems distribute high-current power from
Ev Charging Stations
EV charging stations supply electric vehicles with AC Level
Pole Mounted Switchgear
Pole-mounted switchgear provides outdoor switching, protecti
Svg Svc
Static Var Generator (SVG) and Static Var Compensator (SVC)
Active Harmonic Filters
Active Harmonic Filters (APF), also called active power filt
Ats Transfer Switches
Automatic Transfer Switches (ATS) automatically transfer the
Diesel Generators
Diesel generator sets provide reliable prime or standby powe
Eps Emergency Power
EPS (Emergency Power Supply) systems provide battery-backed
Wind Turbines
QDTB onshore wind turbines span the 2 MW, 3 MW and 5 MW clas
Scada Automation
Substation SCADA and secondary automation equipment for MV/L
American Pad Mounted Transformers
American pad-mounted transformers (ZGS series) place a 12 kV
Need help?
All specifications and dimensions can be customized upon request
Smart 3-Stage vs Float vs Traction Charger: How to Choose
| Smart 3-Stage (KD/KC) | Float / Constant-Voltage | Traction Charger | |
|---|---|---|---|
| Charge profile | Constant current, absorption, then float | One constant voltage held indefinitely | Deep-cycle profile matched to the traction duty |
| Battery types | Lead-acid and lithium, with voltage auto-detection | Lead-acid standby banks | Traction and deep-cycle lead-acid packs |
| Effect on life | Reduces sulphation by finishing at float voltage | Keeps a standby bank ready but is slow to recharge | Designed for a full discharge and recharge each shift |
| Protection | Over-voltage, over-temperature, short circuit, reverse polarity | Depends on the model and the panel | Over-temperature and end-of-charge cut-off |
| Monitoring | Charging stage and fault indication on the front panel | Basic meters on larger units | State-of-charge indication for the operator |
| Sharing a panel | Rectifier and charger in one cabinet for substations | Common in telecom and UPS battery rooms | Charger and battery stay with the truck |
| Typical application | Gensets, marine, telecom and UPS batteries | Standby battery banks on float | Forklifts and electric vehicles |
Where QDTB® Battery Chargers Are Specified
Chargers are specified wherever a battery has to be brought back to full charge without being damaged in the process: genset starting batteries, substation and UPS battery banks, telecom sites and marine installations. The three-stage profile is what separates a charger that extends battery life from one that simply pushes current into the bank.
Automotive workshops and fleet operators use the same chargers for service batteries, where automatic voltage detection means one unit covers the common battery voltages on the shelf. Forklift and traction packs take the deep-cycle profile, because a full discharge each shift is normal duty rather than abuse.
The charging current is chosen from the battery capacity, with lead-acid normally charged at a modest fraction of its Ah rating. Reverse polarity, short circuit and over-temperature protection mean a mis-connected battery does not destroy the charger.
The range runs from 10 A to 200 A with 12 V to 48 V auto-detection. The KD, KC and KB series cover general, premium and special duties, with lithium support available on the smart models.
Frequently Asked Questions
What is 3-stage charging?
It charges at constant current, then holds absorption voltage, then drops to float to maintain charge without overcharging. This maximises battery life.
What is the difference between lead-acid and lithium chargers?
Lithium batteries need a different voltage profile and no float stage. QDTB chargers are configurable for both chemistries.
What charging current should I choose?
As a rule, charge lead-acid at 10-20% of the battery Ah rating. A 100Ah battery typically uses a 10-20A charger.
What is the minimum order quantity (MOQ) for Battery Chargers?
One unit for standard products. Custom-designed equipment is quoted on specifications — send your parameters or drawings and our sales team will confirm the MOQ for your configuration.
What is the delivery time for Battery Chargers?
Standard units are delivered in 30-45 days. Custom or large-capacity units follow a project-specific schedule confirmed at quotation. Rush orders can be accommodated for urgent projects.
Which standards and certifications do your Battery Chargers comply with?
Each unit is designed to the IEC, IEEE or GB standard your project specifies. All QDTB® equipment is ISO 9001 certified and CE marked, and the company operates ISO 9001, ISO 14001 and ISO 45001 management systems.
