EV Charging Stations Overview
EV charging stations supply electric vehicles with AC Level 2 charging (7–22 kW) or DC fast charging (30–360 kW). QDTB stations support Type 2 / GB/T / CCS / CHAdeMO connectors with OCPP communication, RFID and app authorization, and IP54 outdoor enclosures — integrating with solar PV and energy storage to reduce grid demand peaks.
Available Series

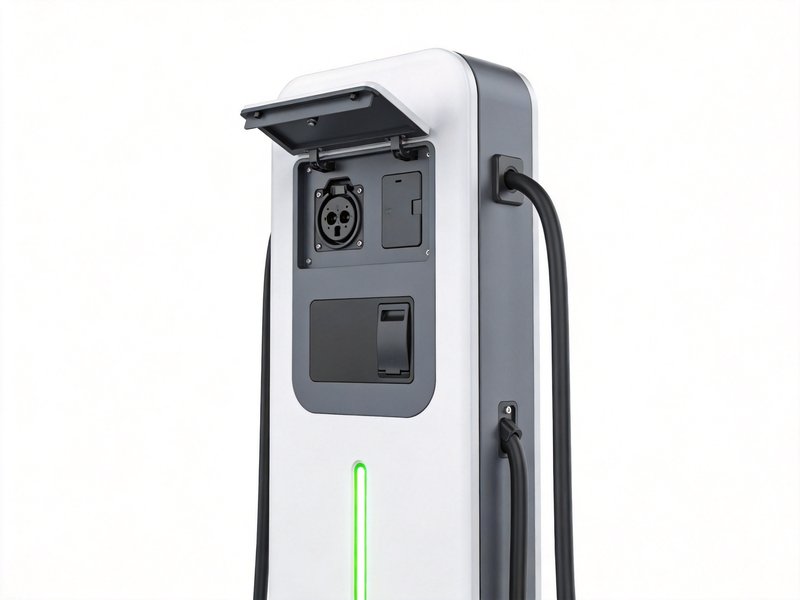

AC EV Charging Stations Series
AC EV charging stations (charging piles) provide Level 2 alternating-current charging for residential, workplace and commercial parking. Rated 7–22 kW, single-phase or three-phase input, with Type 2 / GB/T connectors, OCPP communication, RFID and mobile app authorization, and IP54/IK10 outdoor enclosures.

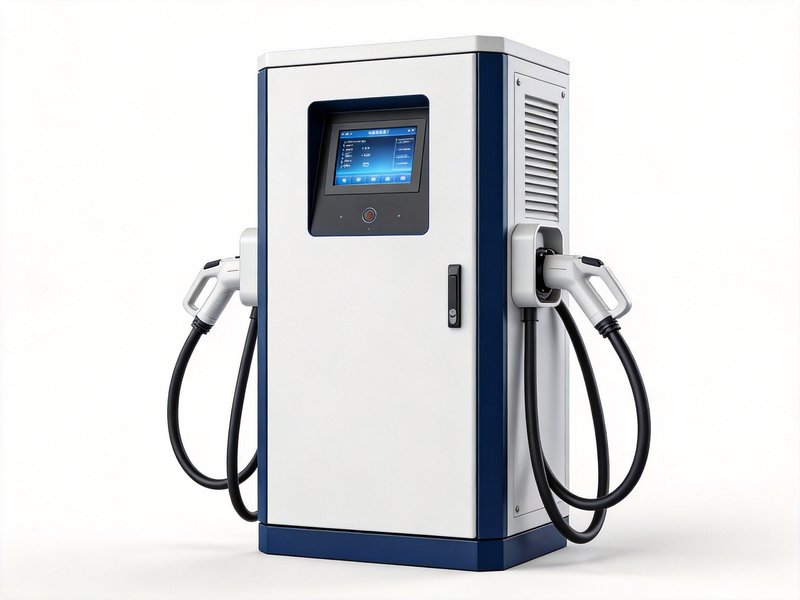

DC Fast Charging Stations Series
DC fast charging stations deliver direct-current power directly to the EV battery, bypassing the on-board charger for rapid charging. Rated 30–360 kW with CCS and CHAdeMO connectors, liquid-cooled cable options, modular power stacks, and OCPP management — integrated with solar PV and energy storage to reduce grid demand peaks.
Instant Selection & Quote Calculator
Select your specifications to get an estimated price instantly.
More options(6)
Certification
Reference prices are for estimation only and do not constitute a formal offer.
3 · Get this quote
We will reply with your latest quote instantly.
Related Engineering Calculators
Free sizing and pricing tools for this product category.
Application Scenarios
Residential & Workplace
AC Level 2 charging for home and office parking.
Public Fast Charging
DC fast chargers for highway and urban charging networks.
Fleet & Bus Depots
Managed DC charging for electric buses and delivery fleets.
Solar + Storage Hubs
Renewable-powered charging with peak demand shaving.
Technical Advantages
AC & DC Options
Level 2 AC (7–22 kW) and DC fast (30–360 kW) charging.
Multi-Standard Connectors
Type 2 / GB/T for AC, CCS / CHAdeMO for DC.
OCPP Management
OCPP 1.6J/2.0.1 for billing, monitoring and load management.
Solar & Storage Integration
Pairs with PV and battery storage to cap grid demand.
FAQ - EV Charging Stations
What is the difference between AC and DC charging?
What connectors are supported?
Can charging integrate with solar and storage?
What capacity and voltage range is available for EV Charging Stations?
What is the minimum order quantity (MOQ) for EV Charging Stations?
What is the delivery time for EV Charging Stations?
Related Product Categories
Dry Type Transformers
Dry-type transformers are essential components in modern ele
Oil Immersed Transformers
Oil-immersed transformers are the workhorse of power distrib
Special Isolation Control Transformers
Isolation and control transformers provide galvanic separati
Amorphous Alloy Transformers
Amorphous alloy transformers are the lowest-loss choice for
Box Type Substations
Box-type substations, also known as prefabricated substation
Reactors
Reactors are inductive components that shape power quality b
Cable Branch Boxes
Cable branch boxes are sealed distribution points that split
Ring Main Units
Ring main units (RMUs) are compact, sealed switchgear that f
High Voltage Switchgear
High-voltage switchgear performs switching, protection, and
Low Voltage Switchgear
Low-voltage switchgear and motor control centers (MCCs) deli
Single Phase Transformers
Single-phase control transformers provide galvanic isolation
Three Phase Transformers
Three-phase dry-type transformers step down, isolate, or ada
Voltage Regulators
Automatic voltage regulators (stabilizers) keep output volta
Variable Transformers
Variable auto-transformers deliver continuous, stepless AC v
Inverters
Pure sine wave inverters convert DC battery power (12 V/24 V
Dc Power Supplies
Switching DC power supplies convert AC mains into regulated
Battery Chargers
Intelligent battery chargers restore and maintain lead-acid
Motor Starters
Motor starters control three-phase motor energization with r
Ups
Online double-conversion UPS systems continuously regenerate
Power Capacitors
Self-healing power capacitors provide power factor correctio
Solar Pv Modules
Solar PV modules convert sunlight into direct current and ar
String Inverters
String grid-tie inverters turn the DC output of PV modules i
Hybrid Inverters
Hybrid solar inverters combine a grid-tie inverter and a bat
Energy Storage Batteries
Energy storage batteries store surplus solar or off-peak pow
Pcs Energy Storage
Power conversion systems (PCS) are the bidirectional heart o
Battery Management Systems
The battery management system is the safety and intelligence
Ess Fire Suppression
Fire suppression for energy storage must act in the seconds
Pv Mounting Structures
Mounting structures hold the array to the roof or ground for
Dc Cables Connectors Spd
The DC side of a PV plant is only as reliable as the cables,
Monitoring Scada Communication
A solar or storage plant that cannot be observed and control
Cables Trays Grounding
The AC side and the structural grounding of a plant are easy
Energy Storage Containers
The energy storage container packages battery, power convers
Busway
Busway (bus duct) systems distribute high-current power from
Pole Mounted Switchgear
Pole-mounted switchgear provides outdoor switching, protecti
Svg Svc
Static Var Generator (SVG) and Static Var Compensator (SVC)
Active Harmonic Filters
Active Harmonic Filters (APF), also called active power filt
Ats Transfer Switches
Automatic Transfer Switches (ATS) automatically transfer the
Diesel Generators
Diesel generator sets provide reliable prime or standby powe
Eps Emergency Power
EPS (Emergency Power Supply) systems provide battery-backed
Wind Turbines
QDTB onshore wind turbines span the 2 MW, 3 MW and 5 MW clas
Scada Automation
Substation SCADA and secondary automation equipment for MV/L
American Pad Mounted Transformers
American pad-mounted transformers (ZGS series) place a 12 kV
Need help?
All specifications and dimensions can be customized upon request
Level 2 AC Charger vs DC Fast vs Solar-Storage Hub: How to Choose
| Level 2 AC Charger | DC Fast Charger | Solar + Storage Hub | |
|---|---|---|---|
| Power path | AC feeds the vehicle's on-board charger | AC is rectified inside the charger and fed to the pack | PV and battery buffer the grid demand |
| Connector | Type 2 or GB/T AC | CCS, CHAdeMO or GB/T DC | Either, depending on the units installed |
| Dwell time | Suits hours-long parking | Suits a short stop on a corridor | Suits sites where the grid connection is the limit |
| Grid impact | Low per unit, and easy to spread across phases | High per unit, since the demand is concentrated | Smoothed by the battery, with a smaller connection |
| Installation cost | Lowest per point | Highest, including the supply upgrade | Highest overall, but avoids a supply upgrade |
| Management | OCPP and RFID, with load balancing across points | OCPP with remote diagnostics | OCPP plus energy management across PV, battery and chargers |
| Typical application | Workplace, residential and fleet depots | Public corridors and highway stops | Sites with a weak grid or a demand cap |
Where QDTB® EV Charging Stations Are Specified
Charging stations are specified from the parking pattern rather than from the charger alone. Workplace and residential car parks where vehicles stand for hours take AC Level 2 points, while public corridors and highway stops need DC fast charging to keep the turnover acceptable.
Fleet and bus depots sit between the two — the vehicles return on a schedule, so overnight AC charging plus a few DC points covers the duty with the smallest grid connection. That mix is normally set by the depot's own operating timetable, not by the charger catalogue.
Solar and storage hubs are specified where the site's grid connection cannot carry the charging demand: the battery buffers the peak while the PV offsets the energy, so the chargers see a flat load instead of a spike. OCPP management ties the chargers into the same energy management system as the PV and battery.
The range spans 7 kW to 360 kW across AC and DC units with Type 2, GB/T, CCS and CHAdeMO connectors and IP54 outdoor enclosures. Certification follows IEC 61851-1 for the AC path and IEC 61851-23 for the DC path respectively.
Frequently Asked Questions
What is the difference between AC and DC charging?
AC (Level 2) supplies alternating current to the vehicle's on-board charger (7–22 kW); DC fast charging converts to DC and charges the battery directly (30–360 kW) for much faster charging.
What connectors are supported?
Type 2 / GB/T for AC and CCS / CHAdeMO for DC, selected per regional market.
Can charging integrate with solar and storage?
Yes, chargers paired with solar PV and battery storage charge from renewable energy and shave peak grid demand.
What capacity and voltage range is available for EV Charging Stations?
QDTB® supplies EV Charging Stations from 7 to 360 kW.
What is the minimum order quantity (MOQ) for EV Charging Stations?
One unit for standard products. Custom-designed equipment is quoted on specifications — send your parameters or drawings and our sales team will confirm the MOQ for your configuration.
What is the delivery time for EV Charging Stations?
Standard units are delivered in 30-45 days. Custom or large-capacity units follow a project-specific schedule confirmed at quotation. Rush orders can be accommodated for urgent projects.
