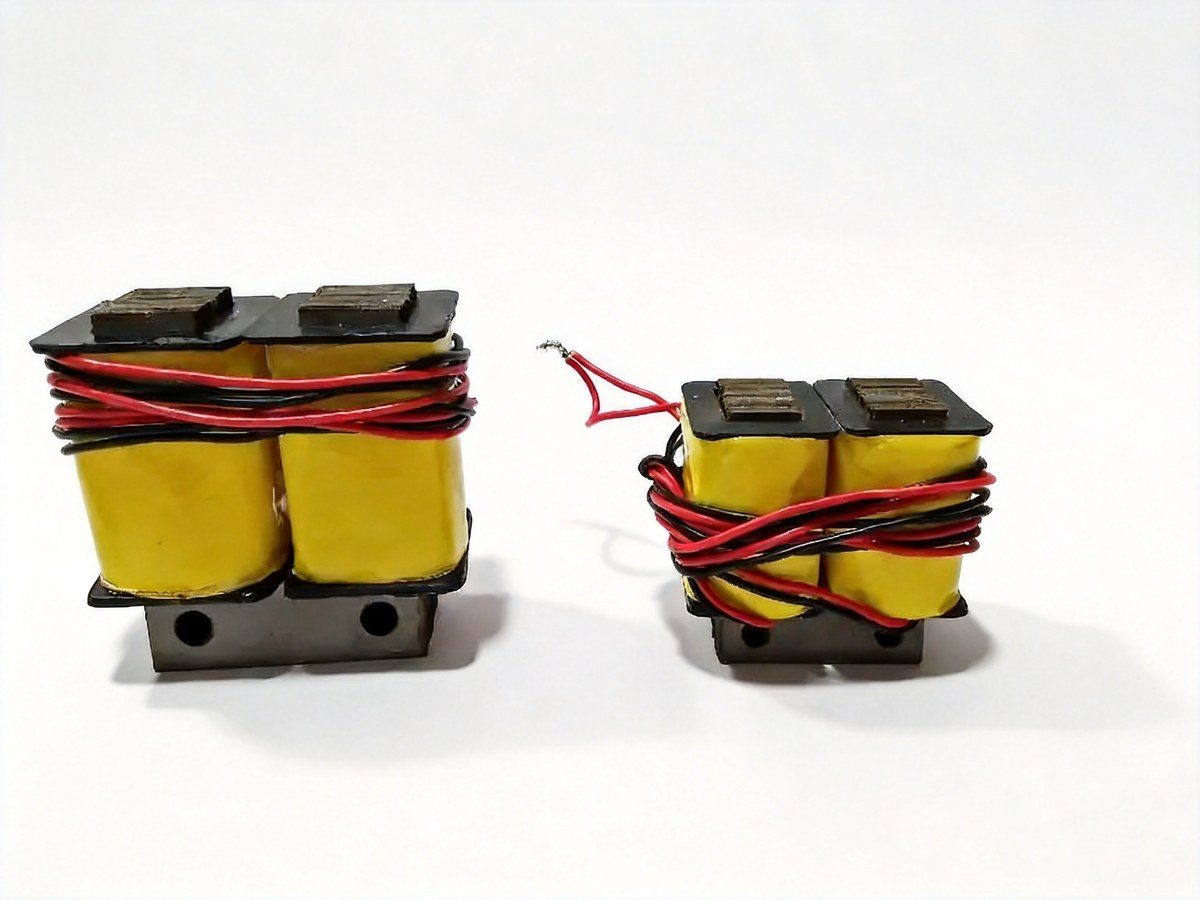

VEM Series - Pulse Transformers for Vibration and Electromagnetic Equipment
The VEM series pulse transformers deliver controlled pulse energy for vibration and electromagnetic applications, including electromagnetic exciters and pulsed power systems. Dry-type construction with Class F insulation provides reliable pulse performance.
Model Number Breakdown
Key Features
- Controlled pulse energy delivery
- Suitable for electromagnetic exciters
- Class F insulation, dry-type construction
- Reliable pulsed power performance
Applications
- Electromagnetic vibration exciters
- Pulsed power systems
- Vibration testing equipment
- Electromagnetic actuators
TECHNICAL DRAWING
Model: VEM-300 | Type: Oil-immersed transformer | Capacity: 300 kVA
FRONT ELEVATION
ELECTRICAL SCHEMATIC
EFFICIENCY vs LOAD
SIDE VIEW
TOP VIEW
TERMINAL BLOCK
CORE & WINDING
LEGEND:
Specifications Range
All specifications and dimensions can be customized upon request
Model Selector
| Key parameters | Model Range |
|---|---|
| Capacity | 150–400 kVA |
| HV Voltage (kV) | 0.38 |
| LV Voltage (kV) | 0.38 |
| Frequency (Hz) | 50 |
| Impedance (%) | 10 |
| Cooling | AN |
| Standard | GB/T 1094, IEC 60076 |
| No-load loss | 3000–8000 W |
| Load loss | 6000–16000 W |
| Compare | Model | Series | Capacity (kVA) | HV Voltage (kV) | LV Voltage (kV) | Frequency (Hz) | Reactance | Cooling | Standard | Weight | Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VEM-400 | Vibration-EM | 400kVA | 0.38 | 0.38 | 50 | 10 | AN | GB/T 1094, IEC 60076 | 1100 kg | 800×660×800 mm | |
| VEM-350 | Vibration-EM | 350kVA | 0.38 | 0.38 | 50 | 10 | AN | GB/T 1094, IEC 60076 | 980 kg | 770×635×770 mm | |
| VEM-250 | Vibration-EM | 250kVA | 0.38 | 0.38 | 50 | 10 | AN | GB/T 1094, IEC 60076 | 750 kg | 700×580×700 mm | |
| VEM-300 | Vibration-EM | 300kVA | 0.38 | 0.38 | 50 | 10 | AN | GB/T 1094, IEC 60076 | 865 kg | 740×610×740 mm | |
| VEM-150 | Vibration-EM | 150kVA | 0.38 | 0.38 | 50 | 10 | AN | GB/T 1094, IEC 60076 | 490 kg | 590×495×590 mm | |
| VEM-200 | Vibration-EM | 200kVA | 0.38 | 0.38 | 50 | 10 | AN | GB/T 1094, IEC 60076 | 620 kg | 650×540×650 mm |
